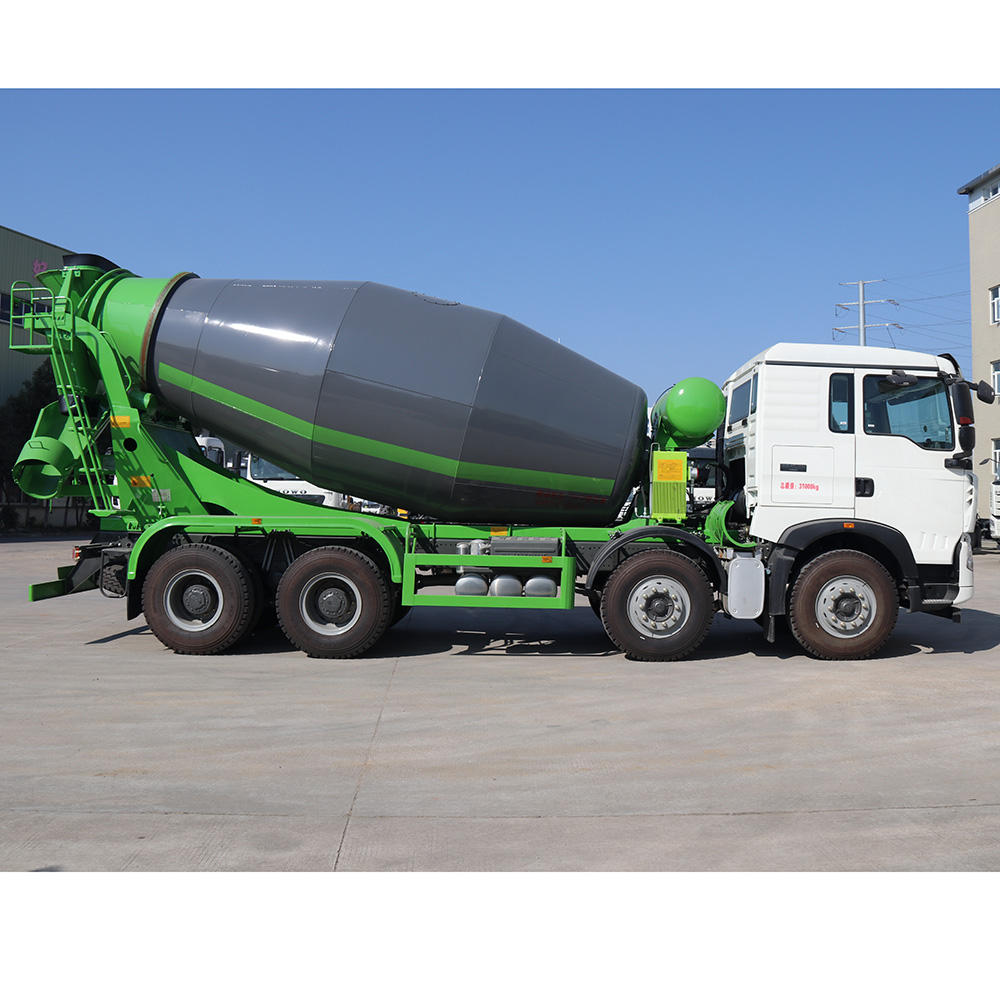

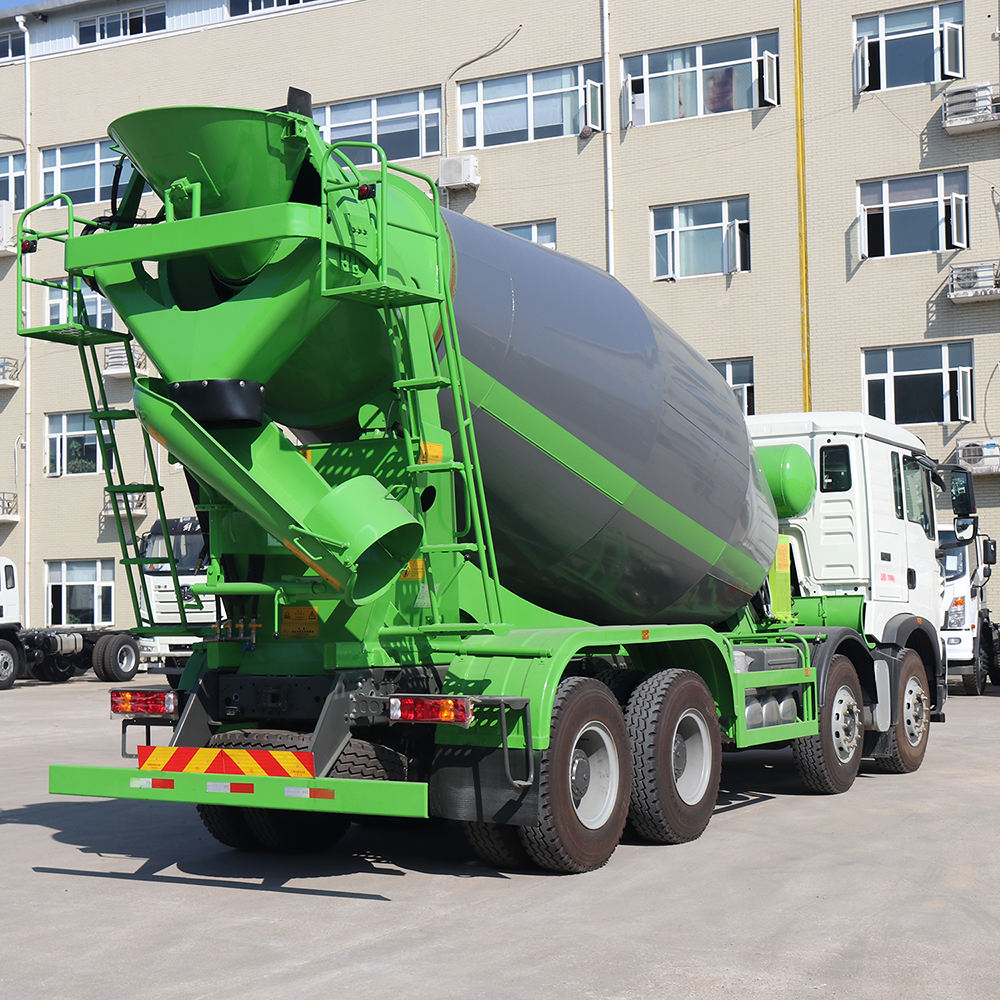

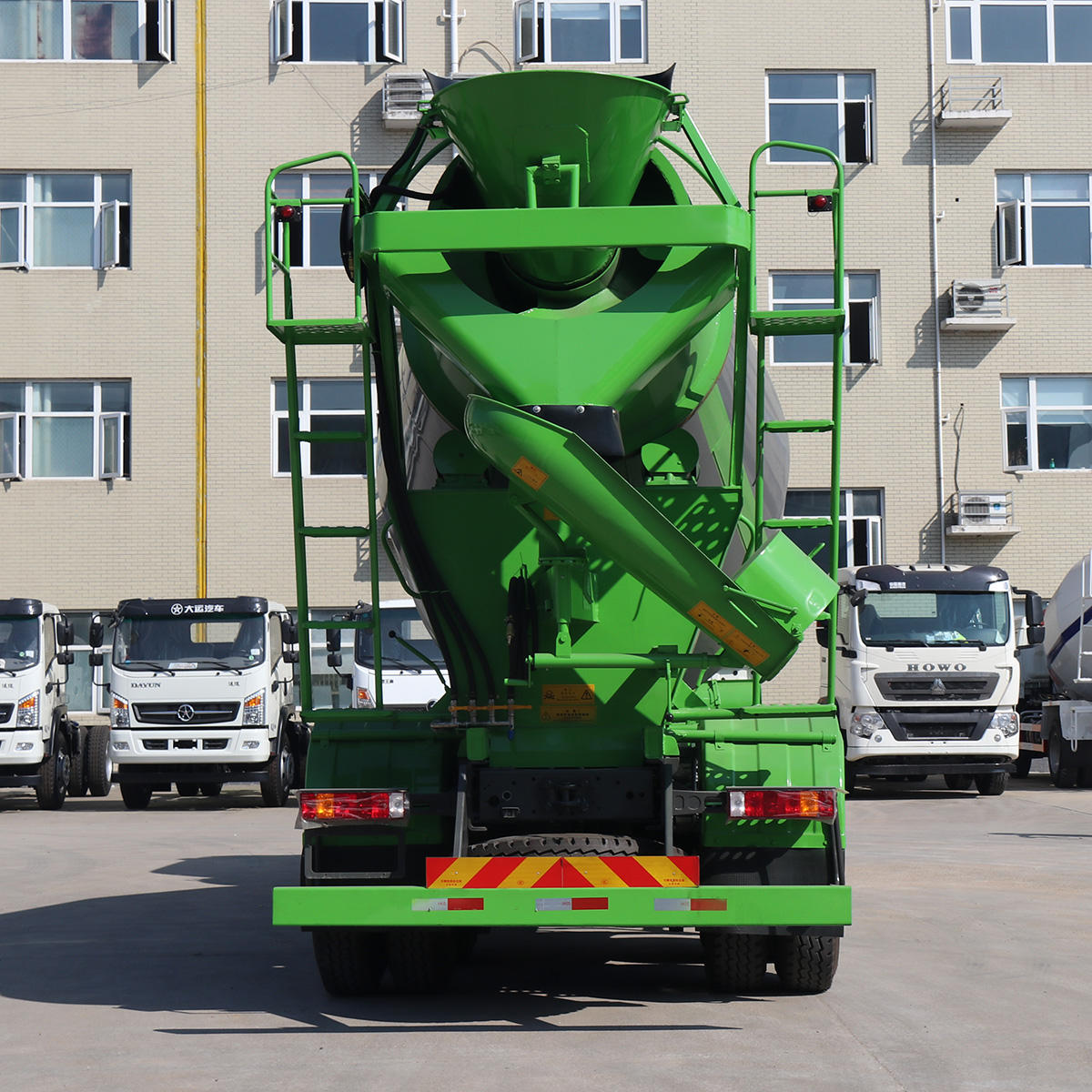

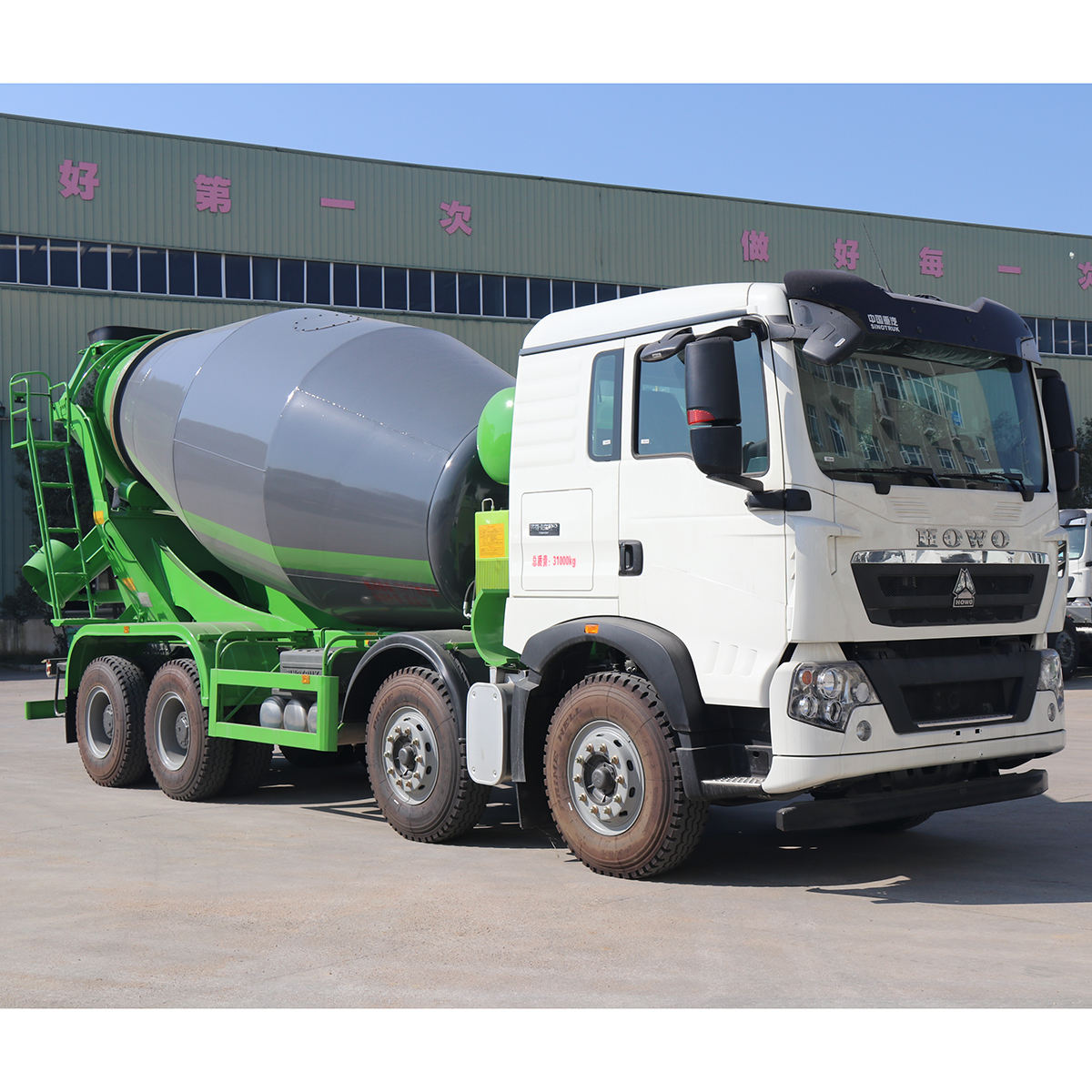

SINOTRUK 12m³ Concrete Mixer Truck Truck Concrete Pump Truck Mixer Concrete Mixer China

Inquiry now
Vehicle Parameters
Vehicle Model
EHY5310GJBZ
Vehicle Brand
HUAYI
Overall dimensions
10350×2500×3998mm
Curb weight
14500kg
Loading capacity
14m3
Color
optional
Chassis Parameters
Chassis model
ZZ1317N306GE1
Chassis brand
HOWO
Overall dimensions
8955×2496×3035mm
Wheel base
1800+3050+1350mm
Front/rear wheel track
2020/2020/1860/1860mm
Front/rear suspension
1460/1250mm
Approach/departure angle
18.5/41°
Maximum speed
85km/h
Cab
Configuration
HOWO T5G cab, ABS, air conditioner
Color
White, other color is optional
Engine
Model
MC07.34-50
Emission
Euro 5
Type
6 cylinders, in-line, 4-stroke, water-cooled, turbo inter-cooling, direct injection, exhaust valve brake,diesel engine
Rated power
340hp,rated power speed 2300rpm
Displacement
6870ml
Max.torque
1250N.m
Bore x stroke
108x125mm
Manufacturer
China National Heavy Duty Truck Group Co.,Ltd
Tire
11.00R20 steel wire tire
12+1 nos
Transmission
HW13710L, 10 speed forward 2 reverse
Steering device
Power assisted steering ZF8198
Steering wheel
Left hand drive
Concrete Mixer Structure  Parameters
Mixing capacity(m³)
12
Color and Logo
Optional
Feeding speed (m³/min)
≥5
Discharge speed(m³/min)
≥3
Discharge residual rate
≤0.5%
Slump scope(mm)
50-210
Water tank capacity(L)
300
Water pressure(Mpa)
0.35-0.38
Tank material
6mm alloy steel
Tank front head
8mm alloy steel
Reducer
Italy Bonfiglioli
Hydraulic motor
Germany REXROTH
Hydraulic pump
Germany REXROTH
Radiator
KAIPENG
Standard Configuration
chassis,sub frame,mixer tank,reducer, hydraulic pump,hydraulic motor, radiator,water tank,cleaning hose,feed port, discharge port,climbing ladder,air pressure water supply device.
Italy Bonfiglioli reducer,Germany REXROTH hydraulic pump,Germany REXROTH hydraulic motor,KAIPENG radiator,mixer tank(main tank 6mm alloy steel wear resistant material,front tank head 8mm alloy steel wear resistant material)
