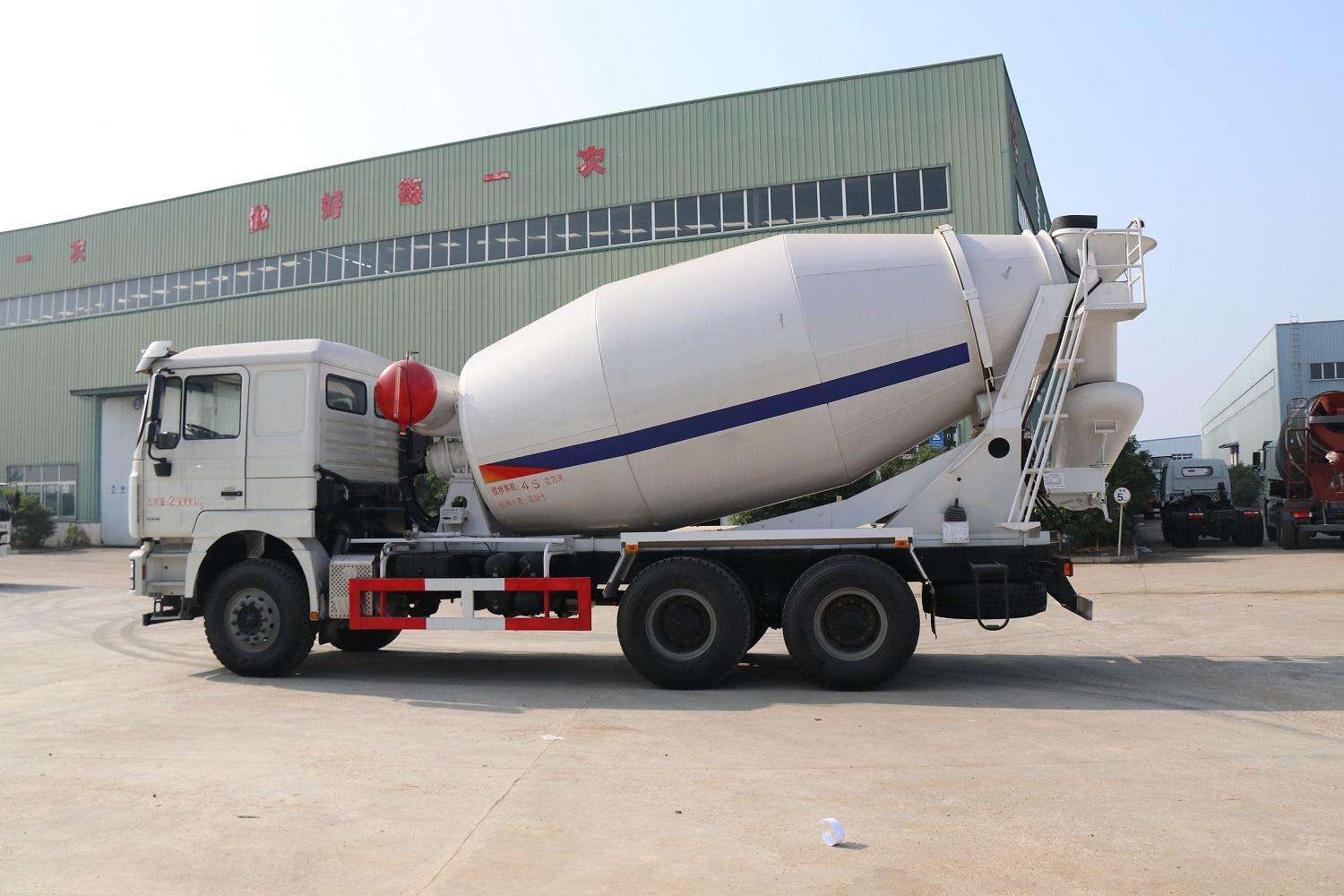

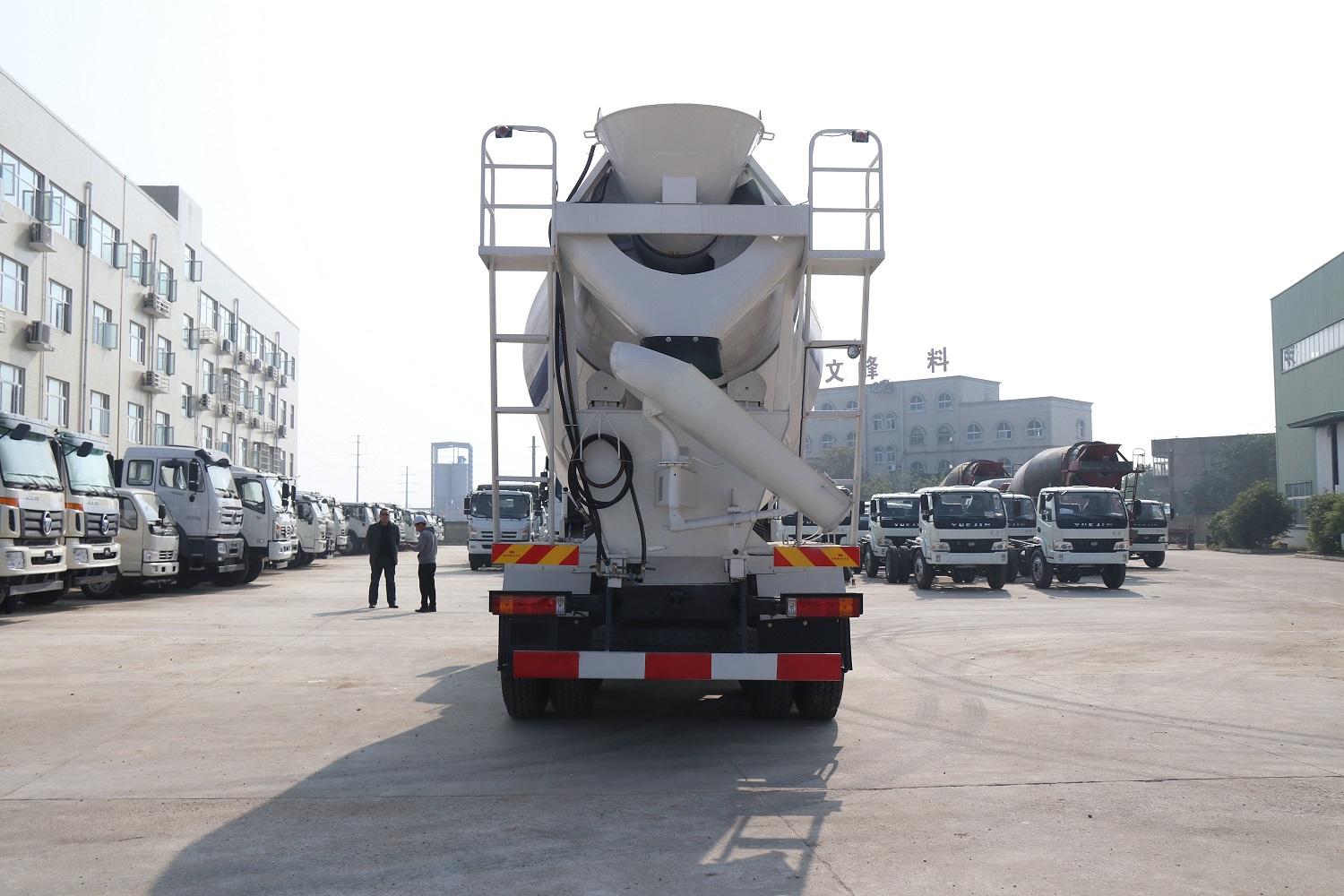

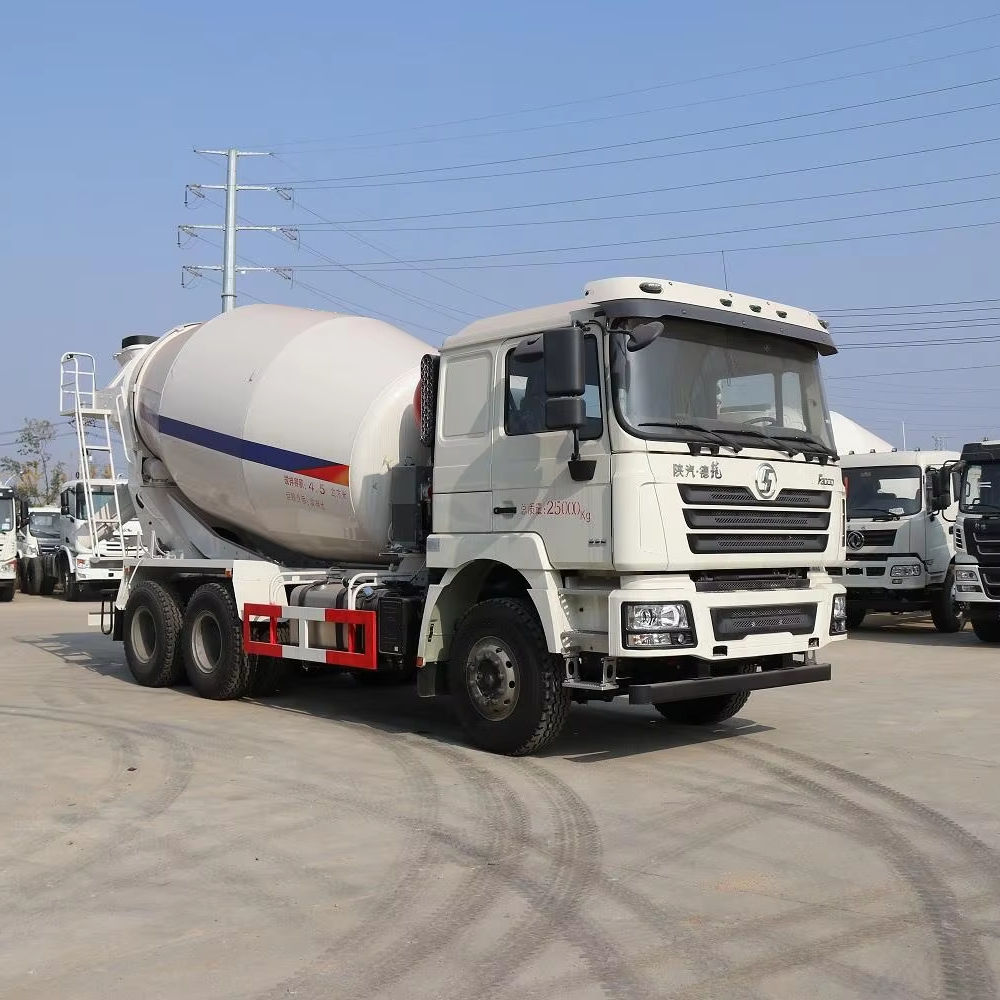

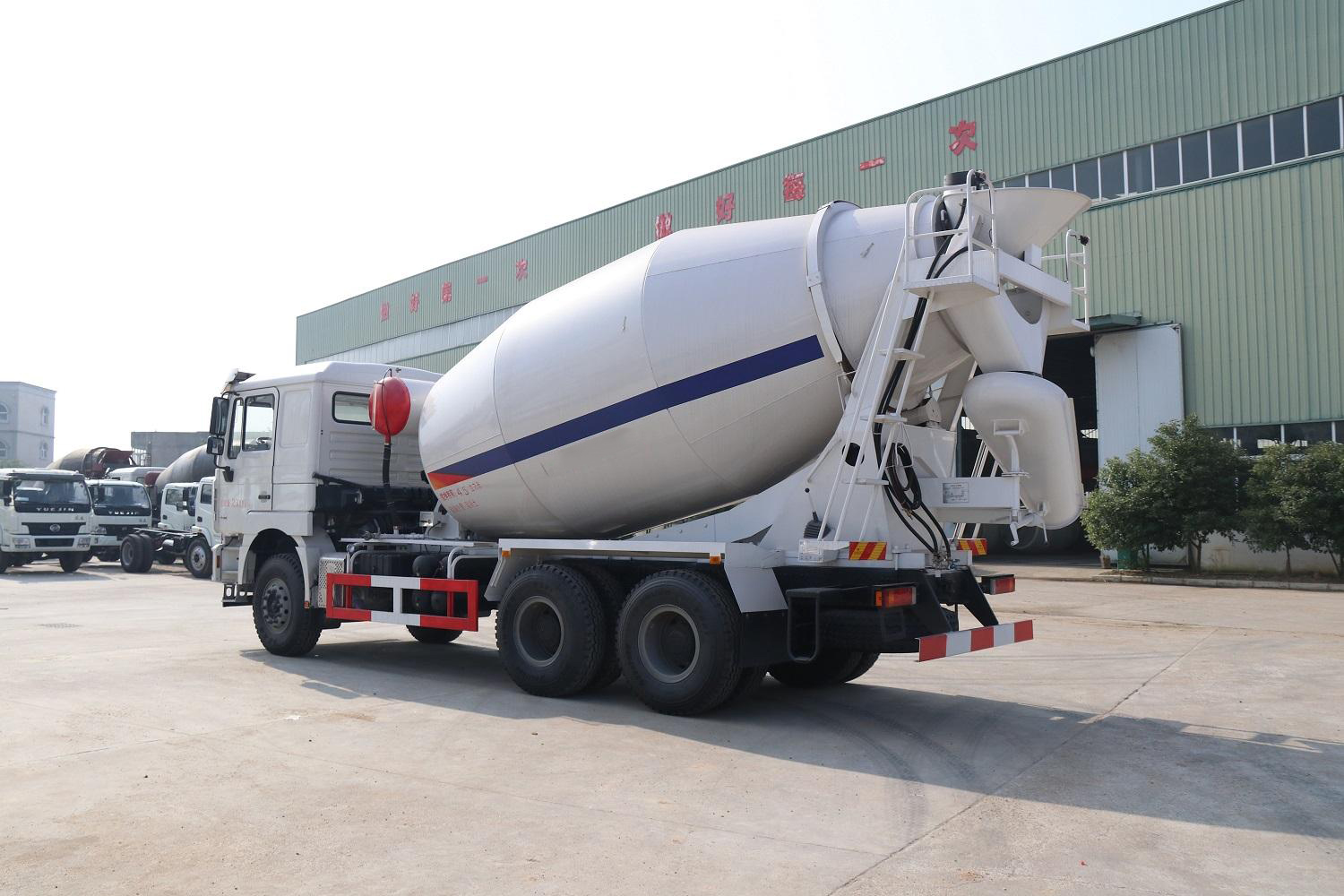

SHACMAN 6X4 Diesel Engine Concrete Cement Mixer Truck

Inquiry now
Vehicle Parameters
Vehicle Model
EHY5250GJBA
Vehicle Brand

Overall dimensions
8100X2500X3750mm
Curb weight
12300kg
Loading capacity
10m3
Color
optional
Chassis Parameters
Chassis model
DFL5250GJBA
Chassis brand
DONGFENG
Overall dimensions
8090x2500x3030mm
Wheel base
3800+1350mm
Cab
D310 Sleeper cab, forward control type, low roof, new face, all welded steel cab of tilt type, mechanical cab tilting, rear mechanical cab suspension , adjustable driver’s seat, air conditioning system
Engine
Dongfeng Cummins L375 30
Horse power
375hp
Emission
Euro 3
Displacement
8900ml
Tire
315/80R22.5
Transmission
9JS150T-B DD
9 forward & 1 reverse
Steering device
Power assisted steering
Steering wheel
Left hand drive
Concrete Mixer Structure  Parameters
Mixing capacity(m³)
10
Color and Logo
Optional
Feeding speed (m³/min)
≥5
Discharge speed(m³/min)
≥3
Discharge residual rate
≤0.5%
Slump scope(mm)
50-210
Water tank capacity(L)
300
Water pressure(Mpa)
0.35-0.38
Tank material
5mm alloy steel
Tank front head
8mm alloy steel
Standard Configuration
chassis, sub frame, mixer tank, reducer, hydraulic pump, hydraulic motor, radiator, water tank, cleaning hose, feed port, discharge port, climbing ladder, air pressure water supply device.
