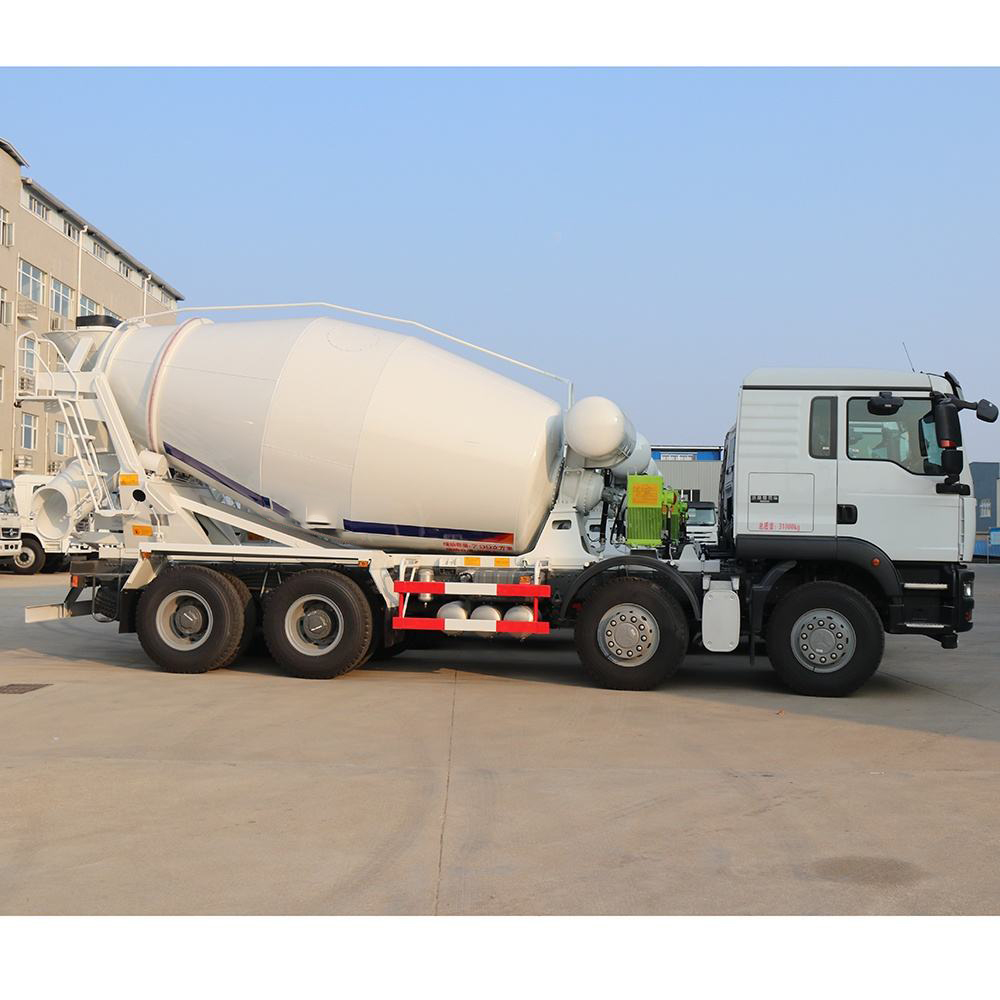

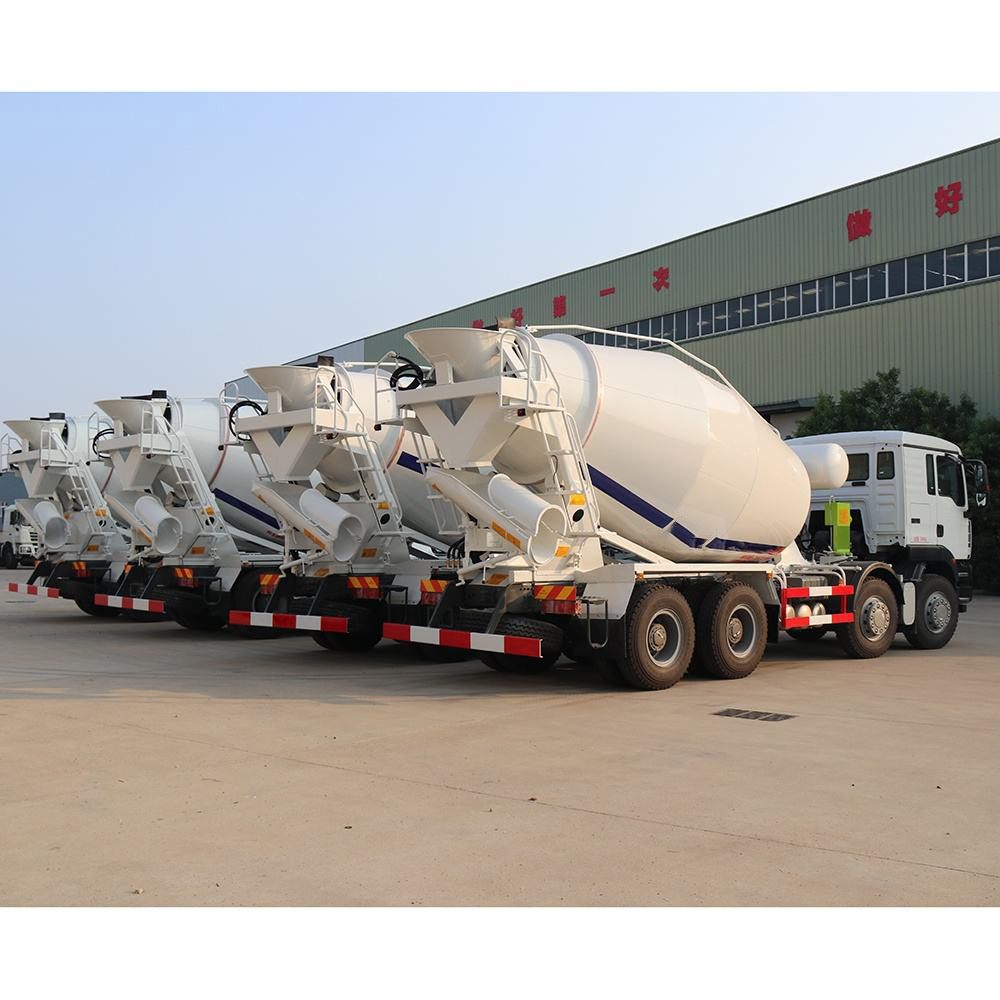

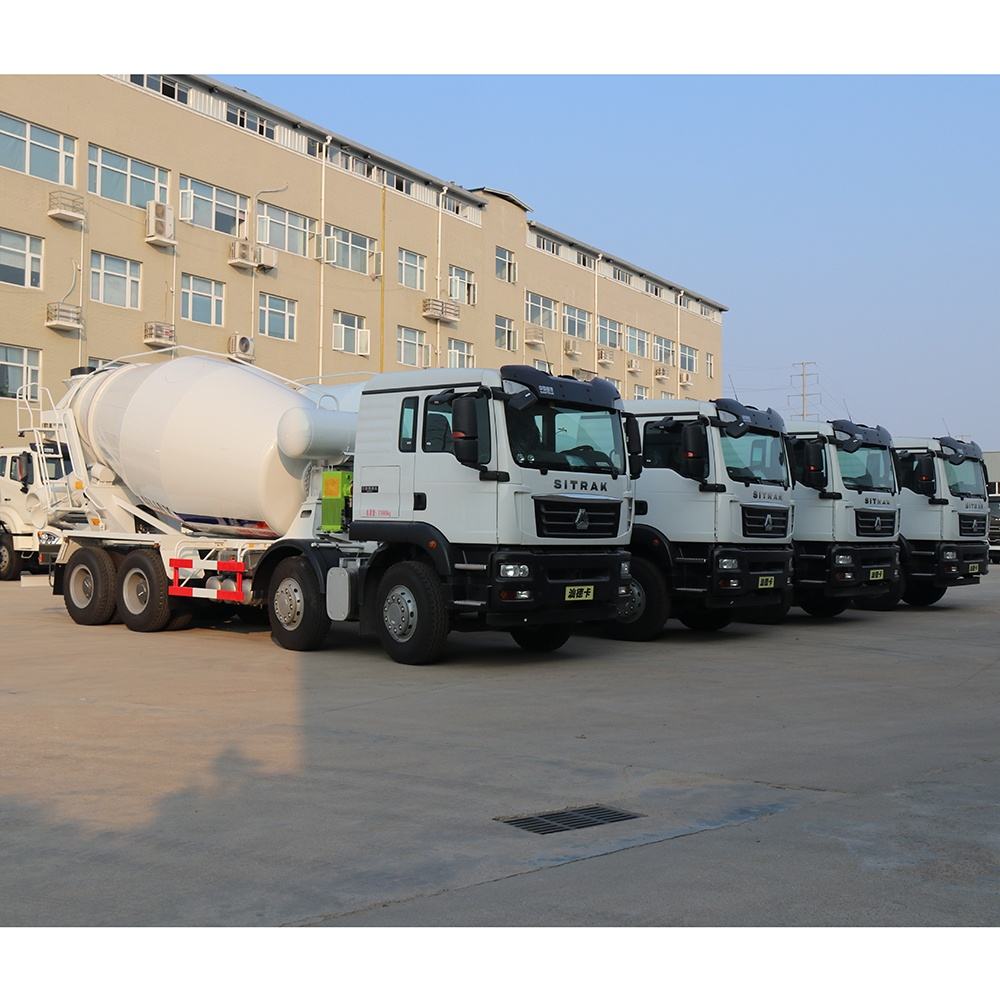

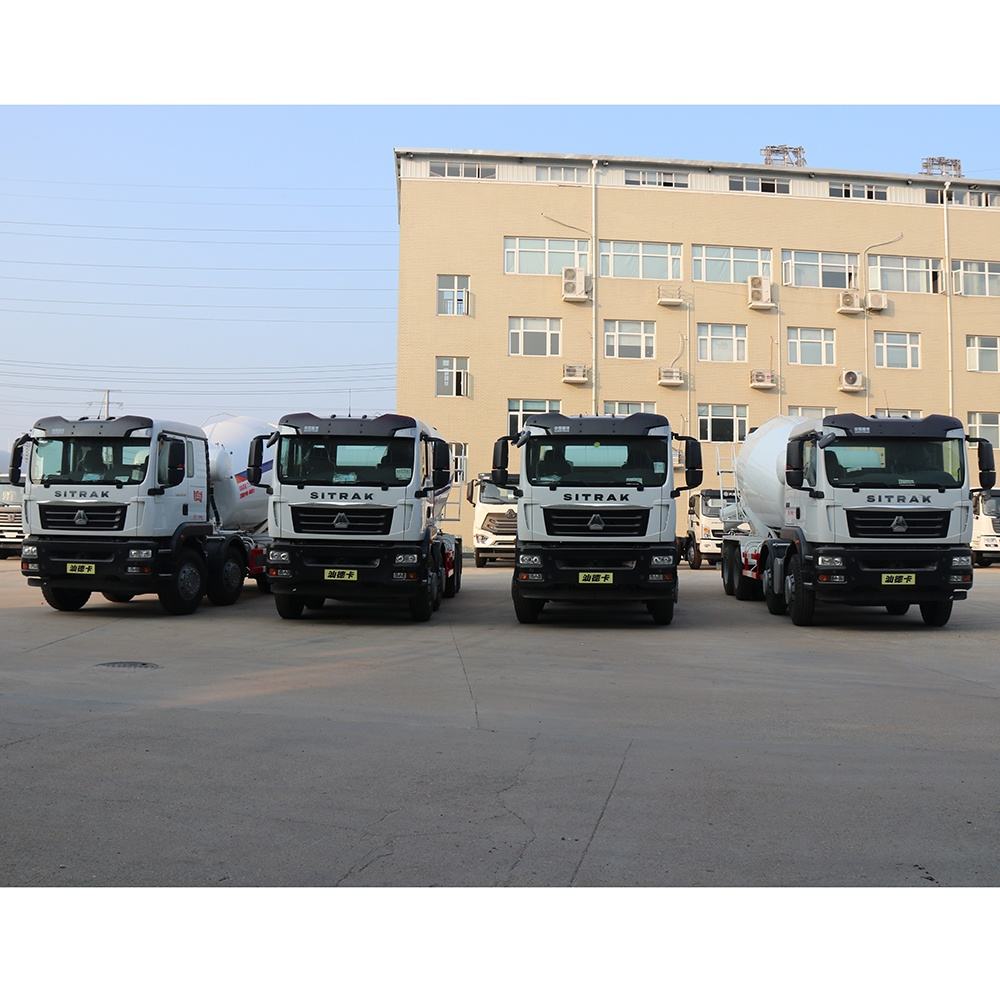

Direct Factory SITRAK 8X4 12m³ Concrete Mixing tank Central Concrete Mixer

Inquiry now
Vehicle Parameters
Vehicle Model
EHY5316GJBN
Vehicle Brand
HUAYI
Overall dimensions
9950×2496×3740mm
Curb weight
13420kg
Loading capacity
10m3
Color
optional
Chassis Parameters
Chassis model
ZZ1316N306GE1
Chassis brand
SITRAK
Overall dimensions
8955×2496×3035mm
Wheel base
1800+3025+1400mm
Front/rear wheel track
2035/2035,1850/1850mm
Front/rear suspension
1430/2295mm
Approach/departure angle
16/17°
Maximum speed
82km/h
Cab
Configuration
SITRAK C5H a row and a half deluxe cab(with sleeping berth), allowable 3 passengers,air conditioner, ABS.
Color
White, other color is optional
Engine
Model
MC07.34-50
Emission
Euro 5
Type
6 cylinders, in-line, 4-stroke, water-cooled, turbo inter-cooling, direct injection, exhaust valve brake,diesel engine
Rated power
340hp,rated power speed 2300rpm
Displacement
6870ml
Max.torque
1250N.m
Bore x stroke
108x125mm
Manufacturer
China National Heavy Duty Truck Group Co.,Ltd
Tire
295/80R22.5
12+1 nos
Transmission
gearbox HW16709XST, 9 speed forward 1 reverse
Steering device
Power assisted steering ZF8198
Steering wheel
Left hand drive
Concrete Mixer Structure  Parameters
Mixing capacity(m³)
10
Color and Logo
Optional
Feeding speed (m³/min)
≥5
Discharge speed(m³/min)
≥3
Discharge residual rate
≤0.5%
Slump scope(mm)
50-210
Water tank capacity(L)
300
Water pressure(Mpa)
0.35-0.38
Tank material
5mm alloy steel
Tank front head
8mm alloy steel
Reducer
Italy Bonfiglioli
Hydraulic motor
Germany REXROTH
Hydraulic pump
Germany REXROTH
Radiator
KAIPENG
Standard Configuration
chassis,sub frame,mixer tank,reducer, hydraulic pump,hydraulic motor, radiator,water tank,cleaning hose,feed port, discharge port,climbing ladder,air pressure water supply device.
Italy Bonfiglioli reducer,Germany REXROTH hydraulic pump,Germany REXROTH hydraulic motor,KAIPENG radiator,mixer tank(main tank 5mm alloy steel wear resistant material,front tank head 8mm alloy steel wear resistant material)
