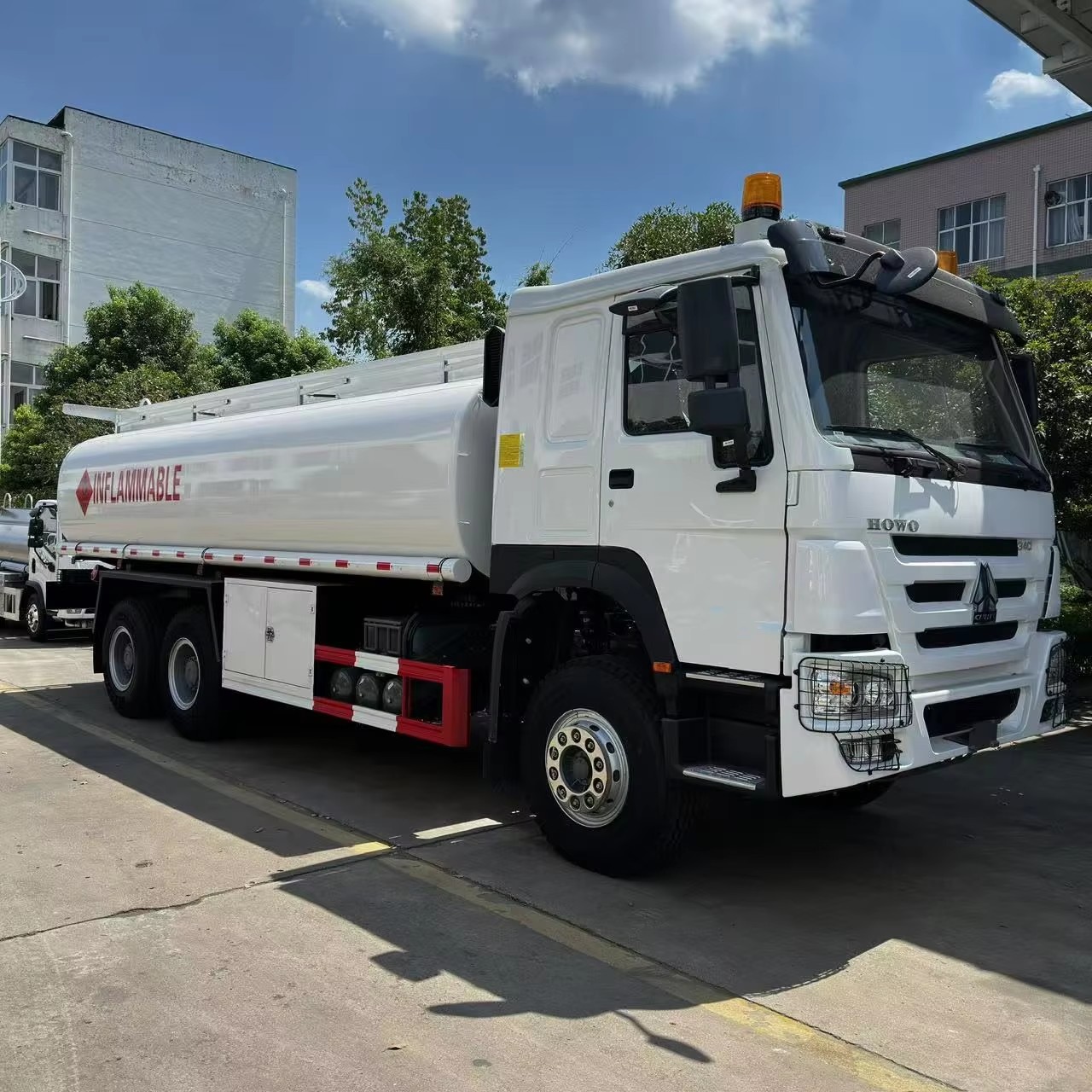

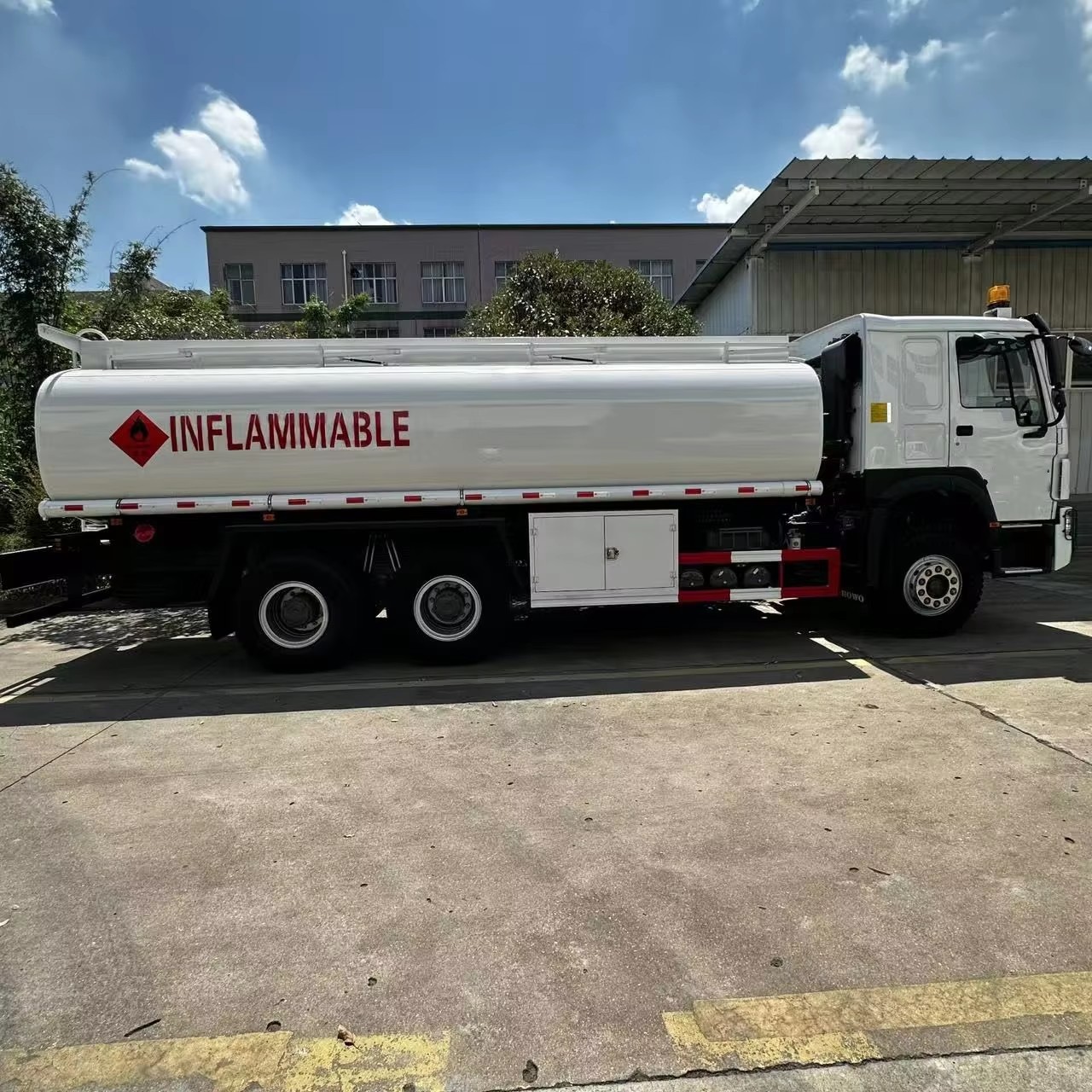

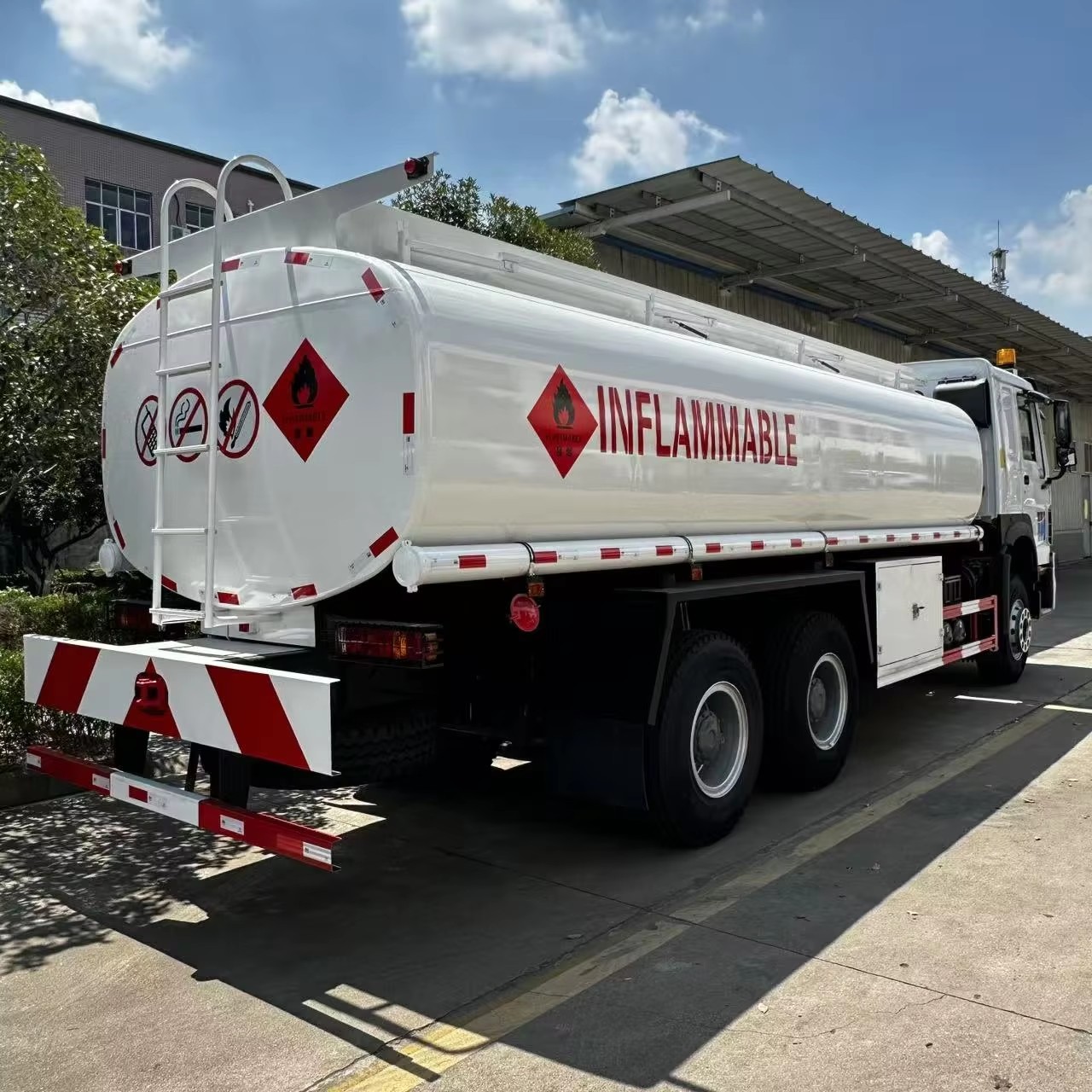

Fuel Tank Truck
This fuel tank truck is built for safe and efficient liquid fuel transportation. The tank can be made of carbon steel, stainless steel or aluminum alloy as required. It is equipped with standard safety valves, manholes and anti-static devices. Chassis options include ISUZU, SHACMAN, HOWO, DONGFENG, JIEFANG. All configurations are customizable to meet customer demands.
[Vehicle Technical Parameters] | |
Product Name | Fuel Tank Truck |
Curb Weight(Kg) | 12400 |
Boundary Dimension(mm) | 9980*2550*3500 |
Tank Volume(m³) | 30 |
Tank Thickness（mm） | 5 |
Tank Body Material | Carbon Steel |
Compartment | 2-6 As Customer Need |
Operating Ambient Temperature（°C） | -20~45 |
Manhole Cover | European Standard |
Emergency Shut Off Valve | Include |
Oil Gas Recovery Unit | Include |
Anti-Overflow Alarm Device | Include |
Fuel Loading method | Bottom Filling |
Gear Oil Pump Flow(m³/h) | 60 |
Toolbox | As Required |
[Chassis Technical Parameters] | |
Chassis Brand | HOWO |
Drive Form | 6*4 LHD RHD Optional |
Steering Device | Power Assisted Steering |
Wheelbase(mm) | 4750*1350 |
Engine Brand | SINOTRUK/MC07H.35-60 |
Horse Power(Kw) | 257KW |
Engine Displacement(ml) | 8 |
Engine Emission Standard | Euro 3 |
Number of Engine Cylinders | 6 |
Fuel Type | Diesel |
Gearbox | 12 |
Front/Rear Axle(t) | 7.5/16/16 |
Suspension | Multi Leaf Springs |
Brake System | Front/Rear Drum Full Air Braking |
Tires Spec | 10 |
Cab Configuration | air conditioning, radio, MP3 and USB port,A |
