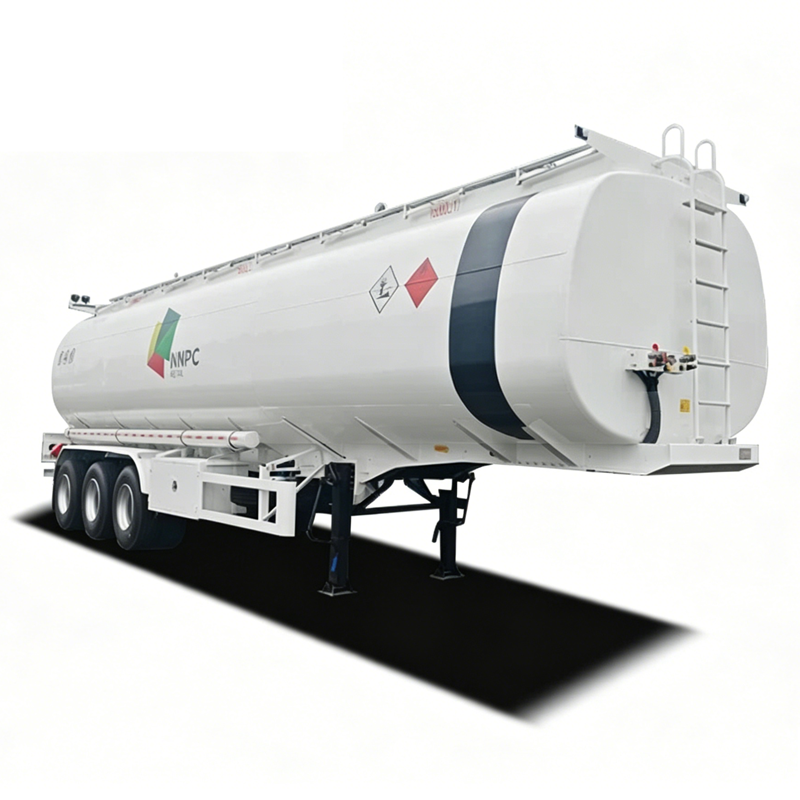

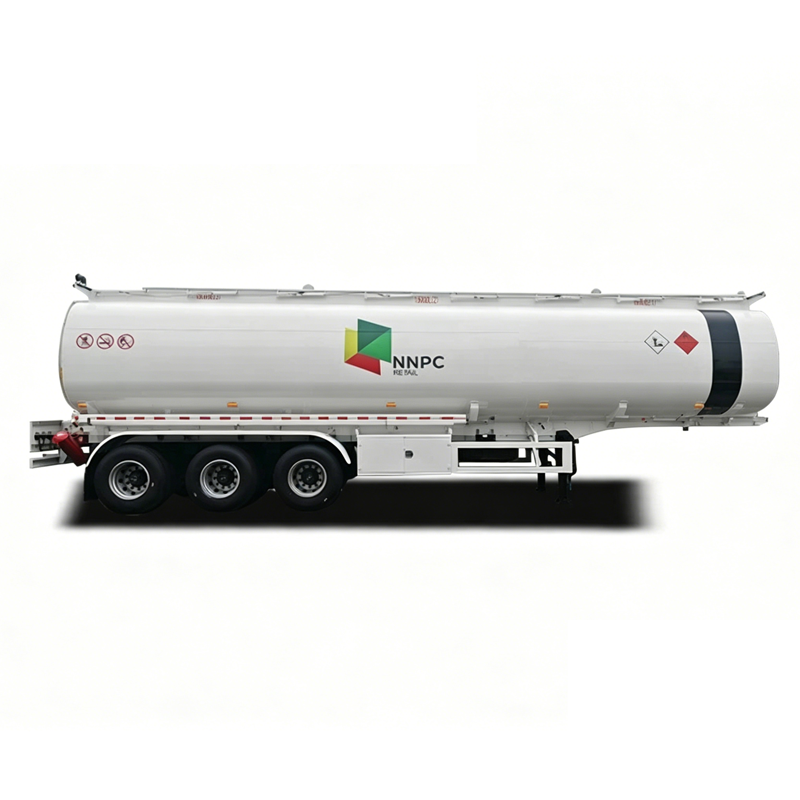

Fuel Tank Truck
This fuel tank truck is built for safe and efficient liquid fuel transportation. The tank can be made of carbon steel, stainless steel or aluminum alloy as required. It is equipped with standard safety valves, manholes and anti-static devices. Chassis options include ISUZU, SHACMAN, HOWO, DONGFENG, JIEFANG. All configurations are customizable to meet customer demands.
| Dimensions | |
| Overall length | Approx. 11,800mm |
| Overall width | 2,500mm |
| Overall height | Approx. 3,650mm |
| Tare weight | Approx. 10,900kg |
| Loading capacity | 45m3 |
| Tank body | |
| Shape | Mono block cylinder |
| Total volume | 45m3/CBM |
| Tank thickness | 5mm, carbon steel Q235 |
| End plate | 6mm, carbon steel Q235 |
| Lifting ladder | Including top walkway and backside steel material |
| Manhole cover | 4 sets aluminum alloy API manhole cover, with breather valves and anti‑spillage valves. |

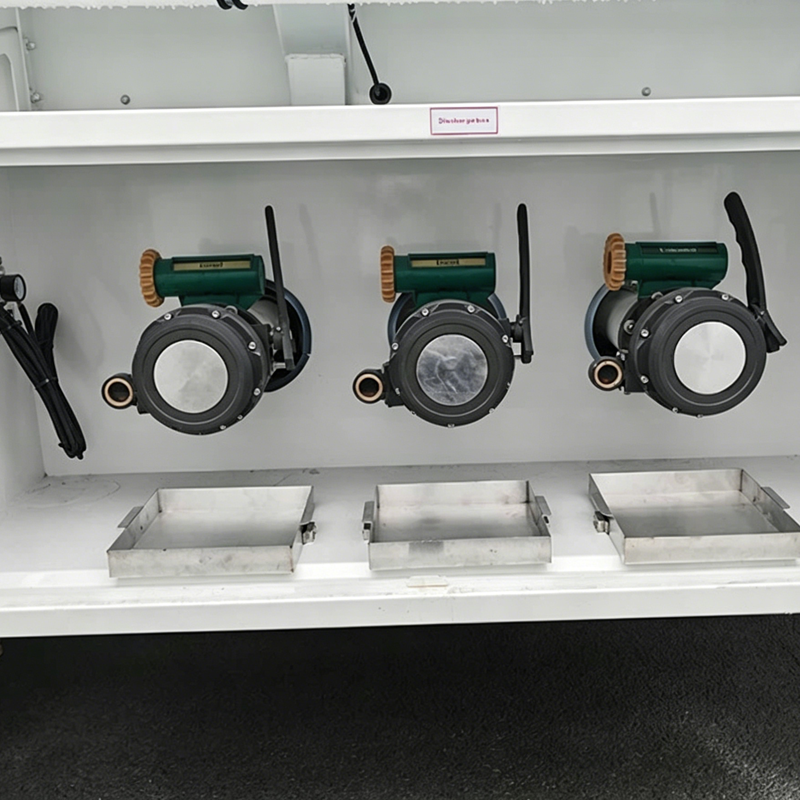

| Bottom valve | 4 sets of DN100 pneumatic bottom valve, pneumatic control for each compartment; |
| Discharging valve | 4 sets DN100 API discharging valves |
| Discharging pipe | 4" rubber hose |
| Chassis | |
| Main beams | Special design I beam, steel saddle support 8 No's each side |
| Axle‑Axle number | 3 axles |
| Axle‑Axel brand | BPW brand 13 tons |
| Landing gear | JOST brand |
| Kingpin | JOST brand 2" or 3.5" bolt‑in kingpin, interchangeable |
| Suspension | Heavy duty leaf spring type; front axle with BPW brand air bag as customized |
| Pneumatic braking system | WABCO RE 6 relay valve; T30/30+T30 spring brake chamber; |
| 45L air tanks | |
| Tire | 12R22.5 tubeless tire with one spare, 13 pieces |
| Painting | Complete chassis sand blasting to clean rust, 1 coat of anti‑corrosive prime, 2 coats of final paint |
| Lighting system | 1. Electrical wires: Placed in leak tight sheathes, neither bare wire nor split sheathes; |
| 2. Back lights: Inserted inside rear bumpers and protected. | |
| 3. Stop light: Additional LED stop lighting. | |
| 4. Lighting repeaters: Turn, reverse and stop lights must be repeated on top left and right sides. | |
| 5. Indicator: In the rear side. | |
| Other Accessories | • Dust board to cover the tires; |
| • Rear ladder to access the top of the tanker; | |
| • Walkway with fold‑able handrail; | |
| • One standard tool box; | |
| • Double spare tire carrier; | |
| • Anti‑skid design on the whole available surface; | |
| • 2 fire extinguisher holder, with 29kg extinguisher; | |
| • Drip collecting system; | |
| • Earthing plots4 in brass; | |
| • A 5cm wide yellow, reflective safety line shall be placed along both side of tank shell; | |
| • With ABS system; | |
| • Epoxy coated inside tanker; | |
| • Aluminum alloy pipeline suitable for transport JET A1 |
Q1:Could your company manufacture products based on my requests?
A:Yes. With our R&D team, Chengli is specialized in engineering and making specialized vehicles. We can provide any products according to your demands, like the volume, painting, size, logo, the engine, and even the chassis.
Q2:What's your quality guanrantee?
A:We are a government-certified enterprise recognized by China's Ministry of Industry and Information Technology (MIIT), we have passed the ISO, CCC, SGS. We also hold export qualifications.
Q3. What are your main products?
A: Fire and emergency response vehicles, tanker trucks, refrigerated trucks, sanitation trucks, garbage truck, sprinkler truck, boom truck, wrecker trucks and so on. The annual production capacity is exceeding 8,000 units.
Q4. Are you a factory or trading company?
A: Chengli a the original factory, not a middleman or agent.
Q5. What are your terms of payment? What is your terms of delivery?
A: Generally speaking, 30% T/T deposit in advance. Terms are EXW, FOB, CFR, CIF.
Q6. How about your delivery time?
A: 10 to 25 days after receiving your advance payment. It also depends on the items and the quantity.
Q7. What is the price of your product?
A: We are the direct factory, so the price can be competitive. Visit our company and let us enjoy a tea to further talk about the price!
Q8. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.
Q9.What is the warranty period for your products?
A:The warranty period of export vehicles can be 12 months, based on the order.
Q10.Do your special vehicles comply with national/regional safety standards and emission regulations?
A:Yes.
Q11.What after-sales services do you provide?
A:We provide comprehensive after-sales services, including free parts, maintenance, repairs, technical support, and on-line tech support.
Q12:Can you make OEM or ODM?
A:Yes, we welcome the importer and wholesaler from worldwide for OEM and ODM business.
Q13:Where is your factory located? How can I visit there?
A:The address is at the intersection of Xingguang Road 1 and National Highway 316 in Zengdu Economic and Technological Development Zone, Suizhou City, Hubei Province, China. We will pick you up at Wuhan Airport.
