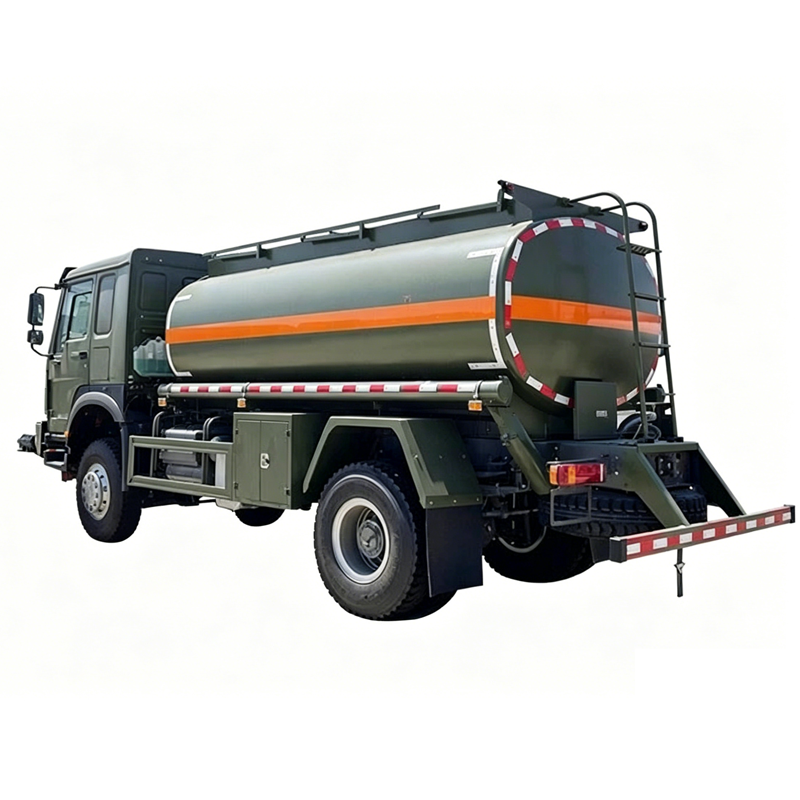

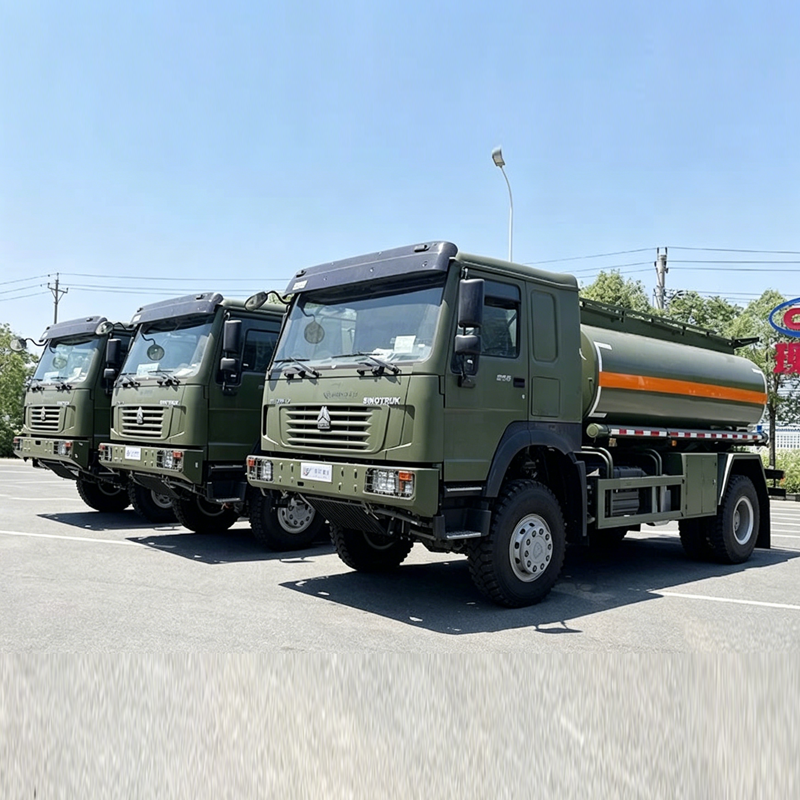

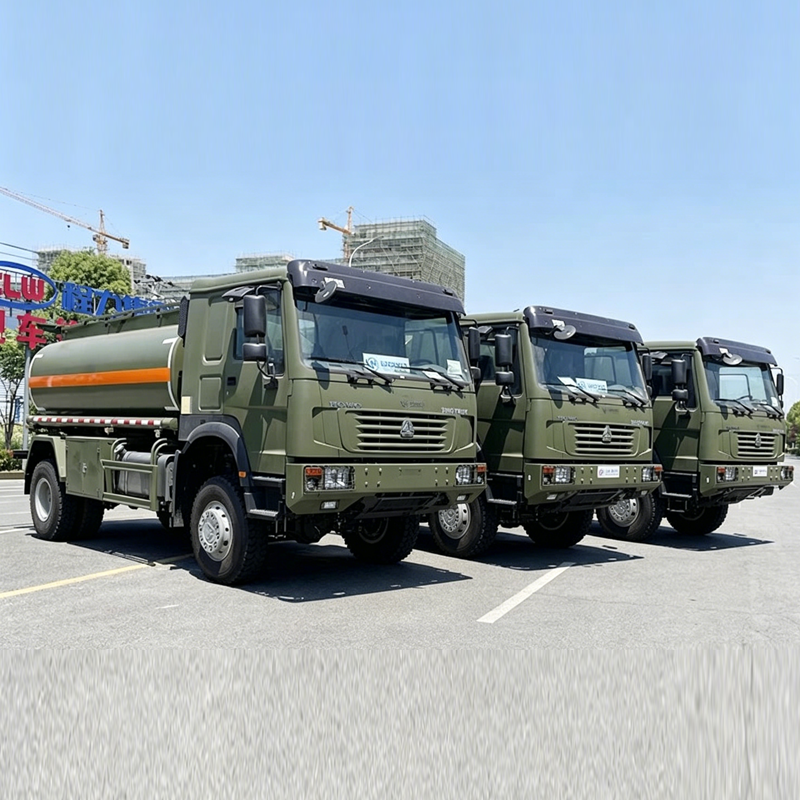

Fuel Tank Truck
This fuel tank truck is built for safe and efficient liquid fuel transportation. The tank can be made of carbon steel, stainless steel or aluminum alloy as required. It is equipped with standard safety valves, manholes and anti-static devices. Chassis options include ISUZU, SHACMAN, HOWO, DONGFENG, JIEFANG. All configurations are customizable to meet customer demands.
| Item No. | Parameters |
| Model | ZZ2167M4627A |
| Drive Model | 4x4 all wheel drive, Off Road truck chassis. |
| Cabin | HW76 Long Cabin, with two seats and one sleeper bed, with Air Conditioner and electric window. |
| Engine‑Model | WD615.62 |
| Engine‑Horse Power (Hp/rpm) | 266/2200, Euro II Emission Standard |
| Engine‑Max.Torque(Nm/rpm) | 1100/1100‑1600 |
| Engine‑Displacement | 9.726L |
| Engine‑Type | 6‑cylinder in‑line with water cooling, turbo charger and intercooling, 4‑stroke direct injection diesel engine |
| Transmission | HW15710C, 10 speeds forward and 2 speeds reverse. |
| Front Axle | HF7, Steering with double T‑cross section beam, Loading Capacity: 9,000kgs |
| Driving Axle | ST16, Pressed axle housing, central reduction with hub reduction, with differential locks between wheels and axles. ratio: 4.8. Option: 4.42 |
| Suspension | Front suspension: hydraulic telescopic double‑action shock absorbers and stabilizer; Rear suspension: leaf semi‑elliptic springs, bogie spring and stabilizer |
| Steering System | ZF8118, Hydraulic steering with power assistance |
| Brake System | Service brake: Dual circuit compressed air brake; Parking brake (emergency brake): Spring energy, compressed air operating; Auxiliary brake: Engine exhaust brake |
| Tire | 11.00R20 |
| Fuel Tank Capacity (L) | 400L Diesel Tank |
| Kurb Weight (kg) | 9,000 |
| Loading Capacity (kg) | 14,000 |
| Gross Vehicle Weight (kg) | 23,000 |
| Overall Dimension(LWH)(mm) | 8300×2500×3200 |
| Tank Material | Carbon Steel, Stainless Steel, or Aluminum Alloy |
| Nos of Compartment | 1‑3 |
| Wheelbase(mm) | 4300, or 4600 |
| Max. Speed (km/h) | 75 |
| Tanker | Volume: 15000Liters, 15CBM, 15m3, 15 cubic meters carbon steel |
| Single Compartment | |
| Tank Thickness: 5mm, End plate thickness: 6mm | |
| With API manhole, API discharge valve, one set of bottom emergency cut off valve | |

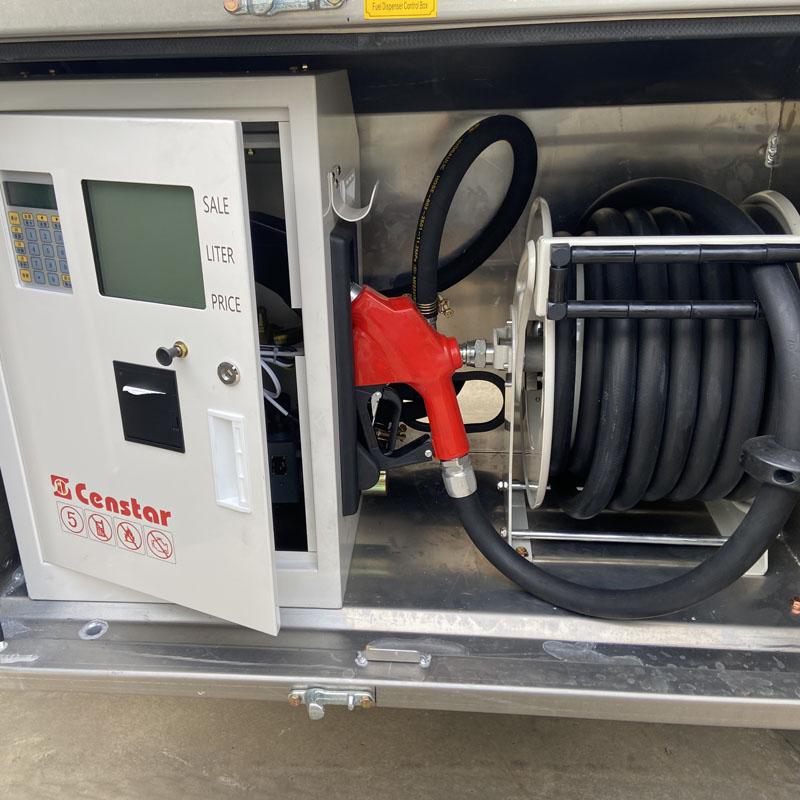

| Equipped with Pump, filling dispenser, 15 meters filling hose, and filling gun |
Q1:Could your company manufacture products based on my requests?
A:Yes. With our R&D team, Chengli is specialized in engineering and making specialized vehicles. We can provide any products according to your demands, like the volume, painting, size, logo, the engine, and even the chassis.
Q2:What's your quality guanrantee?
A:We are a government-certified enterprise recognized by China's Ministry of Industry and Information Technology (MIIT), we have passed the ISO, CCC, SGS. We also hold export qualifications.
Q3. What are your main products?
A: Fire and emergency response vehicles, tanker trucks, refrigerated trucks, sanitation trucks, garbage truck, sprinkler truck, boom truck, wrecker trucks and so on. The annual production capacity is exceeding 8,000 units.
Q4. Are you a factory or trading company?
A: Chengli a the original factory, not a middleman or agent.
Q5. What are your terms of payment? What is your terms of delivery?
A: Generally speaking, 30% T/T deposit in advance. Terms are EXW, FOB, CFR, CIF.
Q6. How about your delivery time?
A: 10 to 25 days after receiving your advance payment. It also depends on the items and the quantity.
Q7. What is the price of your product?
A: We are the direct factory, so the price can be competitive. Visit our company and let us enjoy a tea to further talk about the price!
Q8. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.
Q9.What is the warranty period for your products?
A:The warranty period of export vehicles can be 12 months, based on the order.
Q10.Do your special vehicles comply with national/regional safety standards and emission regulations?
A:Yes.
Q11.What after-sales services do you provide?
A:We provide comprehensive after-sales services, including free parts, maintenance, repairs, technical support, and on-line tech support.
Q12:Can you make OEM or ODM?
A:Yes, we welcome the importer and wholesaler from worldwide for OEM and ODM business.
Q13:Where is your factory located? How can I visit there?
A:The address is at the intersection of Xingguang Road 1 and National Highway 316 in Zengdu Economic and Technological Development Zone, Suizhou City, Hubei Province, China. We will pick you up at Wuhan Airport.
