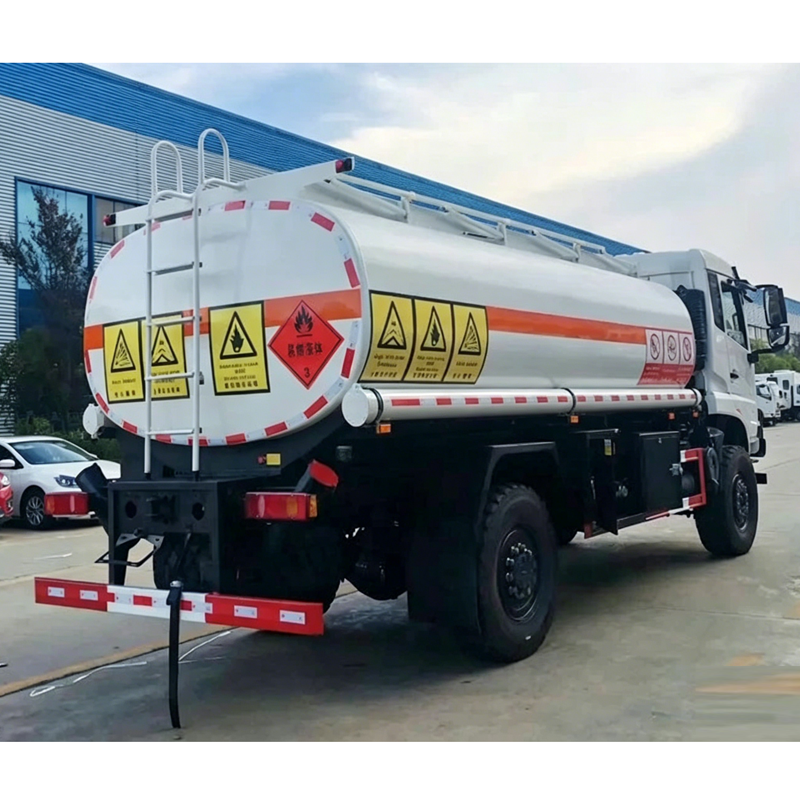

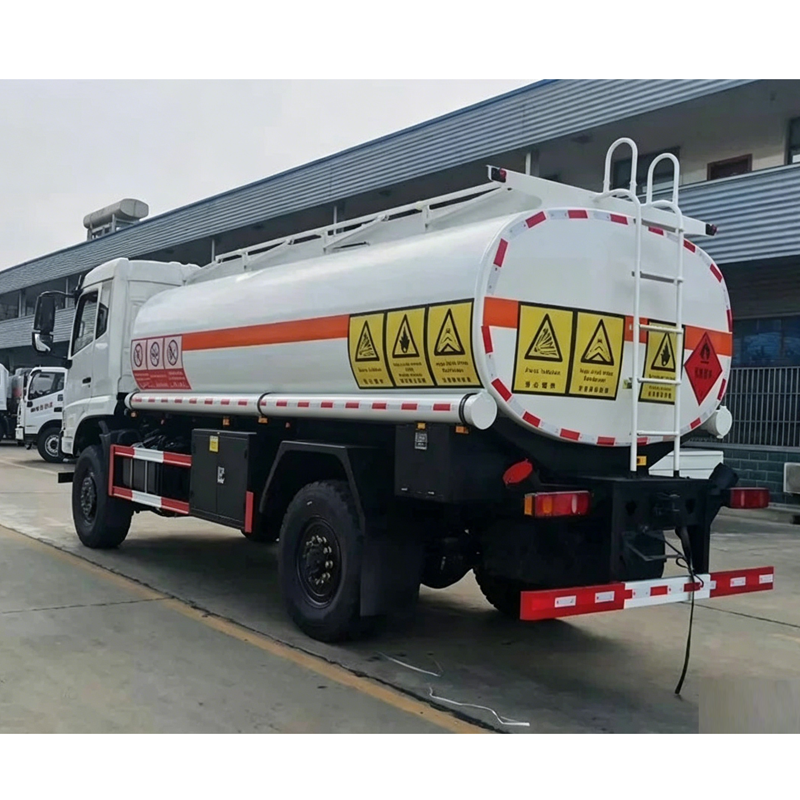

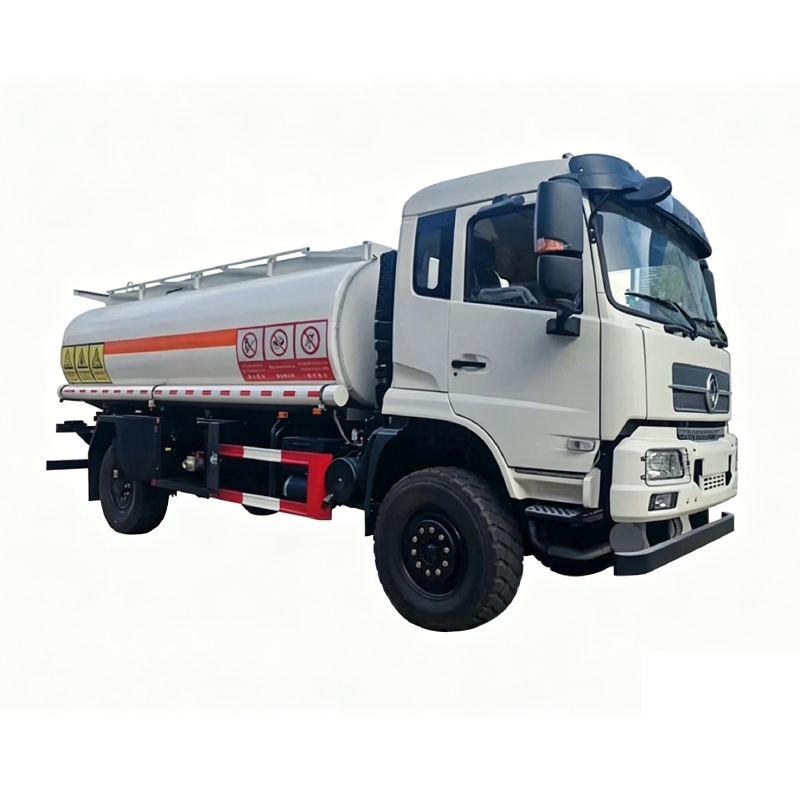

Fuel Tank Truck
This fuel tank truck is built for safe and efficient liquid fuel transportation. The tank can be made of carbon steel, stainless steel or aluminum alloy as required. It is equipped with standard safety valves, manholes and anti-static devices. Chassis options include ISUZU, SHACMAN, HOWO, DONGFENG, JIEFANG. All configurations are customizable to meet customer demands.
| Chassis Technical parameter | |
| Driving mode | Dongfeng 4*4 |
| Dimension | 680024003000mm |
| Gross weight | 11000kg |
| Curb weight | 3500kg |
| Wheelbase | 3800mm |
| Cabin‑Steering wheel | Left hand drive or right hand drive |
| Cabin‑Configuration | With air conditioning |
| Steering power | |
| Central locking | |
| Electric door and window | |
| Engine‑Engine brand | Commins B170‑33 |
| Engine‑Horsepower | 170HP |
| Engine‑Displacement | 5900ml |
| Engine‑Emission standard | Diesel, EuroⅡ |
| Transmission | FAST 6 forward gears and 1 reverse , Manual |
| Tire | 12.5R20 |
| Front axle loading | 4500kg |
| Rear axle loading | 6500kg |
| Upper structure parameter | |
| Fuel tank capacity | 5m3/5,000liters |
| Tank material | Carbon steel/ Stainless carbon/ Aluminum alloy |
| Compartment No. | ONE |
| Fuel dispenser | 2 sets, flow rate at 70L/min |
| English operation panel | |
| Showing unit price/ filling volume/ total price | |
| Oil pump | 2 Nos of 2.5" Oil pumps, driven by TPO |
| Independent pump in and pump out for each compartment | |
| Filling hose | 1 inch and 15 meters |
| 2 sets for diesel and petrol separately | |
| Filling hose reel | 2 Nos |
| Filling nozzle | 2 Nos |
| Manhole cover | 2 sets with breath valves |
| Bottom valve | 2 sets of APL aluminum pneumatic bottom valves |
| Level gauge | Each tank top is equipped with an electronic level meter |
| Operation compartment | Located at rear of truck with aluminum alloy door |
| Control system | Power on/off |
| Lighting | |
| Fuel pump on/off | |
| Fuel dispenser on/off | |
| Main valve on/off | |
| Fuel level digital display | |
| Others | 2 sets of 4kg extinguishers |
| 1 set of static belt | |
| Painting | Color and design as customer's requirement |
| Special design | Tank body is covered by carbon steel van |




Q1:Could your company manufacture products based on my requests?
A:Yes. With our R&D team, Chengli is specialized in engineering and making specialized vehicles. We can provide any products according to your demands, like the volume, painting, size, logo, the engine, and even the chassis.
Q2:What's your quality guanrantee?
A:We are a government-certified enterprise recognized by China's Ministry of Industry and Information Technology (MIIT), we have passed the ISO, CCC, SGS. We also hold export qualifications.
Q3. What are your main products?
A: Fire and emergency response vehicles, tanker trucks, refrigerated trucks, sanitation trucks, garbage truck, sprinkler truck, boom truck, wrecker trucks and so on. The annual production capacity is exceeding 8,000 units.
Q4. Are you a factory or trading company?
A: Chengli a the original factory, not a middleman or agent.
Q5. What are your terms of payment? What is your terms of delivery?
A: Generally speaking, 30% T/T deposit in advance. Terms are EXW, FOB, CFR, CIF.
Q6. How about your delivery time?
A: 10 to 25 days after receiving your advance payment. It also depends on the items and the quantity.
Q7. What is the price of your product?
A: We are the direct factory, so the price can be competitive. Visit our company and let us enjoy a tea to further talk about the price!
Q8. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.
Q9.What is the warranty period for your products?
A:The warranty period of export vehicles can be 12 months, based on the order.
Q10.Do your special vehicles comply with national/regional safety standards and emission regulations?
A:Yes.
Q11.What after-sales services do you provide?
A:We provide comprehensive after-sales services, including free parts, maintenance, repairs, technical support, and on-line tech support.
Q12:Can you make OEM or ODM?
A:Yes, we welcome the importer and wholesaler from worldwide for OEM and ODM business.
Q13:Where is your factory located? How can I visit there?
A:The address is at the intersection of Xingguang Road 1 and National Highway 316 in Zengdu Economic and Technological Development Zone, Suizhou City, Hubei Province, China. We will pick you up at Wuhan Airport.
