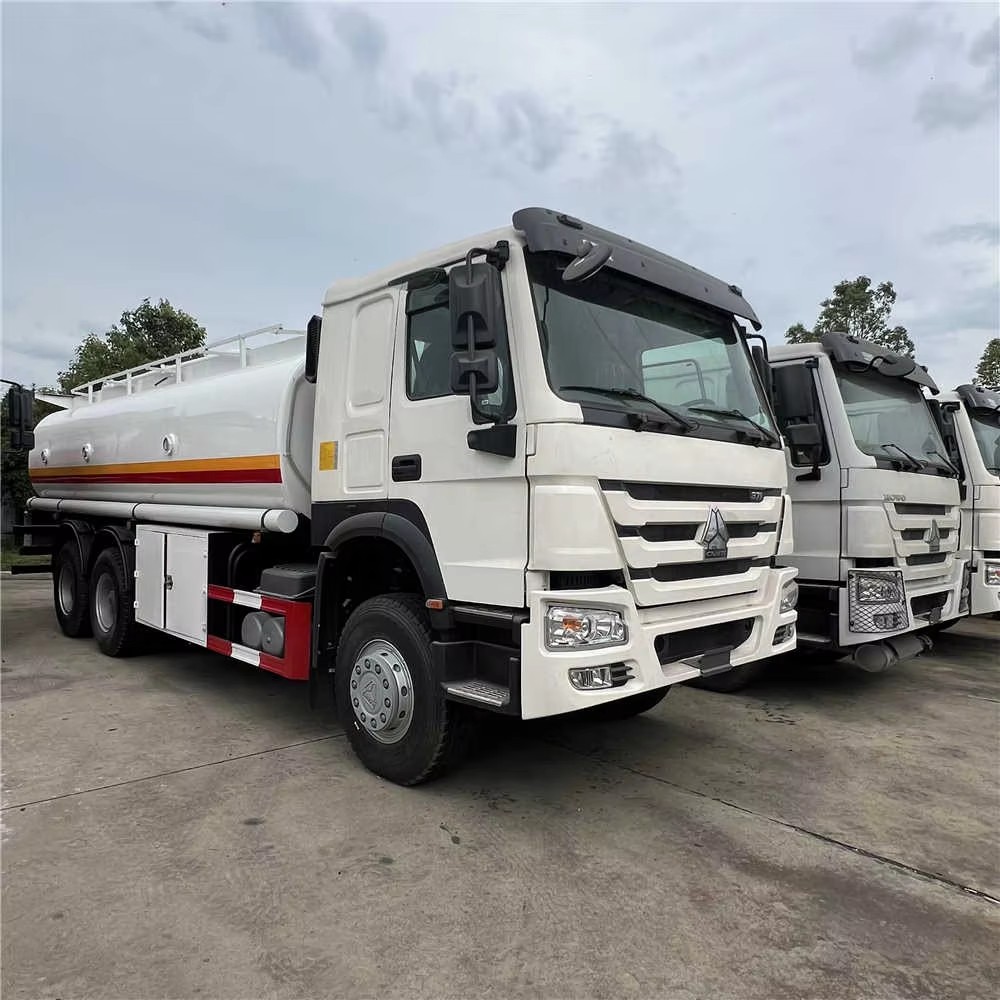

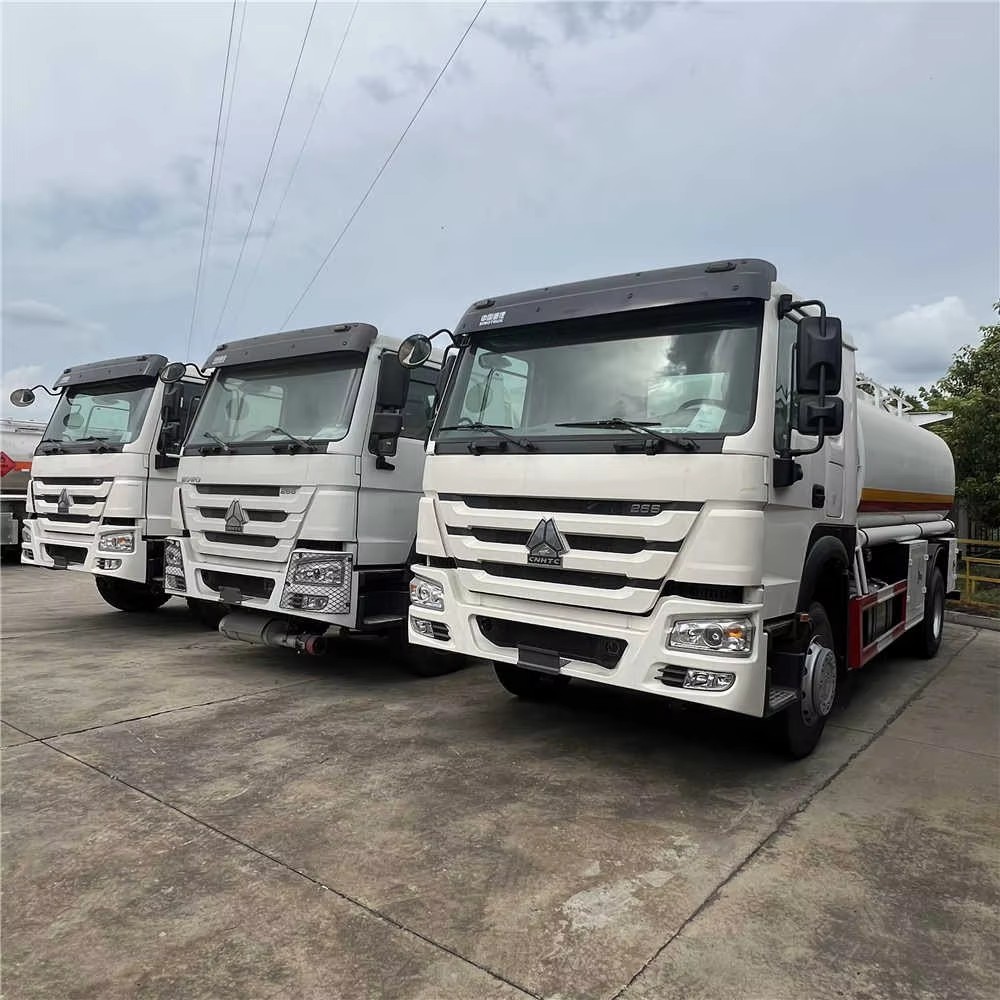

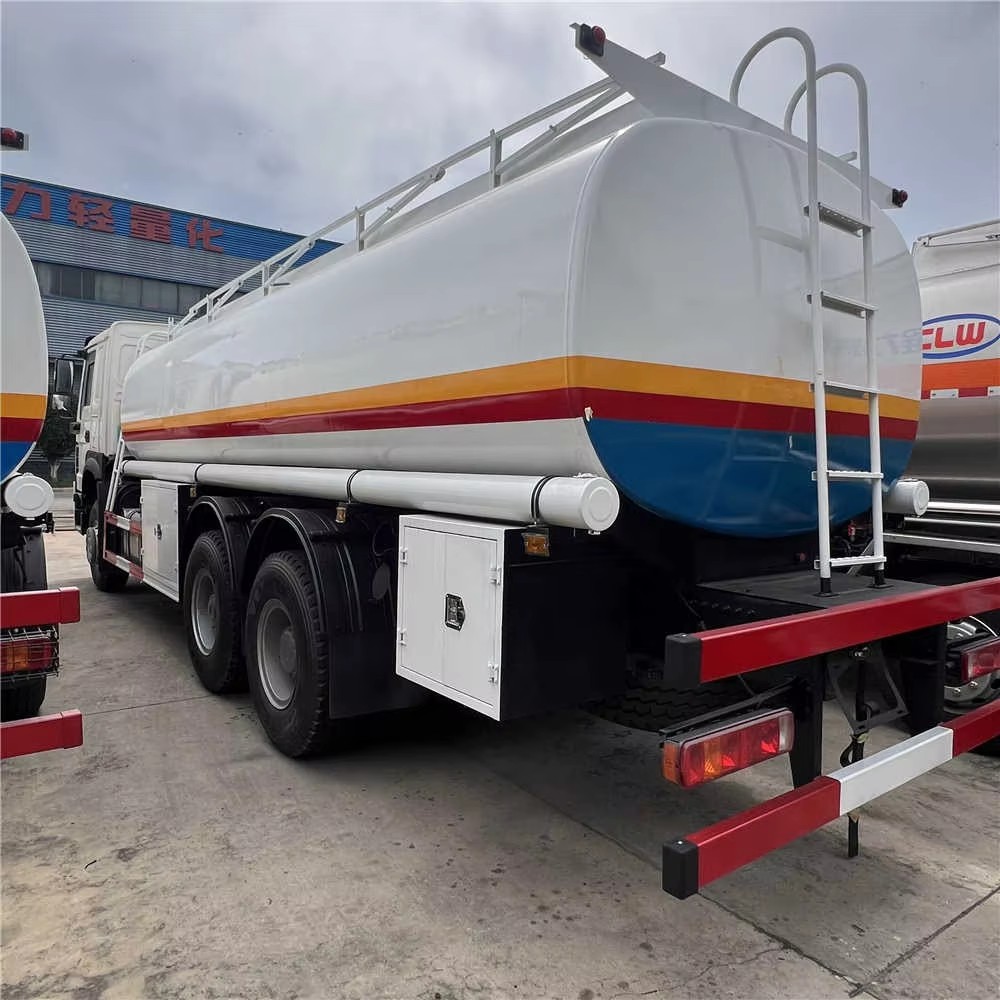

Fuel Tank Truck
This fuel tank truck is built for safe and efficient liquid fuel transportation. The tank can be made of carbon steel, stainless steel or aluminum alloy as required. It is equipped with standard safety valves, manholes and anti-static devices. Chassis options include ISUZU, SHACMAN, HOWO, DONGFENG, JIEFANG. All configurations are customizable to meet customer demands.
[Vehicle Technical Parameters] | |
Product Name | Fuel Tanker Truck |
Curb Weight(Kg) | 9600 |
Boundary Dimension(mm) | 10350*2496*3350 mm |
Tank Volume(m³) | 22 |
Tank Thickness（mm） | 5 |
Tank Body Material | 304 Stainless Steel/Q235 Carbon Steel |
Anti Wave Plate | yes |
Operating Ambient Temperature（°C） | -20-45 |
Manhole Cover | European standard |
Emergency Shut Off Valve | yes |
Oil Gas Recovery Unit | yes |
Anti-Overflow Alarm Device | yes |
Fuel Loading method | Bottom filling |

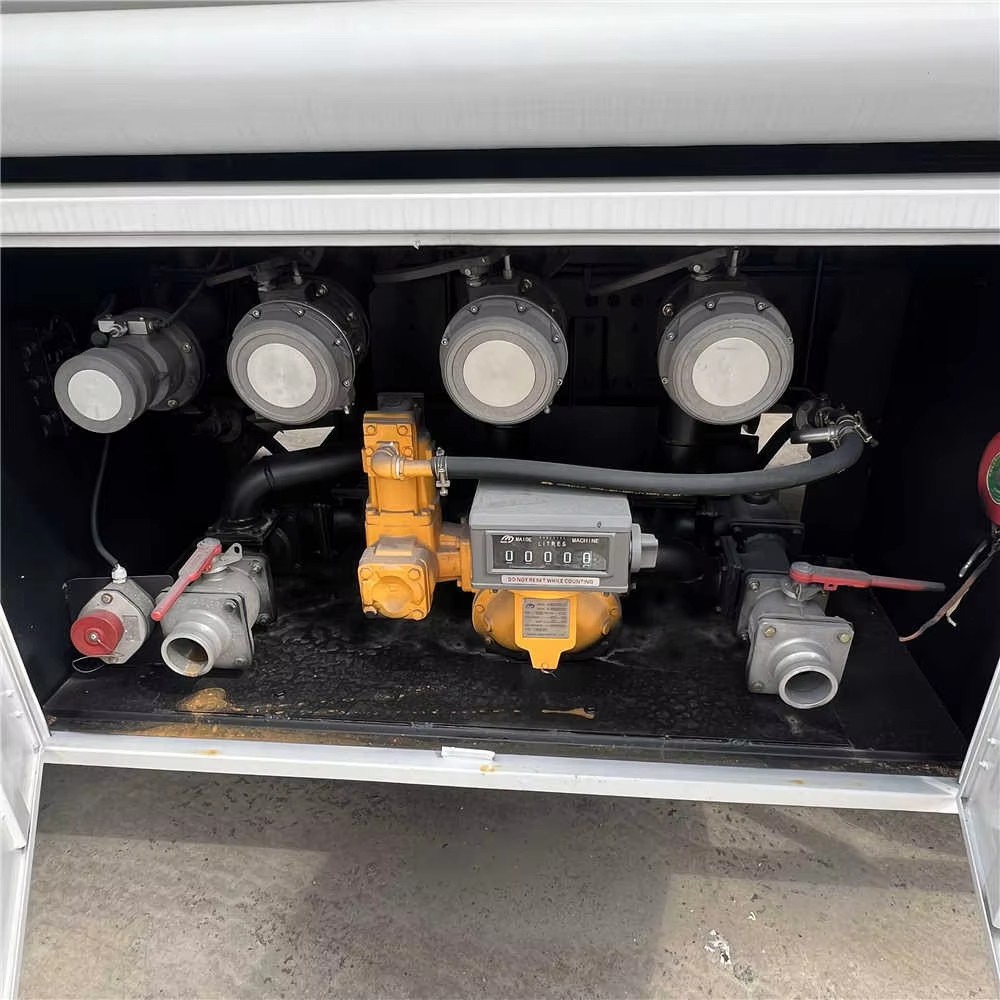

Gear Oil Pump Flow(m³/h) | 60 |
Toolbox | Customized to your needs |
Maximum Speed（km/h） | 95 |
[Chassis Technical Parameters] | |
Chassis Brand | HOWO |
Type of Fuel | Diesel Oil |
Engine Power（KW） | 257KW |
Front Wheel Braking | Disc brake |
Front Axle/Rear Axle（t） | 7/18 |
Gearbox | 10 Speed Manual |
Brake | Air brake |
Front Wheel Braking | Disc brake |
Number of Axles | 2 |
Wheelbase (mm) | 4575+1400 |
Number of Tires | 10 |
Tyre Specification | 11.00R20 18PR |
