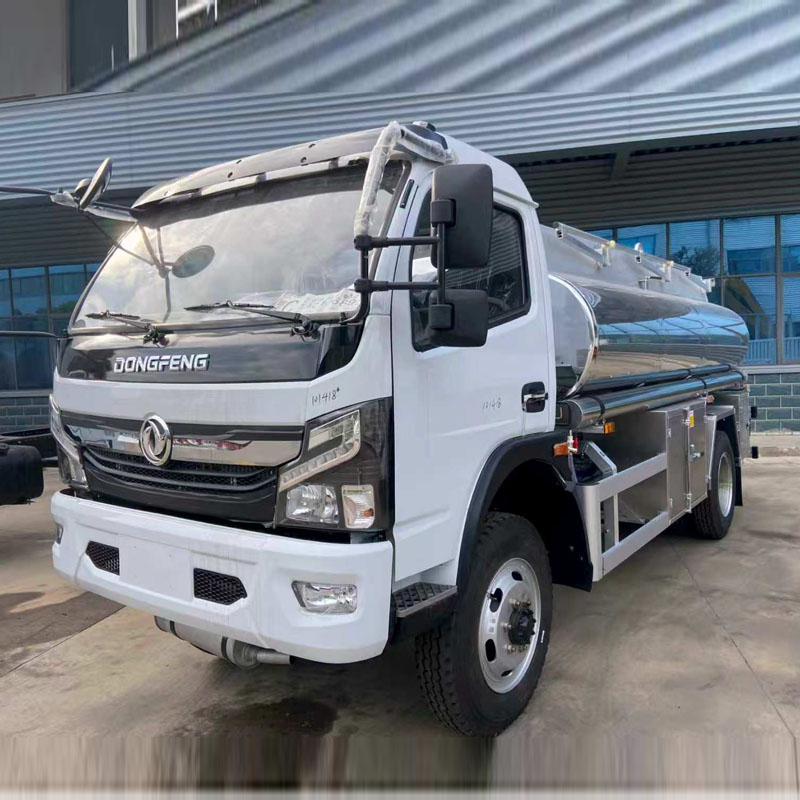

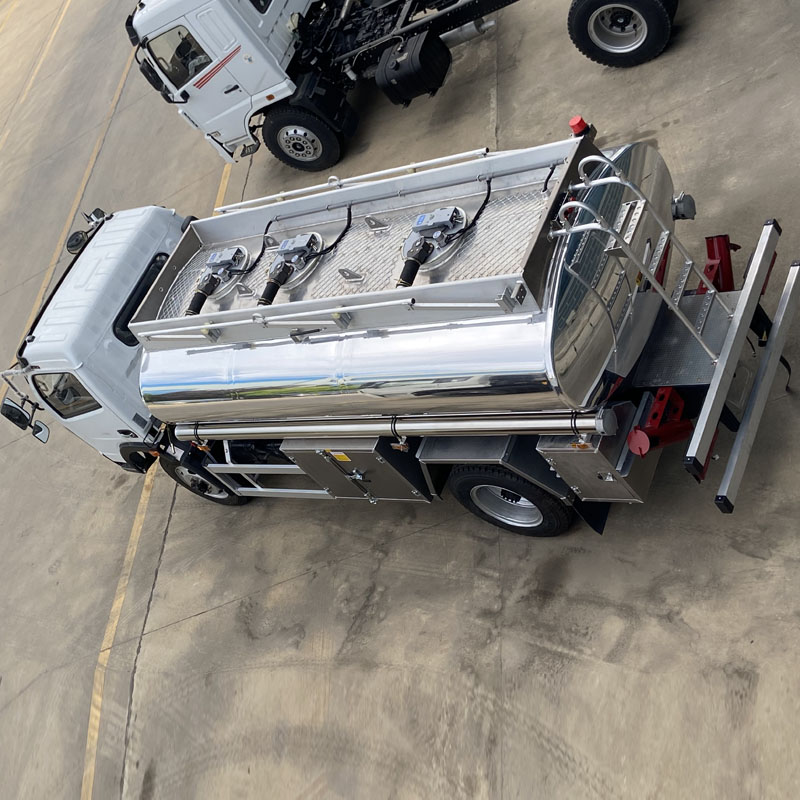

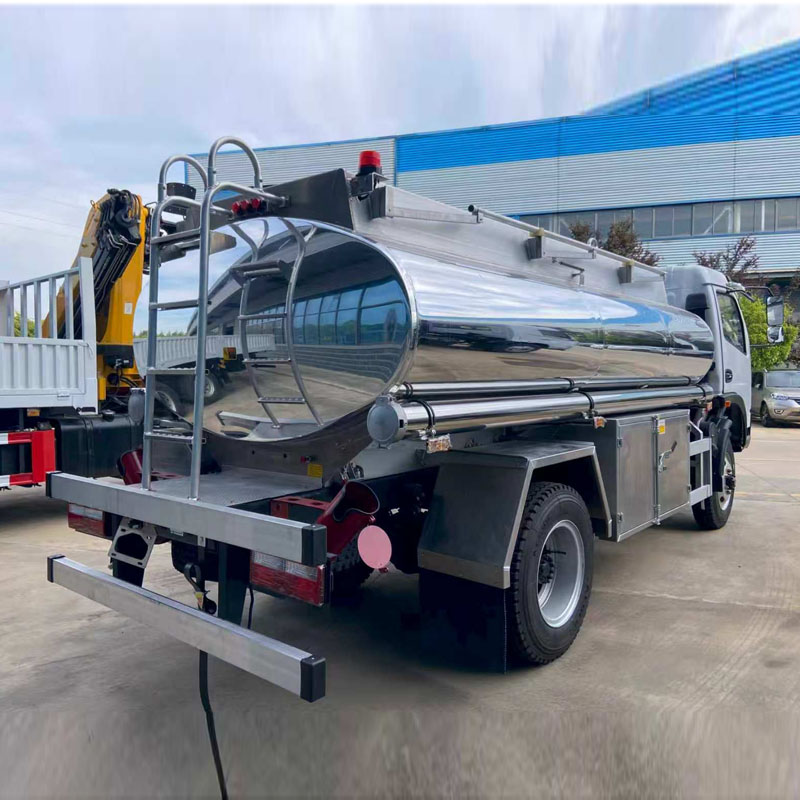

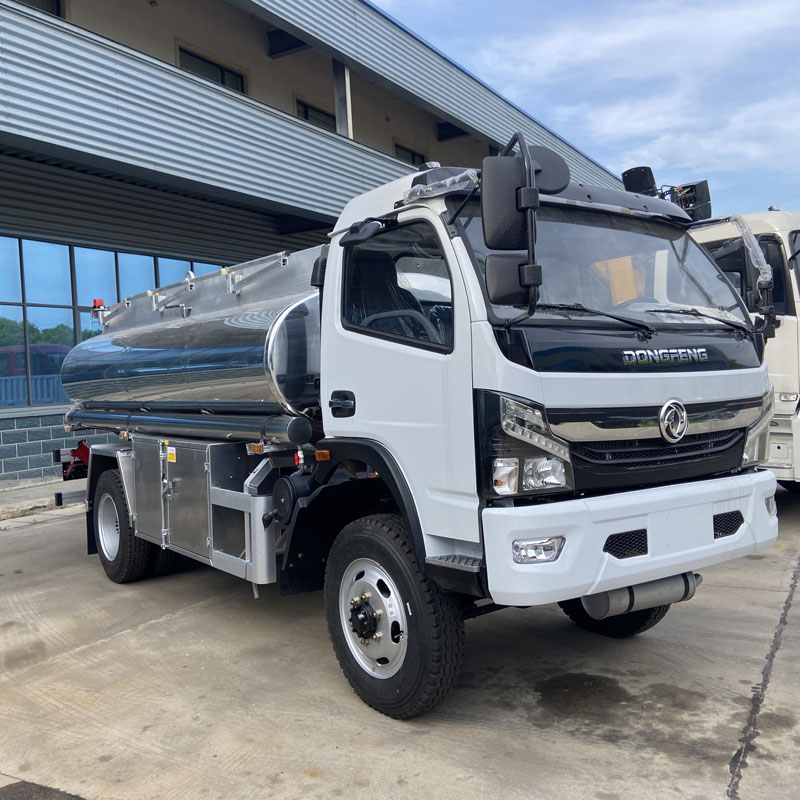

Fuel Tank Truck
This fuel tank truck is built for safe and efficient liquid fuel transportation. The tank can be made of carbon steel, stainless steel or aluminum alloy as required. It is equipped with standard safety valves, manholes and anti-static devices. Chassis options include ISUZU, SHACMAN, HOWO, DONGFENG, JIEFANG. All configurations are customizable to meet customer demands.
| Specification of Truck Chassis | |
| Driving Model | 4 X 4 |
| Chassis model | Dolly D7 |
| Cabin | D7 type cabin |
| Left Hand Driving | |
| Power assistance | |
| One row | |
| 2 passengers | |
| with air conditioner | |
| Wheel Base | 3800 mm |
| Loading Weight | 6,500kg |
| Axle Loading (front/rear) | 2700/7000x2 kg |
| External Dimensions (L x W x H) | 6995x2230x2320mm |
| Overhang (front/front/rear) | 1150 /2400mm |
| Wheel track (front/rear) | 1130 /1970mm |
| Max. driving speed | 90 km/h |
| Engine - Model | Yuchai diesel engine YC4E160-33 |
| Engine - Type | 4-cylinders in a line, turbo-charging and inter-cooling |
| Engine - Horse Power | 160Hp |
| Engine - Max output power | 118kW |
| Engine - Emission standard | Euro III |
| Engine - Displacement | 4257ml |
| Engine - Rated Speed | 2600rpm |
| Engine - Min. Fuel consumption at full load | ≤200 g/kw.h |
| Gearbox | Manual type,FAST 8JS75T |
| 8 forwards & 2 reverses | |
| Clutch | Reinforced diaphragm clutch |
| Tire | 8.25R16, 6 pieces with 1 spare tire. |
| Fuel box | 160L /Steel Material |
| Upper parts | |
| Fuel tanker | Volume: 5,000~8,000 Liters |
| Tank material: Carbon steel Q235 | |
| Filing medium: Gasoline or diesel or other loading medium | |
| Manhole: 1 unit, European standard API manhole. | |
| Aluminum Alloy 8,000Liters Tank | |
| Fuel pump | 1 unit, China local brand |
| Refilling system (Optional) | Fuel dispenser (50-80L/min) with 15m refilling hose |
| Others(Standard) | Aluminium alloy safety valve |
| Two fire extinguisher holder | |
| Rear ladder | |
| Top guardrail | |
| Side bumper | |
| Grounding static belt | |
| Spare tire carrier with 1 spare tire | |
| Color is optional with client logo | |




Q1:Could your company manufacture products based on my requests?
A:Yes. With our R&D team, Chengli is specialized in engineering and making specialized vehicles. We can provide any products according to your demands, like the volume, painting, size, logo, the engine, and even the chassis.
Q2:What's your quality guanrantee?
A:We are a government-certified enterprise recognized by China's Ministry of Industry and Information Technology (MIIT), we have passed the ISO, CCC, SGS. We also hold export qualifications.
Q3. What are your main products?
A: Fire and emergency response vehicles, tanker trucks, refrigerated trucks, sanitation trucks, garbage truck, sprinkler truck, boom truck, wrecker trucks and so on. The annual production capacity is exceeding 8,000 units.
Q4. Are you a factory or trading company?
A: Chengli a the original factory, not a middleman or agent.
Q5. What are your terms of payment? What is your terms of delivery?
A: Generally speaking, 30% T/T deposit in advance. Terms are EXW, FOB, CFR, CIF.
Q6. How about your delivery time?
A: 10 to 25 days after receiving your advance payment. It also depends on the items and the quantity.
Q7. What is the price of your product?
A: We are the direct factory, so the price can be competitive. Visit our company and let us enjoy a tea to further talk about the price!
Q8. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.
Q9.What is the warranty period for your products?
A:The warranty period of export vehicles can be 12 months, based on the order.
Q10.Do your special vehicles comply with national/regional safety standards and emission regulations?
A:Yes.
Q11.What after-sales services do you provide?
A:We provide comprehensive after-sales services, including free parts, maintenance, repairs, technical support, and on-line tech support.
Q12:Can you make OEM or ODM?
A:Yes, we welcome the importer and wholesaler from worldwide for OEM and ODM business.
Q13:Where is your factory located? How can I visit there?
A:The address is at the intersection of Xingguang Road 1 and National Highway 316 in Zengdu Economic and Technological Development Zone, Suizhou City, Hubei Province, China. We will pick you up at Wuhan Airport.
