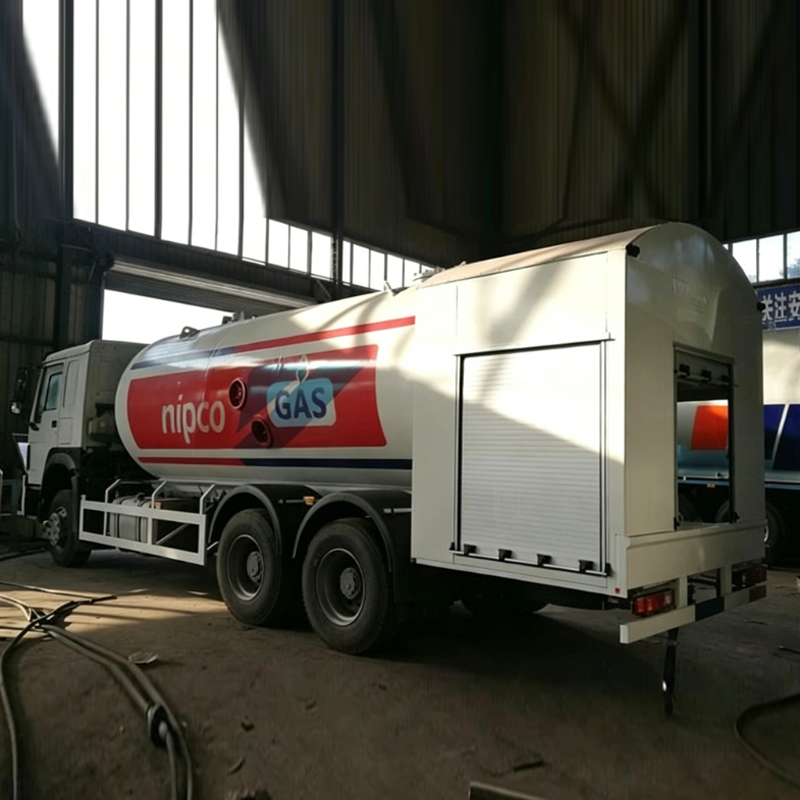

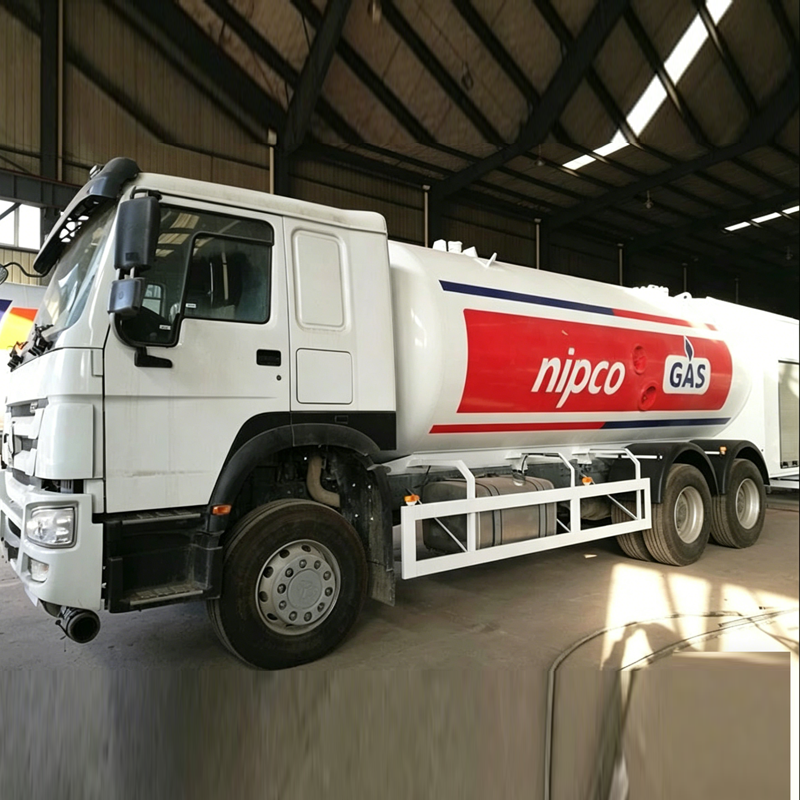

Howo 10-wheel 24000L Propane TankTruck

1.lpg truck: Liquid Petroleum Gas, Propane, Butane, Liquid Ammonia, etc.

2.Available tank sizes of LPG storage tank: 5m³~200m³, 2.5ton~100tons.

3.Tank Design Standard : GB-150, ASME VIII Division I U STAMP, CCC, ISO9001 : 2008.

4.Tank Testing: 100% Radiaographic Test, Magnetic Power Test, Water Pressure.

5. Optional for lpg gas plant equipments: LPG pump and motor, LPG compressor, volume flow meter, filling scales and lpg dispenser,ball valves,check valves,non-return valves,glass valve,strainer,by-pass valve and so on.

Item No.	Parameters
Chassis Parameters
Overall Dimension	10720x2480x3420mm
Driving Model	left hand drive
Gross Vehicle Weight	25000 kg
Curb Weight	14240kg
Payload	10630kg
Wheel Base	5200+1350 mm
Front/rear Tread	2022/1830 mm
Approach/Departure Angle	16/12 degree
Front Axle	HF9,9000kg
Rear Axle	HC16,16000kgX2(Heavy duty design)
Engine	WD615.87,4-stroke direct injection,6-cylinder in-line with water cooling,turbo-charging and inner cooling
Engine horsepower	290HP EUROII
Displacement	9760mL (Diesel)
Max Driving Speed	95 km/h
Gearbox	HW19710
Cabin	Standard HW76 cabin,2~3 Passenger allowed,with Air Conditioner
Tire	12R22.5 (10 pcs with one spare)
LPG tank
Volume:	24,000liters
Tank material:	Q345R
Tank diameter:	2050mm
Tank thickness:	12mm
End plate	12mm
Tank length:	8060mm or as designed
Gas phase	DN50 or according to customer request
Liquid Phase	DN80 or according to customer request
Filling gas	Propane(LPG)
Design Pressure:	1.61Mpa
Accessory
LPG Pump	1 pc,Chinese brand
radiator	1 pc
LPG dispenser	1 pc,English remarks with printer for receipt,Chinese brand
Filling hose with filling nozzle	15M
Level Gauge	Rochester Float Ball type/located at side or rear of lpg tanker
Safety Valve	1,DN80
Tool and Valve Box	1
Thermometer	1
Pressure Gauge	1
Emergency Valve	1
Fender	Steel
Fire Extinguisher Holder	2
Exhaust shaft	At the front of truck for safety
