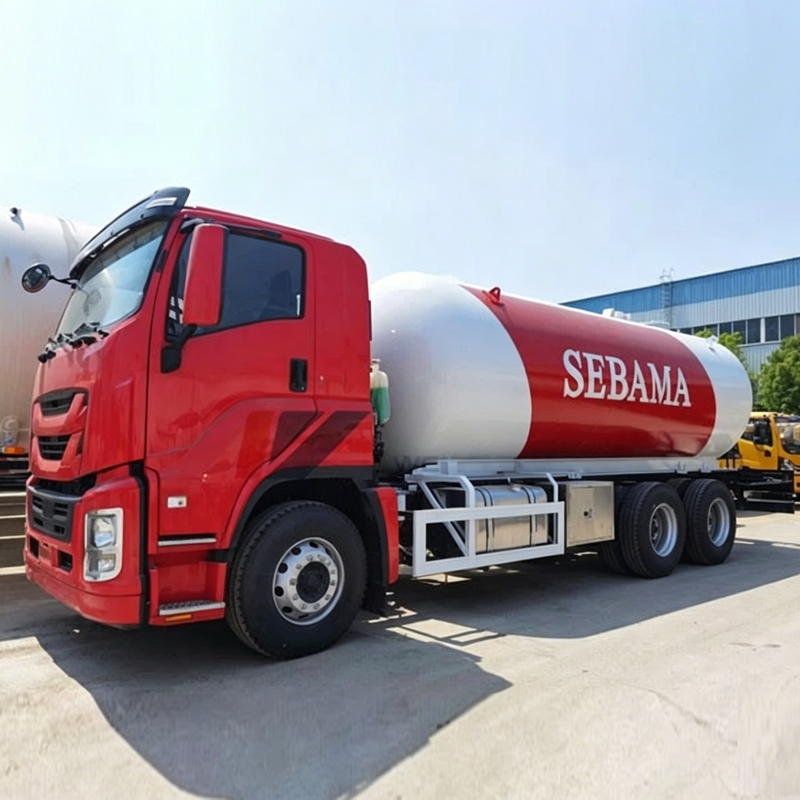

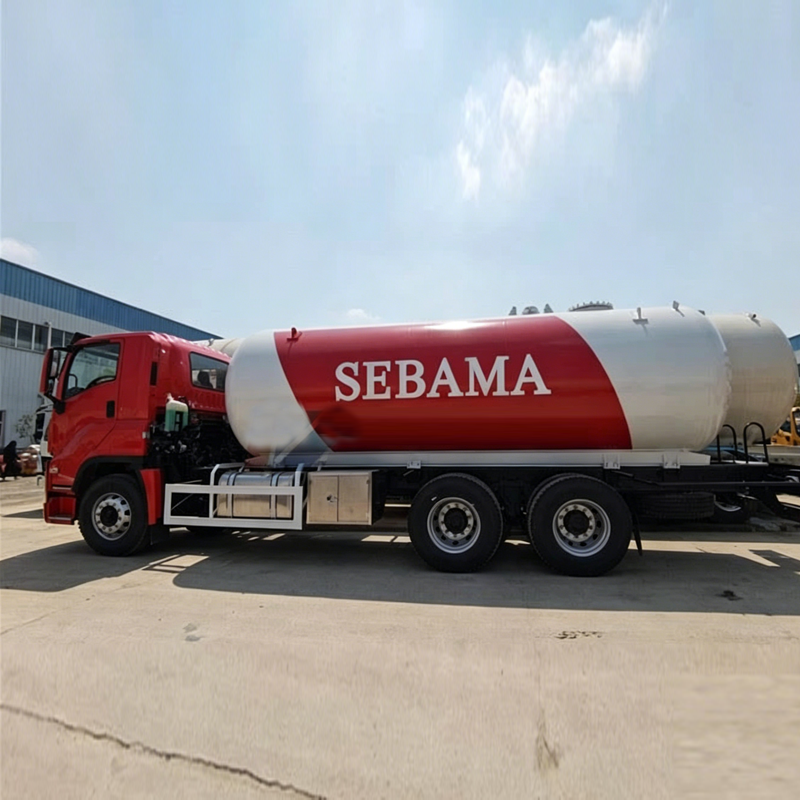

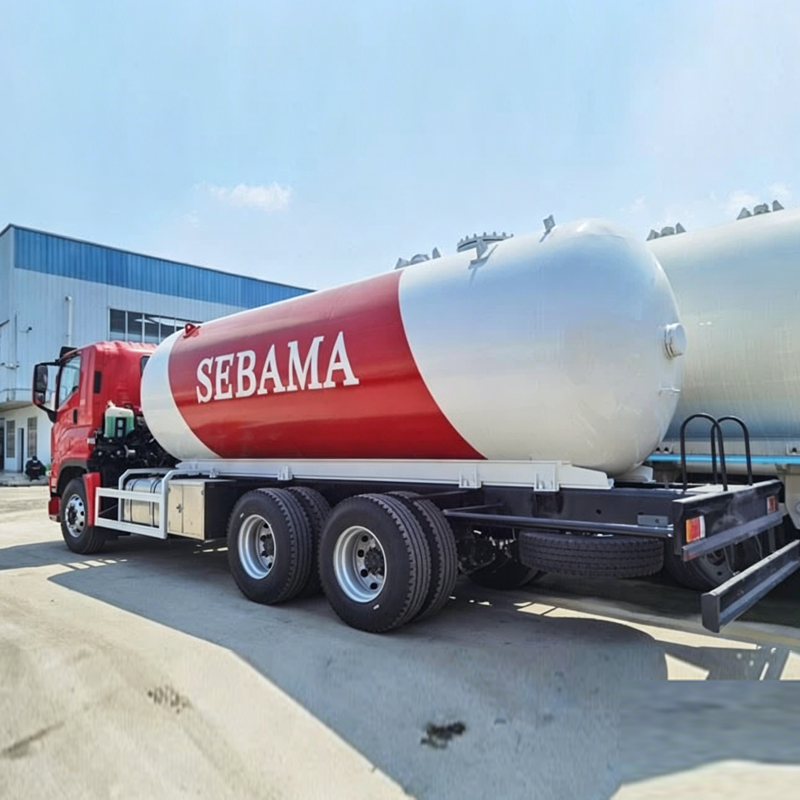

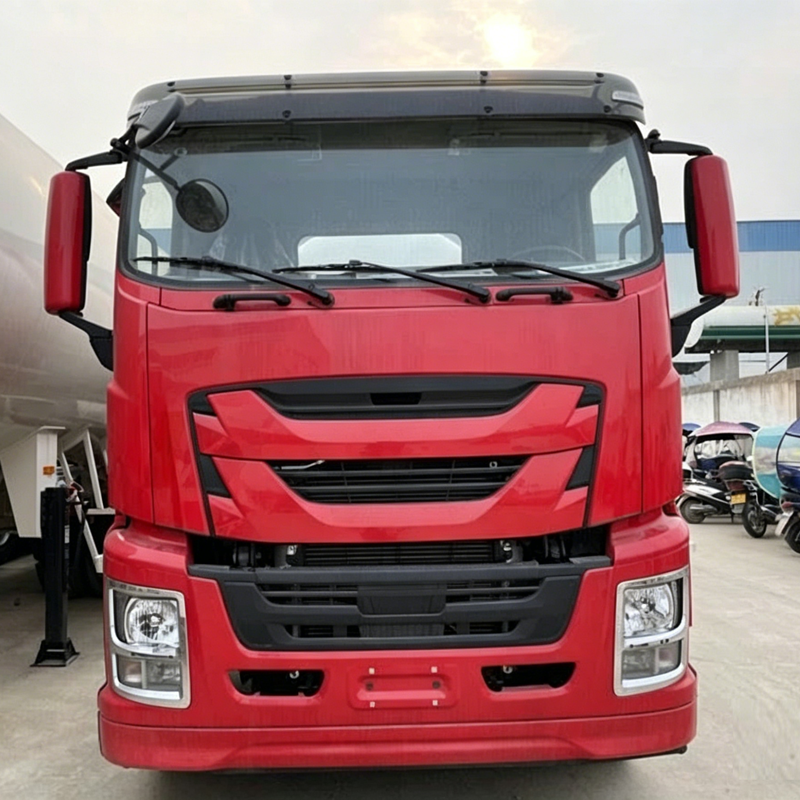

ISUZU GIGA 6X4 350HP 10MT 20,000LLPG Tanker Truck

1.lpg truck: Liquid Petroleum Gas, Propane, Butane, Liquid Ammonia, etc.

2.Available tank sizes of LPG storage tank: 5m³~200m³, 2.5ton~100tons.

3.Tank Design Standard : GB-150, ASME VIII Division I U STAMP, CCC, ISO9001 : 2008.

4.Tank Testing: 100% Radiaographic Test, Magnetic Power Test, Water Pressure.

5. Optional for lpg gas plant equipments: LPG pump and motor, LPG compressor, volume flow meter, filling scales and lpg dispenser,ball valves,check valves,non-return valves,glass valve,strainer,by-pass valve and so on.

Item No.	Parameters
Chassis Parameters
Overall Dimension	910025003450mm
Driving Model	left hand drive
Payload	10,000 kg
Wheel Base	4565+1370 mm
Front Axle	7000kg
Rear Axle	13000kg*2
Engine	ISUZU 6UZ1-TCG51 engine
Engine horsepower	350 HP EURO V
Displacement	9839 mL (Diesel)
Max Driving Speed	80 km/h
Cabin	2~3 Passenger allowed, left hand driving,with A/C
Tire	12.00R22.5 or 315/80R22.5 (10 pieces with one spare)
LPG tank
Volume:	20cbm
Tank material:	Q345R
Tank diameter:	2050mm
Tank thickness:	10mm for tanker shell and 12mm for end plate
Tank length:	6445mm
Filling gas	Propane(LPG)
Design Pressure:	1.61Mpa
Accessory
Safety Valve - No.	1
Safety Valve - Type	A412F-2.5-16
Safety Valve - Nominal pressure	2.5Mpa
Safety Valve - Opening pressure	1.86-1.94Mpa
Safety Valve - Closing pressure	>1.67Mpa
Level gauge	Float-ball type/at rear of LPG tanker
Tool Box	1
Valve Box	1 with flange vapour phase and liquid phase
Thermometer	1
Pressure Gauge	1
Emergency Valve	1
Fender	Steel
Fire Extinguisher	2
Anti-static Tape	1
Painting	As required
