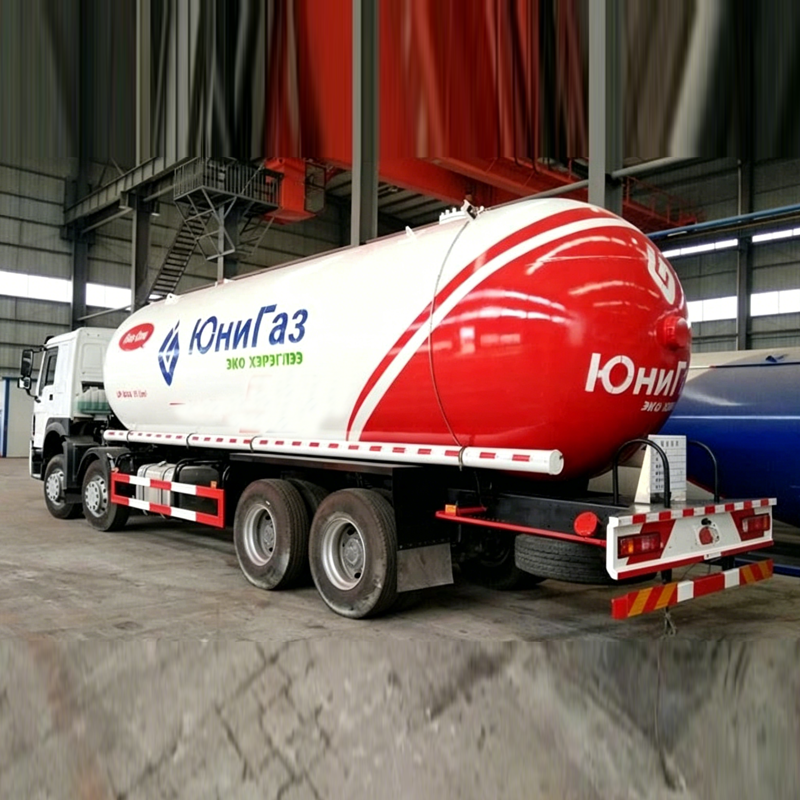

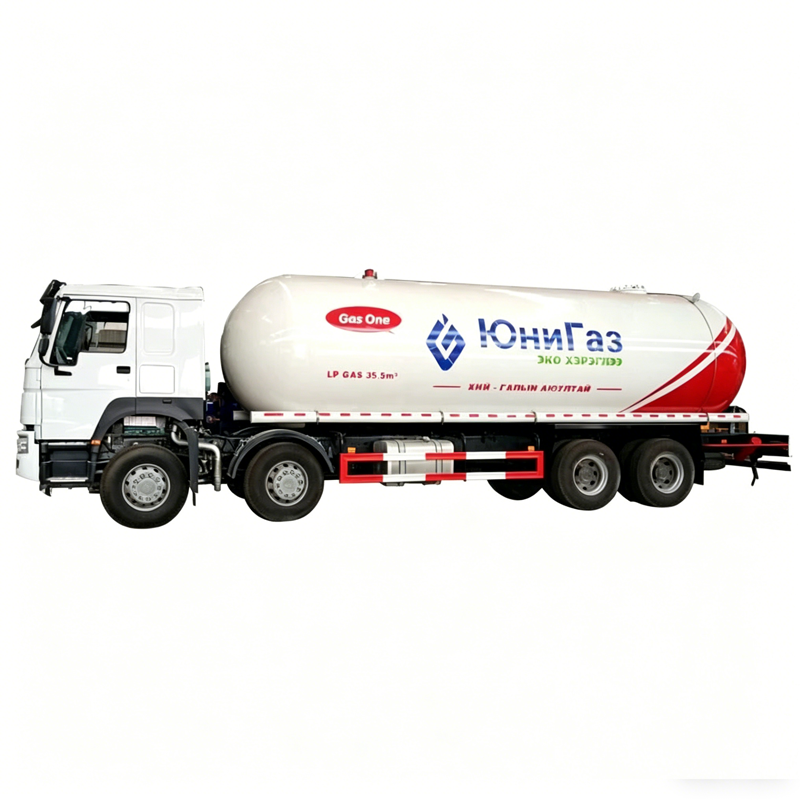

Howo 8X4 15MT 15Tons LPG BobtailTruck

1.lpg truck: Liquid Petroleum Gas, Propane, Butane, Liquid Ammonia, etc.

2.Available tank sizes of LPG storage tank: 5m³~200m³, 2.5ton~100tons.

3.Tank Design Standard : GB-150, ASME VIII Division I U STAMP, CCC, ISO9001 : 2008.

4.Tank Testing: 100% Radiaographic Test, Magnetic Power Test, Water Pressure.

5. Optional for lpg gas plant equipments: LPG pump and motor, LPG compressor, volume flow meter, filling scales and lpg dispenser,ball valves,check valves,non-return valves,glass valve,strainer,by-pass valve and so on.

立即查询

Item No.	Parameters
Chassis Parameters
Overall Dimension	11800x2490x3690mm
Driving Model	Left hand drive or Right hand drive
Gross Vehicle Weight	31000 kg
Curb Weight	14910kg
Payload	15000kg~16000kg
Wheel Base	1800+4600+1350 mm
Front/rear Tread	2022/1830 mm
Approach/Departure Angle	16/19 degree
Front Axle	HF9,9000kgX2
Rear Axle	HC16,16000kgX2(Heavy duty design for rough road)
Engine	WD615.47,4-stroke direct injection,6-cylinder in-line with water cooling,turbo-charging and inner cooling
Engine horsepower	371HP EUROII
Displacement	9760mL (Diesel)
Max Driving Speed	95 km/h
Gearbox	HW19710 with HW70 PTO
Cabin	Standard HW76 cabin,2~3 Passenger allowed,with Air Conditioner
Tire	12R22.5 (12 pcs with one spare)
Exhaust Pipe	At front of Cabin for safety
LPG tank
Volume:	35500liters
Tank material:	Q345R
Tank diameter:	2350mm
Tank thickness:	10mm
End plate thickness:	12mm
Tank length:	8960mm or as designed
Gas phase	Flange type,DN50/2" or according to customer request
Liquid Phase	Flange type,DN50/2" or DNDN80/3" or according to customer request
Filling gas	Propane(LPG)
Design Pressure:	1.61Mpa
Testing pressure	2.21Mpa
Refilling Accessory
Chinese LPG Pump	Chinese brand YQ15-5 Flow rate:15.5M3/H 10 Mpa inlet pressure 780 r/min for rotation speed
CORKEN LPG Pump(optional)	CORKEN pump Z2000EGAEE Inlet 2" NPT and Outlet 2" NPT Max. RPM:800
Radiator	1 pc(to avoid high temperature of hydraulic oil during operation)
Hydraulic motor	1 pc
Flow meter	English remarks with printer for receipt 55~550 L/min 2500Kpa(25 Bar) max. Working pressure
Filling hose	15M
Filling nozzle(optional,not necessary)	REGO filling nozzle for small LPG tank Or home cylinder filling nozzle
Level Gauge	Chinese Float Ball type,at the rear of tank
Safety Valve	1,DN80
Tool and Valve Box	Located at side of LPG bobtail
Thermometer	1 pc
Pressure Gauge	2 pc
Emergency shut off Valve	3 pcs with witch inside valve box and at rear of truck
Fender	Steel
Fire Extinguisher Holder	2 sets
Anti Static line	1 set
