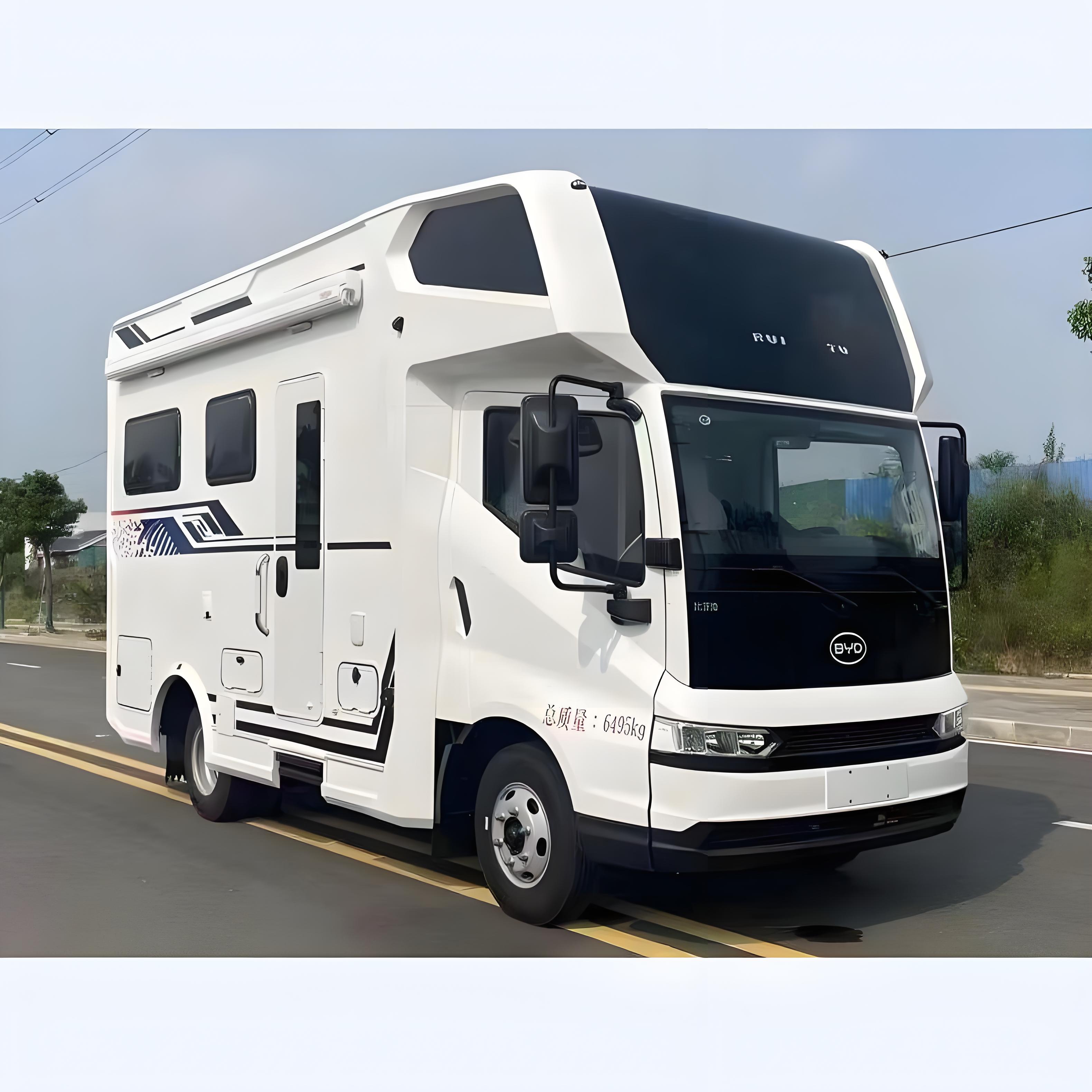

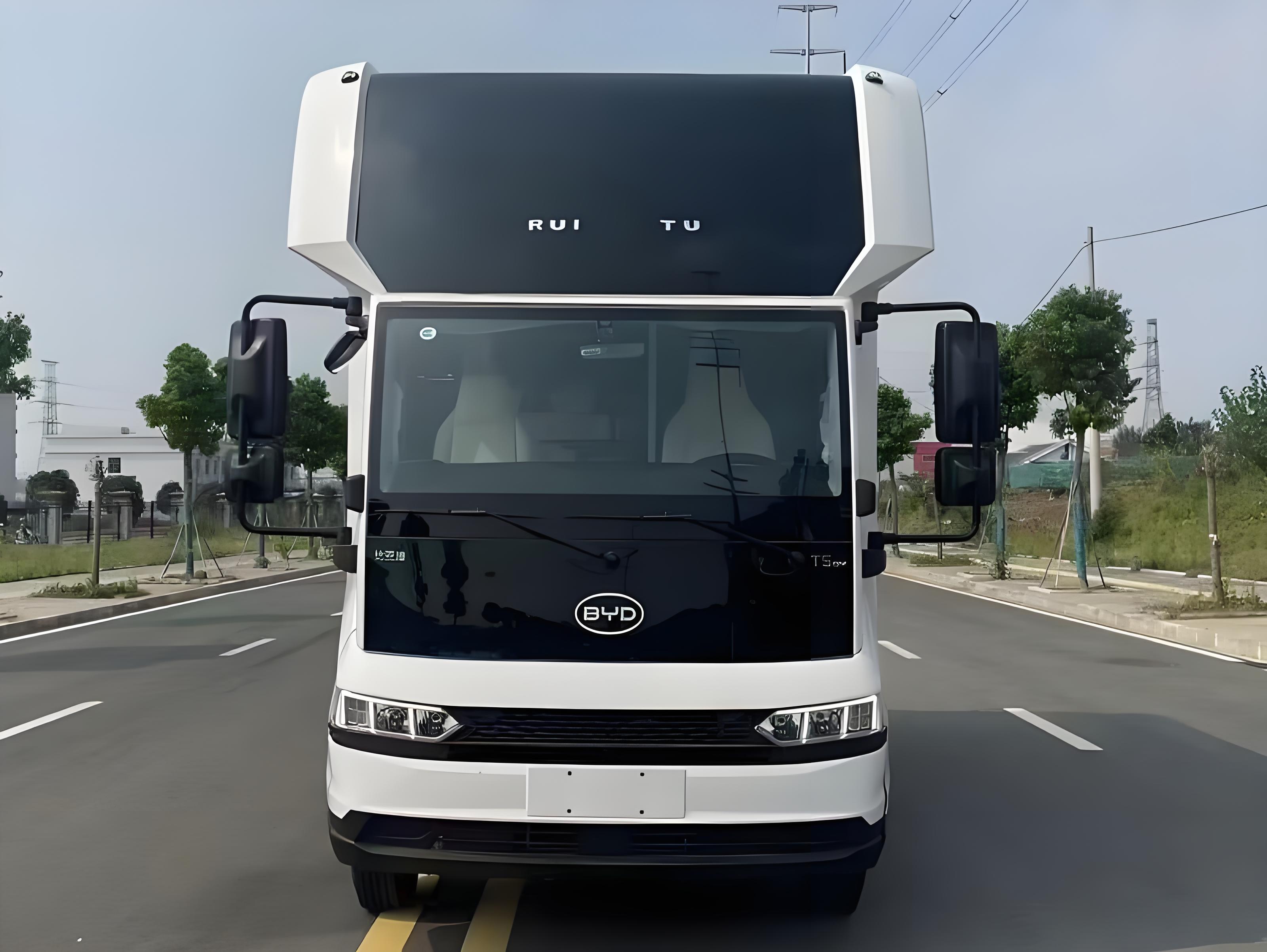

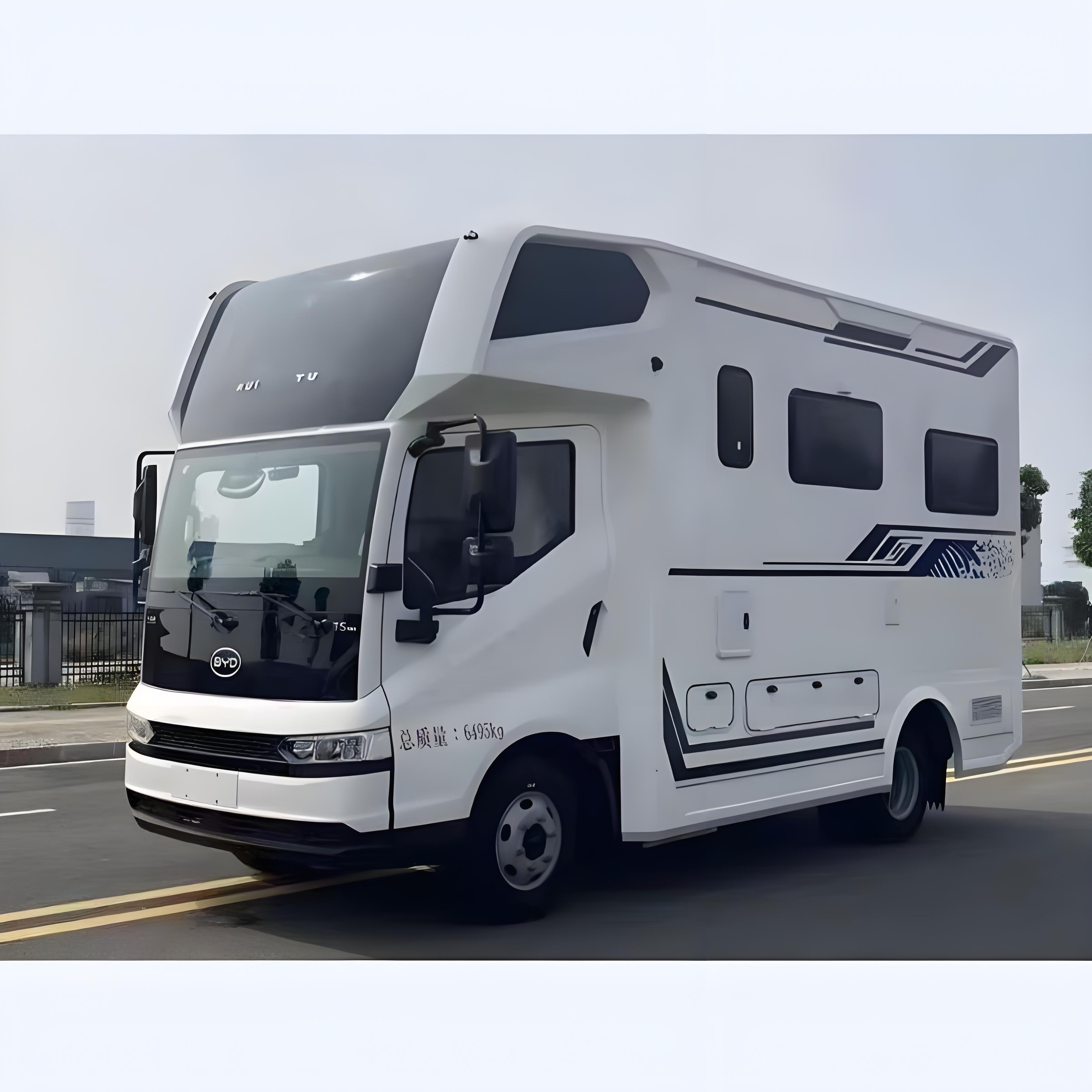

BYD Hybrid Automatic Transmission RV Caravan | |||
Basic parameters | |||
Vehicle model | CLW5060XLJHEV | Overall dimensions | 5995×2450×3350 (mm) |
Curb weight | 4800 kg | Chassis model | BYD1060A3HEV4C1 |
GVW | 6500 kg | Wheel base | 3360 mm |
Fuel tank volume | 100 L | Tire specification | 7.00R16LT 14PR |
Rated passenger | 6 persons | Number of tires | 6 |
Drive type | Rear-wheel drive dual tires | ||
Power configuration: | 800W solar energy, 24V 400Ah iron-lithium battery, 5000W sine wave inverter | ||
Bed layout: | Forehead bed, sofa bed, rear horizontal bed | ||
Water tank capacity | Clean water tank 300L, sewage tank 80L, black water tank 40L | ||
Basic equipment | 24V Canglang refrigerator (132L), 3kg washing machine, LCD TV, 220V household 1.5P air conditioner, water heater, etc. | ||
1. The cab is with a 1+2 seat layout. The cockpit and living area are connected, which facilitates communication between the front and rear. 2. In terms of power, the vehicle is equipped with BYD's independent permanent magnet synchronous motor, 18.3kWh blade battery and flat wire motor integrated bridge, and the maximum power of the drive motor is 150kW. 3. In terms of safety assisted driving, the vehicle is equipped with cruise control, reversing r-adar, ABS, smart key, reversing image + four-way monitoring, etc. 4. The living area is soundproofed and noise-reduced to ensure a comfortable living environment. The interior uses E0 environmentally friendly panels, wear-resistant floor leather and waterproof load-bearing panels, specially designed for RVs. | |||
Engine parameters | |||
Engine model | BYD476ZQG | Displacement | 1497 ml |
Engine power | 104kw / 141hp | Manufacturer | Fudi Power Co., Ltd. |
Max speed | 100 km/h | ABS system model | BSC-T |
Fuel type | Gasoline/electric hybrid | Transmission | Automatic |
Energy storage type | Lithium iron phosphate battery, Drive motor model/type/rated power/peak power: TZ200XSY/permanent magnet synchronous motor/70kW/150kW. | ||
