Parameter | Specification |
Chassis Model | JX6533TB-M6 |
Engine Model | DURATORQ4D2068 |
Engine Type | High-pressure Common Rail |
Fuel Type | Diesel |
Displacement (ml)/Power (kW) | 1998 / 90 |
Emission Standard | Euro V/VI |
Exterior Dimensions (mm) | 5521,5341,5800×2032×[2460,2590] |
Interior Dimensions (mm) | 2600/3800×1750×1730 (L×W×H) |
Leaf Springs (F/R) | -/1, -/2 |
Number of Tires | 4 |
Tire Size | 215/75R16LT |
Track (F/R, mm) | 1736 / 1720 |
Wheelbase (mm) | 3300 |
Axle Load (kg) | 1570 / 1940 |
Number of Axles | 2 |
Gross Weight (kg) | 3510 |
Curb Weight (kg) | 2560 |
Rated Capacity (incl. driver) | 5-7 persons |
Approach/Departure Angle (°) | 20 / 25 |
Front/Rear Overhang (mm) | 1014 / 1207 |
Max Speed (km/h) | 156 |
Transmission | 5F+1R |
Fuel Tank Capacity (L) | 80 |
Category | Item | Basic | Care | Premium |
Safety | ABS Brake System | ✓ | ✓ | ✓ |
Central Door Locking | ✓ | ✓ | ✓ | |
Driver Airbag | ✓ | ✓ | ✓ | |
Comfort | Power Windows | ✓ | ✓ | ✓ |
Remote Key | ✓ | ✓ | ✓ | |
Factory HVAC (Driver Cabin) | 2 sets | 2 sets | 2 sets | |
Triple Driver Seats | ✓ | ✓ | ✓ | |
Exterior | White Body + Red Reflective Strips | ✓ | ✓ | ✓ |
2/3 Frosted Medical Window Film | ✓ | ✓ | ✓ | |
Warning System | 100W Siren | ✓ | ✓ | ✓ |
Front 3-Eye Warning Light | ✓ | - | - | |
Rear Beveled Strobe Lights | 2 | 2 | 2 | |
Side Blue/White Strobe Lights | 6 | 4 | 4 | |
Electrical | Pure Sine Inverter (500W/1000W) | 500W | 500W | 1000W |
220V Sockets | 2 | 2 | 4 | |
12V Sockets | 1 | 1 | 2 | |
UV Disinfection Lamp | ✓ | ✓ | ✓ | |

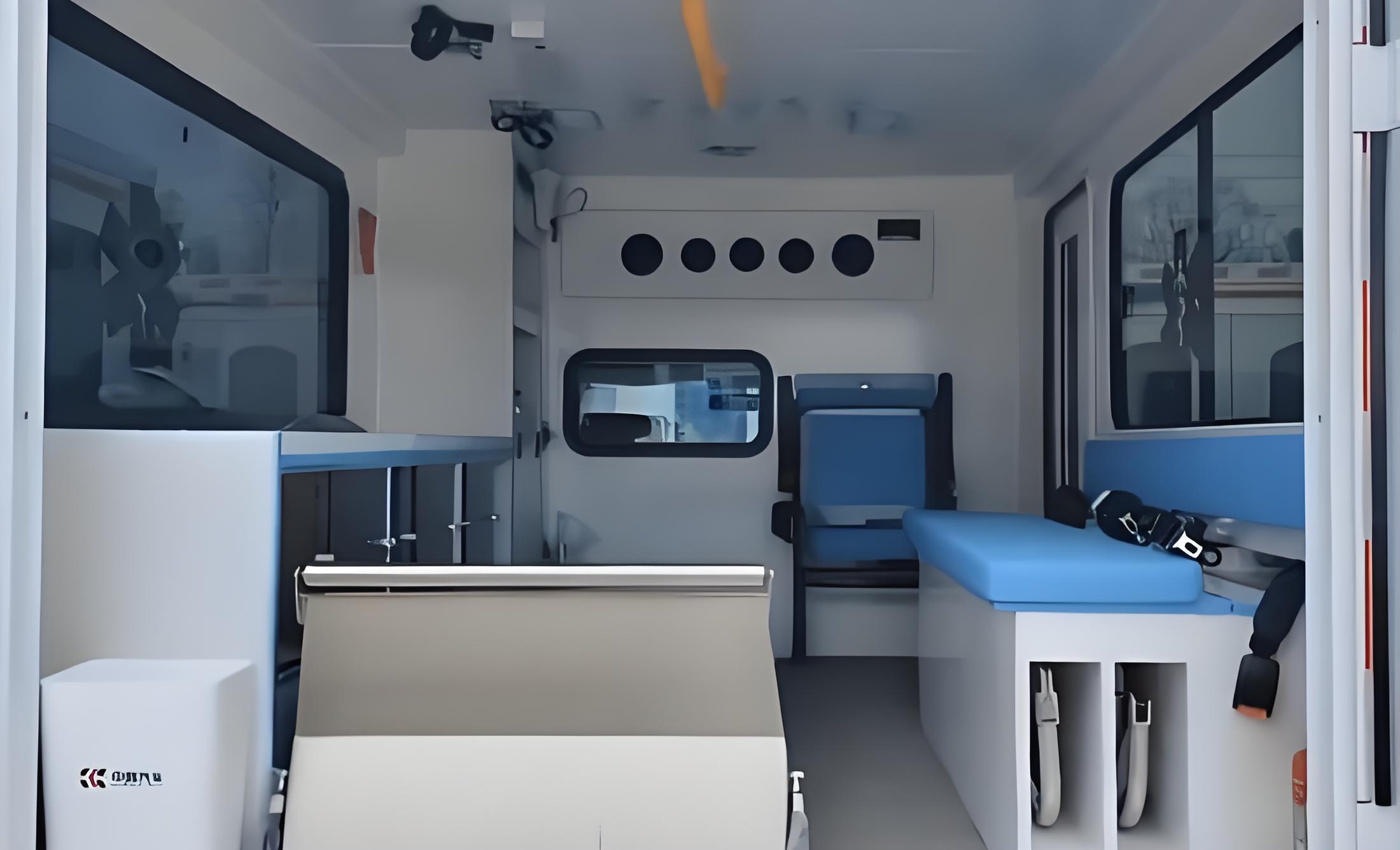

Medical Cabin | Oxygen System (10L Cylinders x2) | ✓ | ✓ | ✓ |
Auto-loading Stretcher | ✓ | ✓ | ✓ | |
Sliding IV Pole | - | - | ✓ | |
Antibacterial Flooring (Blue) | ✓ | ✓ | ✓ |
Feature | Basic | Care | Premium |
Partition | Sliding Window Partition | PVC Partition | Polymer Hard Partition |
Storage | Left Medical Cabinet | Left Overhead Cabinet | Triple-layer Equipment Rack |
Oxygen System | 2 Ports + 1 Humidifier | 2 Ports | 2 Ports + Ventilator Port |
Seating | 1 Doctor + 2 Bench Seats | 1 Doctor + 2 Bench Seats | 3 Doctor Seats |
Ventilation | Bidirectional Fan | Bidirectional Fan | Electric Vent Fan |
Ceiling | Original Roof | Original Roof | Polymer Hard Top |
Item | Availability |
Negative Pressure System | Customizable |
Rear Step | ✓ |
Navigation + Rearview Camera | ✓ |
Stretcher Compartment | ✓ |
Scoop/Stair/Folding Stretchers | ✓ |
ABS Interior Trim | Care/Premium only |
Item | Description | Availability |
1 | Negative pressure system | Customizable |
2 | Rear-facing foldable seat | Optional |
3 | Stretcher compartment | Optional |
4 | Scoop/stair/folding stretchers | Optional |
5 | Middle/rear boarding steps | Optional |
6 | Three-tier equipment rack | (Care Model only) |
7 | Three-position adjustable stretcher | (Care Model only) |
