New 1suzu Pick-up ambulance Specification | |
Model | PST5043XJHN |
Overall dimensions(mm) | 5450*2011*2676 |
Wheelbase(mm) | 3406 |
GVW (kg) | 3550 |
Kerb Weight (kg) | 2440 |
Ground clearance (mm) | 178 |
Cab | Double row,2+3 seats,A/C,USB... |
Fuel Type: | Diesel |
Fuel tank volume （L）： | 76 |
Engine Model | 4KH1CT6H1 |
Engine works | 4-stroke direct injection , 4-cylinder in-line with water cooling, turbo-charging and inter-cooling，diesel |
Exhaust displacement ml: | 2999 ml |
Engine power : | 143HP/105Kw |
Maximum torque (Nm/rpm) | 320 |
Emission standards | Euro 6 |
Drive System | 4x4 |
Transmission | MSB 5 speed |
Max Speed km/h: | 140 |
Tire Size | 245/70R17LT, 4pcs + 1 spare tire |
Brake system | Front ventilated disc type, rear solid disc type |
Rated capacity (including driver) | 7-8 |
Medical Alert Appearance | |

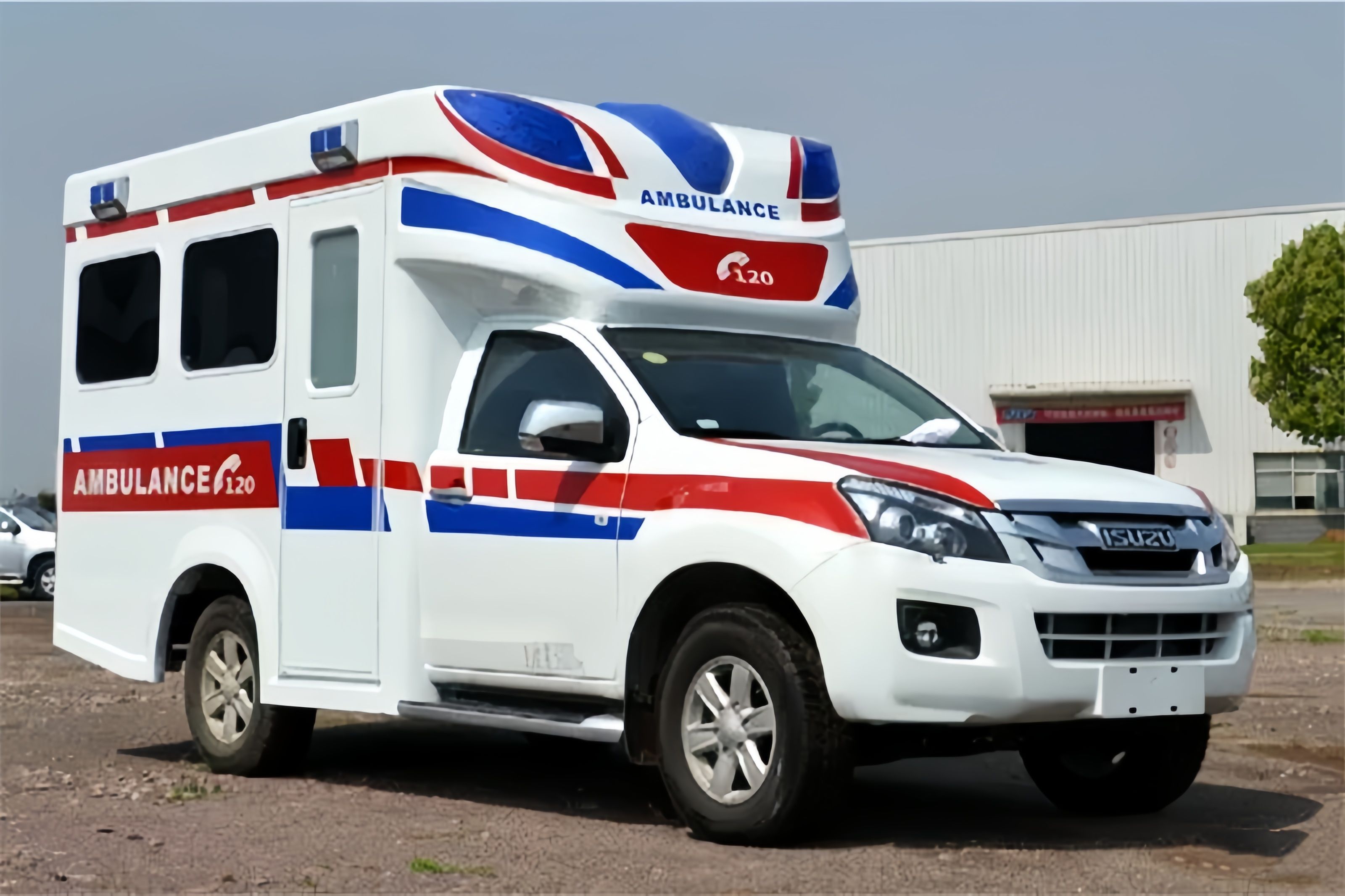

Appearance of vehicle | The car body is white, with body color strips and first aid signs, bright and eye-catching colors. The windows of the medical cabin are pasted with dark colors. Solar film (black film on the left window of the medical cabin, 2/3 frosted glass film on the right rear window) |
Warning lights | 1. Alarm assembly 1 set: embedded warning light, 100W speaker, alarm handheld. 2. LED sign light (strobe) 1 set: 64 LED (blue), 2 LED (white), a total of 6 lights. |
Medical cabin rescue facilities | |
Rescue system | Automatic loading stretcher: The frame is made of high-quality aluminum alloy, which is light, strong and easy to operate. Through operation, the stretcher carrying the patient can be pushed into or pulled out of the ambulance quickly and smoothly. The backrest is supported by an adjustable structure, and the backrest is adjustable. It is equipped with a patient safety belt to facilitate the fixation between the patient and the stretcher. |
Stretcher assistance | Made of high-quality stainless steel, it assists the stretcher in getting on and off the vehicle. |
Infusion bottle holder | Two foldable infusion bottle holders (slide rail type) are installed on the top of the medical cabin. |
Oxygen supply system | Special vehicle oxygen supply system assembly, equipped with 2units 10L steel oxygen cylinders, hidden oxygen pipeline, including 2 oxygen terminals, oxygen inhaler and pressure regulating valve |
Medical power supply system | |
Medical cabin power system | 1. 1000W intelligent inverter 2. Power control: 1 set of boat-shaped piano-style control panel. 3. 4 220V sockets |
Cabin lighting | One set of embedded lighting (4 LEDs), two embedded infusion spotlights and one backfield lighting are installed on the inner ceiling. |
Intercom System | An intercom system is installed between the medical cabin and the cockpit. |
Disinfection system | |
UV disinfection lamp | Install a UV disinfection lamp on the upper part of the middle partition |
Medical cabin ventilation system | 1 ventilation fan on the top of the medical cabin |
Medical cabin air conditioning and heating system | |
Air conditioning/heating | 1 set of independently controllable rear air conditioning and rear heating, with independent cooling and heating controls to reasonably regulate the temperature in the medical cabin. |

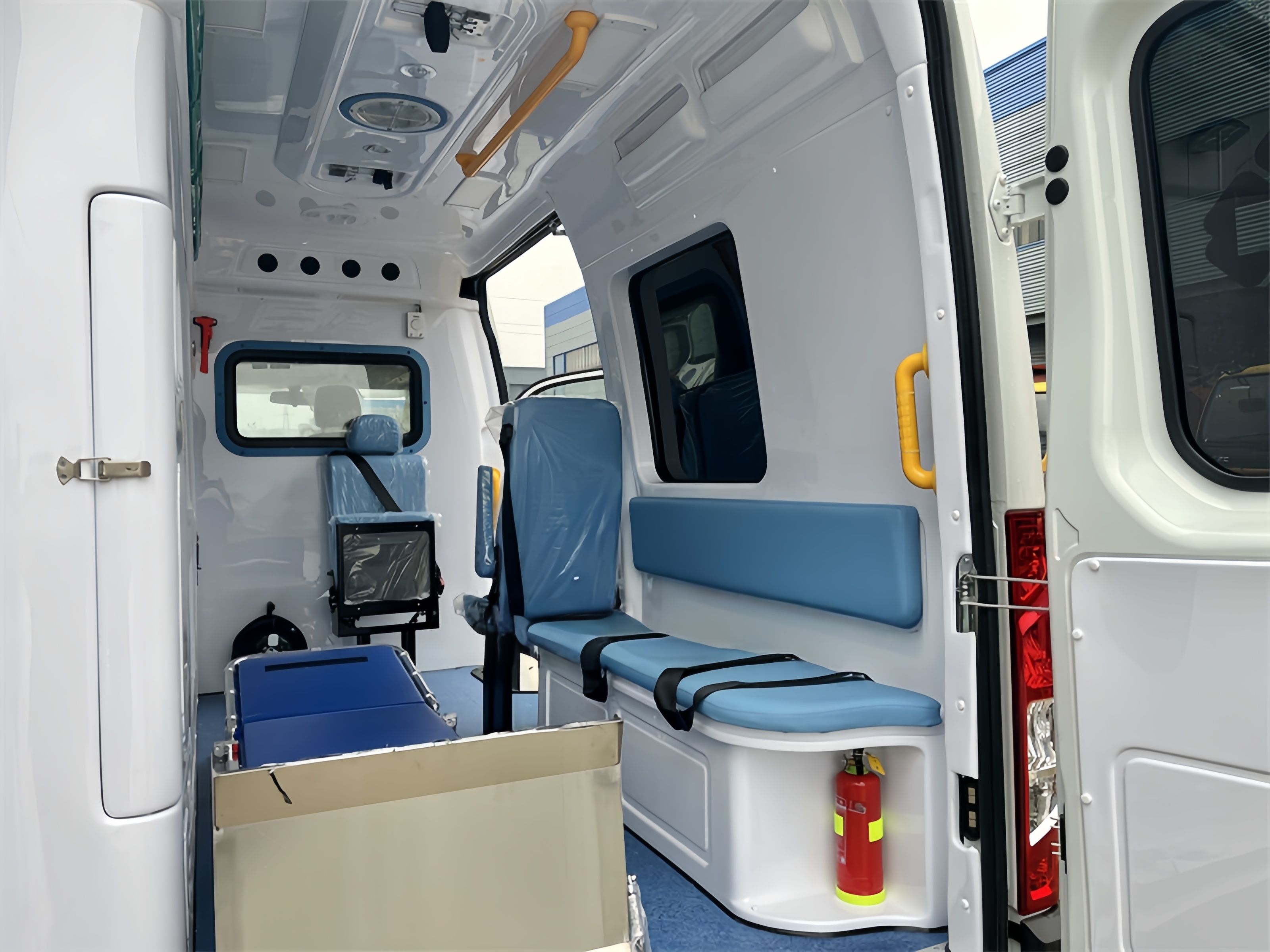

Medical cabin cabinet interior configuration | |
Middle partition wall assembly | A set of new environmentally friendly material partition wall is installed between the cab and the medical cabin, and a sliding glass observation window is set on the partition wall to facilitate observation and communication between the front and rear cabins. |
Cabinet assembly | Install 1 set of long equipment cabinet made of new environmentally friendly materials, with sliding window storage space on the cabinet body Install 1 set of oxygen cylinder cabinet made of new environmentally friendly materials, which can accommodate 2 10L oxygen cylinders; Install 1 set of wall cabinet made of new environmentally friendly materials, with sliding window structure for the wall cabinet door, and integrated storage and other functions. |
Medical cabin interior | Medical cabin interior: Made of flame-retardant composite materials, waterproof, mildew-proof, antibacterial, and easy to clean. Medical cabin floor: Made of integral new lightweight materials, the medical floor is acid-base, corrosion-resistant, wear-resistant, anti-static, and easy to clean. The raised edges around the edges prevent dust accumulation and are anti-slip, and are easy to wash with water. |
Auxiliary facilities | |
Seats | 1 set of seats: right cabinet-style bed for two persons made of PVC material, with seat cushion and backrest covered with leather; right cabinet-style bed with single folding seat in front. |
Fire extinguisher | 1 fire extinguisher (1KG) |
Dirt Bucket | 1 units 5L stainless steel waste bucket Safety handrail Top safety handrail 1 pair |
Category | Item | Basic | Care | Premium |
Safety | ABS Brake System | ✓ | ✓ | ✓ |
Central Door Locking | ✓ | ✓ | ✓ | |
Driver Airbag | ✓ | ✓ | ✓ | |
Comfort | Power Windows | ✓ | ✓ | ✓ |
Remote Key | ✓ | ✓ | ✓ | |
Factory HVAC (Driver Cabin) | 2 sets | 2 sets | 2 sets | |
Triple Driver Seats | ✓ | ✓ | ✓ | |
Exterior | White Body + Red Reflective Strips | ✓ | ✓ | ✓ |
2/3 Frosted Medical Window Film | ✓ | ✓ | ✓ | |
Warning System | 100W Siren | ✓ | ✓ | ✓ |
Front 3-Eye Warning Light | ✓ | - | - | |
Rear Beveled Strobe Lights | 2 | 2 | 2 | |
Side Blue/White Strobe Lights | 6 | 4 | 4 | |
Electrical | Pure Sine Inverter (500W/1000W) | 500W | 500W | 1000W |
220V Sockets | 2 | 2 | 4 | |
12V Sockets | 1 | 1 | 2 | |
UV Disinfection Lamp | ✓ | ✓ | ✓ | |
Medical Cabin | Oxygen System (10L Cylinders x2) | ✓ | ✓ | ✓ |
Auto-loading Stretcher | ✓ | ✓ | ✓ | |
Sliding IV Pole | - | - | ✓ | |
Antibacterial Flooring (Blue) | ✓ | ✓ | ✓ |
Feature | Basic | Care | Premium |
Partition | Sliding Window Partition | PVC Partition | Polymer Hard Partition |
Storage | Left Medical Cabinet | Left Overhead Cabinet | Triple-layer Equipment Rack |
Oxygen System | 2 Ports + 1 Humidifier | 2 Ports | 2 Ports + Ventilator Port |
Seating | 1 Doctor + 2 Bench Seats | 1 Doctor + 2 Bench Seats | 3 Doctor Seats |
Ventilation | Bidirectional Fan | Bidirectional Fan | Electric Vent Fan |
Ceiling | Original Roof | Original Roof | Polymer Hard Top |
Item | Availability |
Negative Pressure System | Customizable |
Rear Step | ✓ |
Navigation + Rearview Camera | ✓ |
Stretcher Compartment | ✓ |
Scoop/Stair/Folding Stretchers | ✓ |
ABS Interior Trim | Care/Premium only |
Item | Description | Availability |
1 | Negative pressure system | Customizable |
2 | Rear-facing foldable seat | Optional |
3 | Stretcher compartment | Optional |
4 | Scoop/stair/folding stretchers | Optional |
5 | Middle/rear boarding steps | Optional |
6 | Three-tier equipment rack | (Care Model only) |
7 | Three-position adjustable stretcher | (Care Model only) |
