[Overall Technical Parameters ] | ||

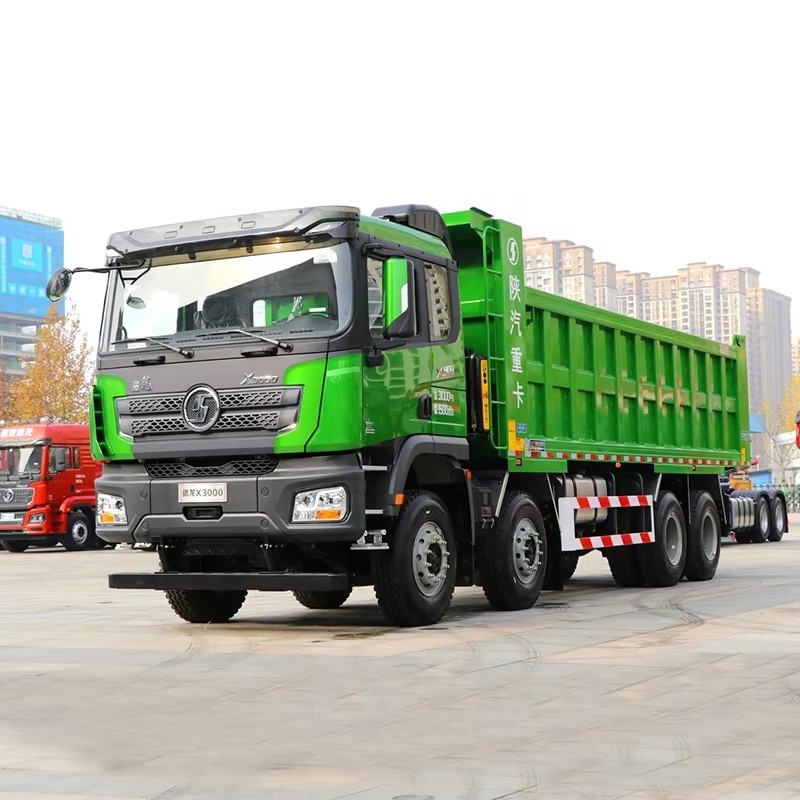

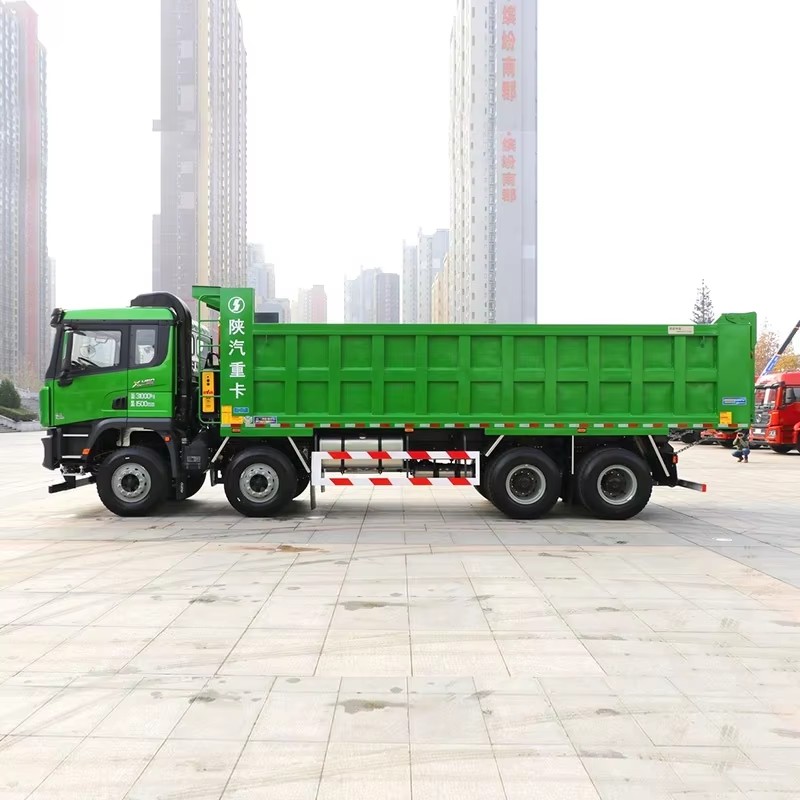

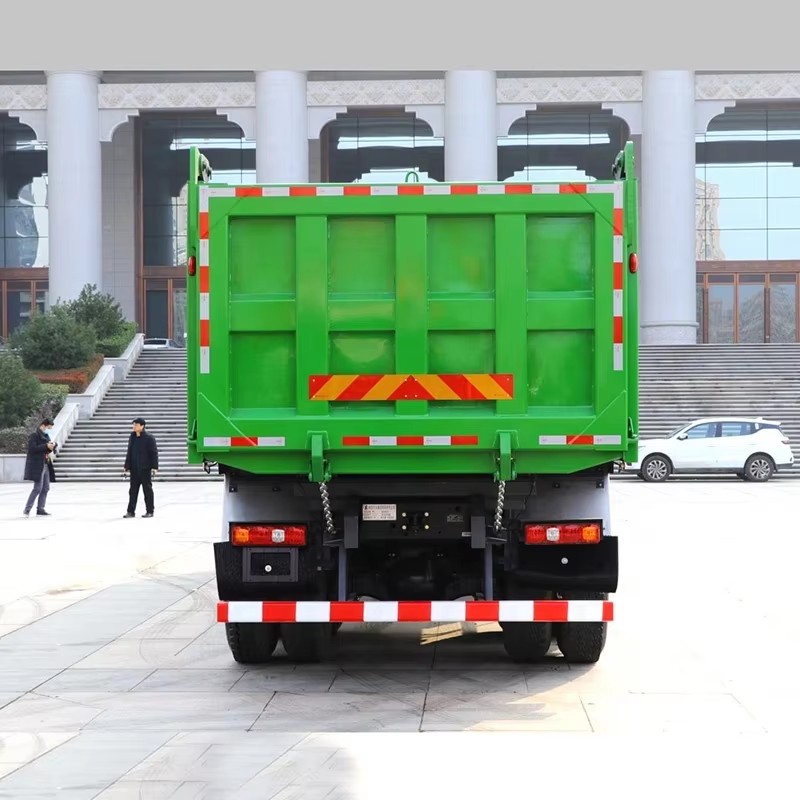

Product Name | Dump Truck Mining Tipper Truck | |
Overall Dimensions(mm) | 10950x2550x3500 | |
Curb weight(Kg) | 15500 | |
Loading Capacity(Kg) | 15370 | |
Total Mass(Kg) | 31000 | |
Cargo Tank Dimension（mm） | 8000x2350x1500 | |
Cargo Tank Volume(m³) | 28 | |
Tank Body Material | Carbon Steel | |
Cargo Tank thickness（mm） | Side 6 Bottom 8 | |
Cargo Tank Lifting method | Hydraulic Cylinder Lifting | |
Number of Cylinders（pcs） | 1 | |
Position of Cylinder | Girder Front/Middle | |
Cylinder Diameter（mm） | 180 | |
Door Position | Rear/Side/Top | |
[Chassis Technical Parameters] | ||
Chassis brand | Shacman | |
Drive Method | 8*4 | |
Driving Position | Left or Right Hand Drive | |
Steering Device | Power Assisted Steering | |
Wheelbase(mm) | 1800+4175+1400 | |
Engine Brand and Model | Weichai Power/WP12.460E62 | |
Max engine power(Kw) | 338 | |
Engine Displacement(ml) | 11600 | |
Engine emission standard | Euro 6 | |
Number of Engine cylinders | 6 | |
Fuel Type | Diesel | |
Gearbox | 12 Speed Forward 1 Reverse | |
Front/Rear Axle(T) | 7/7/18 | |
Suspension | Multi leaf springs | |
Brake Systerm | Front/Rear Drum full air braking | |
Wheels and Tire Spec | 12+1/( 12.00R20LT) | |
Cab Configuration | Single row cab, air conditioning, radio, MP3 and USB port | |
Rated Voltage | 24V,DC | |
