Shaanxi Auto Delong Front Four After Eight Trucks Equipped with 12-20 Tons of on-Board Crane Truck

1. Construction sites: Boom Crane Truck is widely used in construction sites to transport and install heavy building materials such as steel bars, concrete slabs, and steel beams. It is equipped with a lifting arm that can rotate and telescope, allowing operators to easily hang heavy objects at high places and perform precise installation and positioning.

2. Shipyard: In shipyards, Boom Crane Truck is often used for loading, unloading and repairing large ships. It can lift heavy objects such as engines, auxiliary equipment, etc. from land and place them accurately on the ship. In addition, hull repairs and painting jobs can be carried out due to the large extension capacity of its boom.

3. Warehouse: In a warehouse, the Boom Crane Truck can be used to move goods, especially bulky or heavy items. The flexibility and precision of its crane arm allow operators to easily lift goods from shelves and place them at the desired location, thereby increasing operational efficiency.

4. Mines and quarries: In these places, Boom Crane Truck is usually used to transport and load heavy materials such as ore and stone. Its powerful lifting capacity and stability can cope with various harsh terrain and environmental conditions, providing reliable support for production in mines and quarries.

5. Car rescue: Boom Crane Truck can also be used for car breakdown rescue. When a vehicle breaks down on the road, it can lift the failed vehicle through its crane arm and move it safely to the designated location.

Crane truck, the full name is truck-mounted lifting transport vehicle.
In some places Also known as car crane, self-crane and so on. It is a kind of equipment that integrates hoisting and transportation, and realizes the lifting, turning, and hoisting of goods through hydraulic lifting and telescopic systems.

1.the truck crane is widely used in port, workshop, construction site and other places lifting and handling machinery and also in lifting equipment, rescue,etc.

2.the truck crane adopts the famous brand of chassis,which has good mobility, high reliability and convenient after-sale service.

3.The design of the whole crane is more reasonable than other kinds of cranes, saving raw materials and meeting performance requirements.

4.New type cab, adjustable suspension seat, air motive shed, electron-hydraulic proportional handle and the push-button control,large color display and new dashboard, electric control outrigger, electric control engine, electric control hydraulic torque converter gearbox, brake steering drive axle, easy and safe to operate.

Product Parameters

Vehicle description
Overall dimension12000*2630*2970mm
GVW31000kg
Curb weight19300kg
Chassis brand
Traction type8*4, left hand drive
Chassis description
Chassis modelSX5315JSQDT456
Cab medium and long flat-top cab, air main seat, four-point hydraulic mount, ordinary rearview mirror, single refrigeration air conditioner, electric window lifter, manual flip, metal bumper, two-stage boarding pedal, transmission telescopic shaft control,  headlight rear taillight protection fence, SHACMAN logo, full Portuguese logo
Wheelbase2100+4575+1400mm
Tire specification12.00R20
Tire quantity12+1 units
EngineEngine modelWP10.380E22
Emission levelEuro 2
Displacement/output9726ml/280kw
Horse power380hp
Gear boxModel10JSD180+QH50
Number of gears10 forward gears& 2 reverse
Brake systemService brake: dual circuit compressed air brake;
Parking brake(emergency brake): spring energy, compressed air operating on rear wheels;
Auxiliary brake: engine exhaust brake.
AxleFront9.5T*2 -MAN technology
Rear16T*2-MAN technology, hub reduction, ratio 5.262
SuspensionFrontLeaf springs
RearLeaf springs
Fuel tankerTypeAluminium fuel tank
Capacity400L
Up-parts description
Crane TypeSQS500-5
Stage5 stages
Lifting capacity20T
Rotating angle360°
Cargo boxDimension8000*2300*550mm
MaterialCarbon steel
ThicknessSide 2mm, bottom 3mm

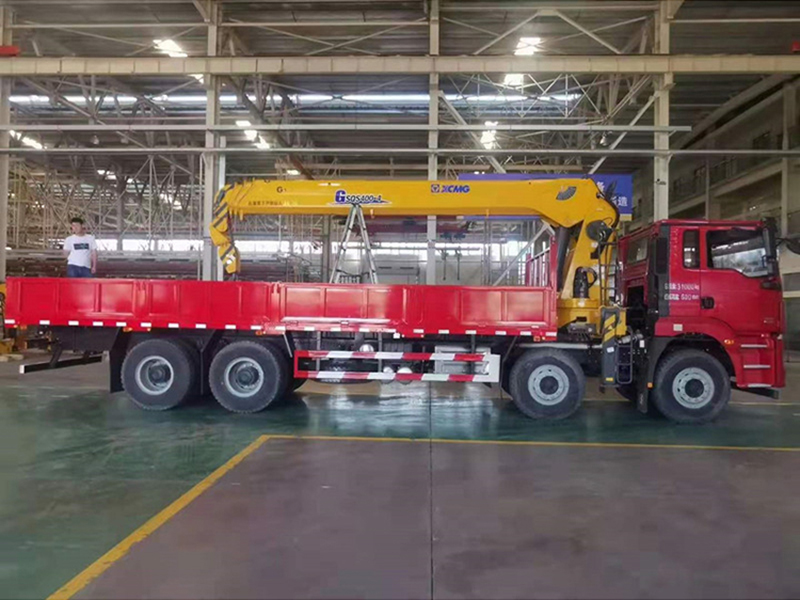

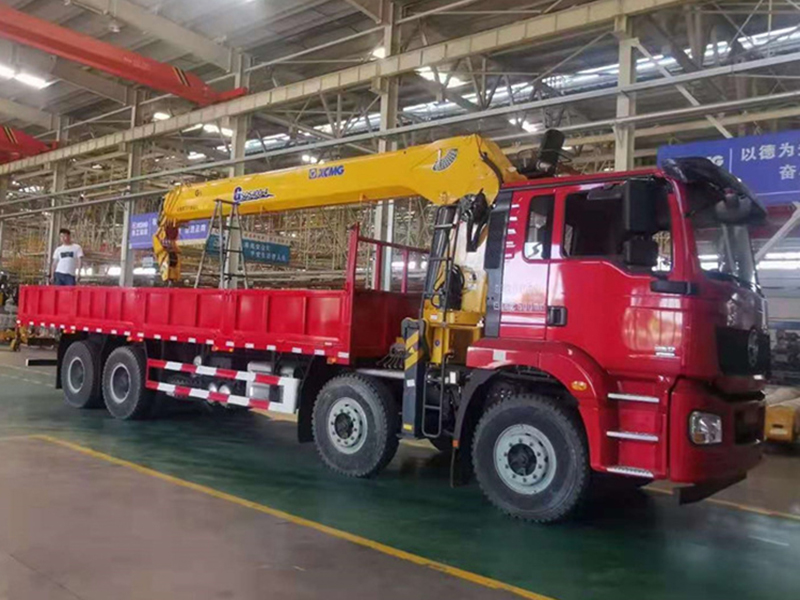

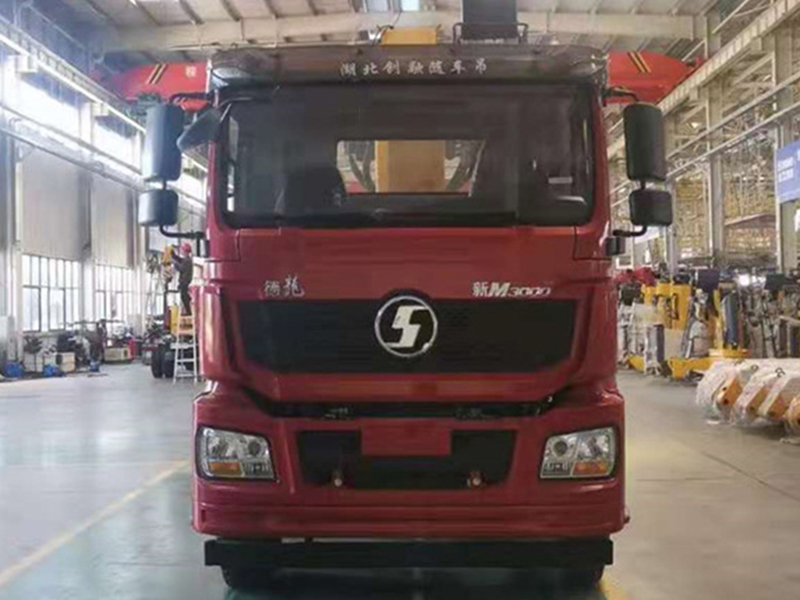

Product Details
