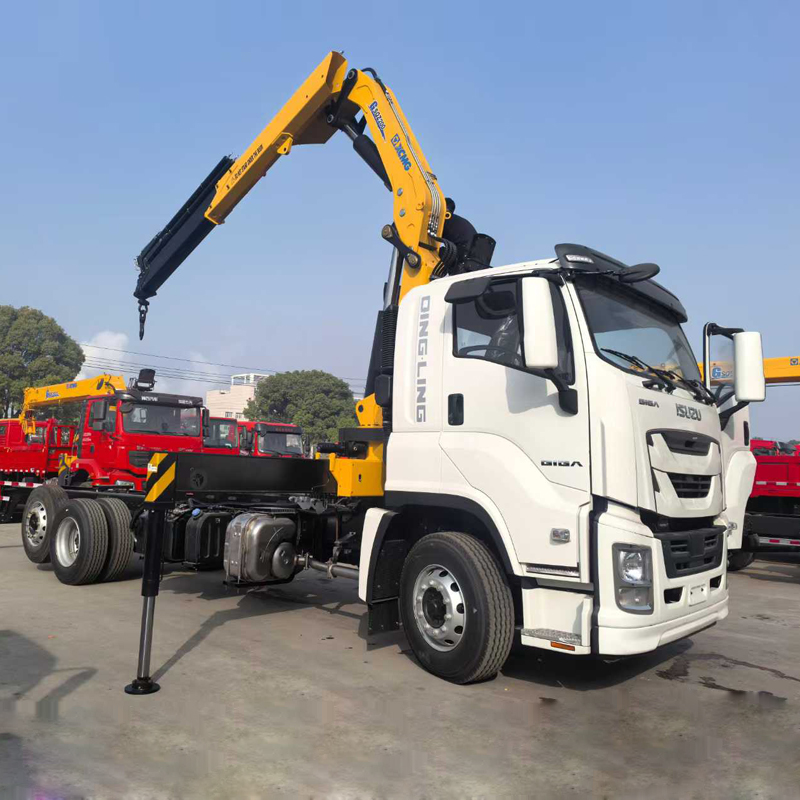

6X2 Isuzu Giant XCMG G Series 10-Ton Five-Section Telescopic Crane

1. Construction sites: Boom Crane Truck is widely used in construction sites to transport and install heavy building materials such as steel bars, concrete slabs, and steel beams. It is equipped with a lifting arm that can rotate and telescope, allowing operators to easily hang heavy objects at high places and perform precise installation and positioning.

2. Shipyard: In shipyards, Boom Crane Truck is often used for loading, unloading and repairing large ships. It can lift heavy objects such as engines, auxiliary equipment, etc. from land and place them accurately on the ship. In addition, hull repairs and painting jobs can be carried out due to the large extension capacity of its boom.

3. Warehouse: In a warehouse, the Boom Crane Truck can be used to move goods, especially bulky or heavy items. The flexibility and precision of its crane arm allow operators to easily lift goods from shelves and place them at the desired location, thereby increasing operational efficiency.

4. Mines and quarries: In these places, Boom Crane Truck is usually used to transport and load heavy materials such as ore and stone. Its powerful lifting capacity and stability can cope with various harsh terrain and environmental conditions, providing reliable support for production in mines and quarries.

5. Car rescue: Boom Crane Truck can also be used for car breakdown rescue. When a vehicle breaks down on the road, it can lift the failed vehicle through its crane arm and move it safely to the designated location.

Vehicle Parameters

General

Vehicle Model

CLW5249JSQQLG3YX

Vehicle Brand

ISUZU

Chassis Brand

WuShiLing

Overall Dimension(mm)

12000,10900,10300,9950×2500,2550×3650,3750,3850,3950,3980

Box Dimension(mm)

8500,8400,8300,8200,8000,7900,7800,7700,7600,7500,7400,7300,7200×2400,2450×550,600,800

GVW/Curb/Rated loading Weight(kg)

24500/15100,14500,13600,12100,11280/7205,7505,9155,9525,9705,10305,10600

Chassis Parameters

Cab

Cab Seat

3

Air Conditioner

Optional

Engine

Fuel Type

diesel

Engie Model

4HK1-TCG60/4HK1-TCG62

Engine Brand

WuShiLing

Power

205hp/224hp

Displacement(cc)

5193/5193

Emmission Standard

Euro3/Euro5/Euro6

Chassis

Drive Type

6*2

Transmission

6 speed, Manual/8 speed, Manual

Wheelbase(mm)

4500+1350,5000+1350,5350+1350,5550+1350

Tyre Specification

295 80R22.5 16PR/275 80R22.5 18PR

Tyre No.(pcs)

8+1

Max Speed(km/h)

90

Paint

White/Yellow/red Optional

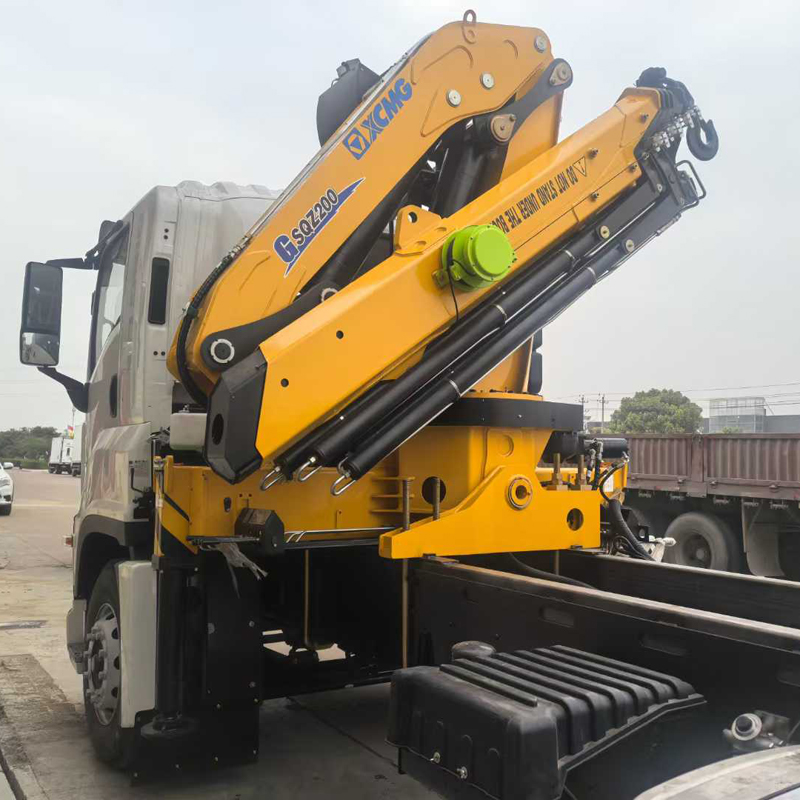

Folding-arm Crane structure parameters (chengli brand)

working height(m)

13/15

Maximum working radius(m)

10.3/12.8

Max Hoisting weight(ton)

10

Arm structure type

Four-section/Five-section

Rotation

360°continuous rotary

Outrigger

H type,front only

Optional H-type rear outriggers
