1. Construction sites: Boom Crane Truck is widely used in construction sites to transport and install heavy building materials such as steel bars, concrete slabs, and steel beams. It is equipped with a lifting arm that can rotate and telescope, allowing operators to easily hang heavy objects at high places and perform precise installation and positioning.
2. Shipyard: In shipyards, Boom Crane Truck is often used for loading, unloading and repairing large ships. It can lift heavy objects such as engines, auxiliary equipment, etc. from land and place them accurately on the ship. In addition, hull repairs and painting jobs can be carried out due to the large extension capacity of its boom.
3. Warehouse: In a warehouse, the Boom Crane Truck can be used to move goods, especially bulky or heavy items. The flexibility and precision of its crane arm allow operators to easily lift goods from shelves and place them at the desired location, thereby increasing operational efficiency.
4. Mines and quarries: In these places, Boom Crane Truck is usually used to transport and load heavy materials such as ore and stone. Its powerful lifting capacity and stability can cope with various harsh terrain and environmental conditions, providing reliable support for production in mines and quarries.
5. Car rescue: Boom Crane Truck can also be used for car breakdown rescue. When a vehicle breaks down on the road, it can lift the failed vehicle through its crane arm and move it safely to the designated location.

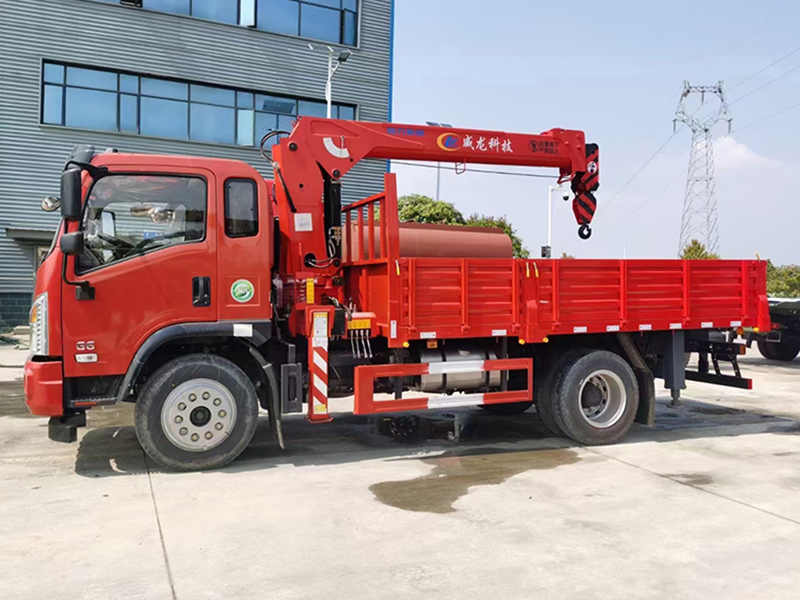

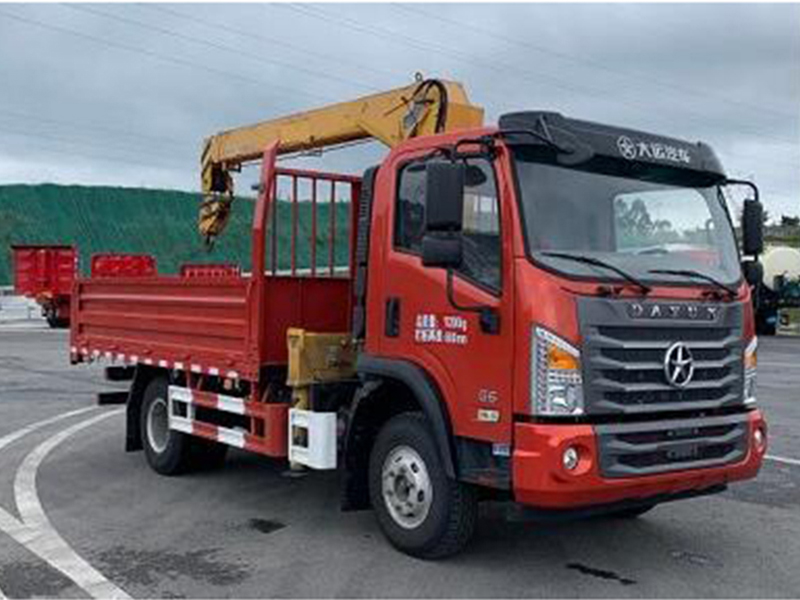

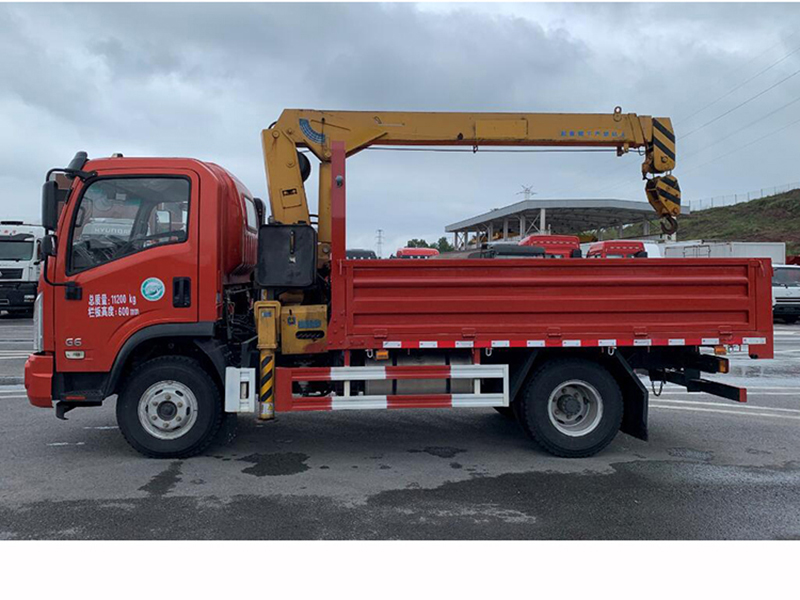

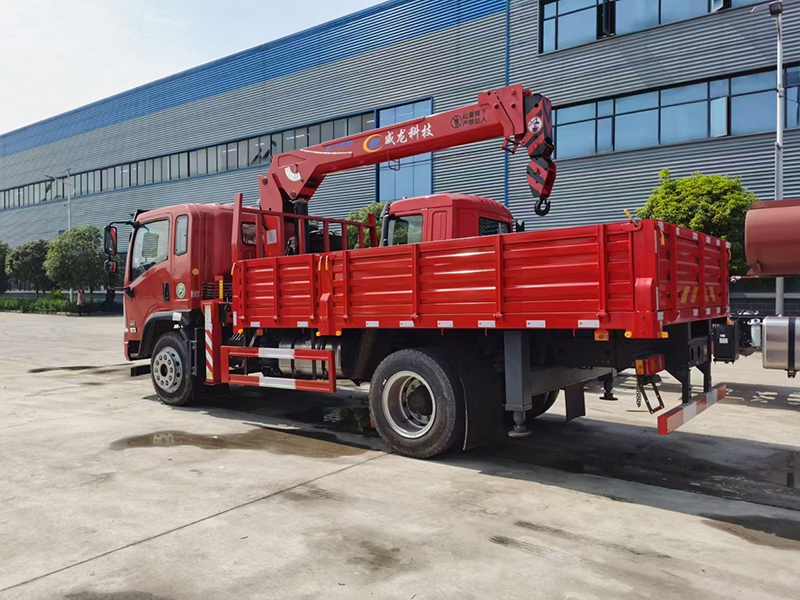

Dayun flatbed truck crane 5ton truck mounted crane telescopic boom
Crane truck is also called crane with truck , Truck mounted crane , crane mounted cargo truck , lorry mounted crane , truck mounted boom lift , truck with loading crane , boom crane , boom crane truck , articulated crane truck , Is used to lift the cargo , load , transport and unload heavy stuff .
There are telescopic boom cranes and knuckle boom cranes , covering a wide range of capacities as follow :
Telescopic boom crane :2 ton , 3.2 ton , 4 ton , 5 ton ,6.3 ton , 8 ton ,10 ton ,12 ton ,14 ton , 16 ton , 25 ton
Knuckle boom crane : 1 ton , 2 ton , 3.2 ton , 4 ton , 5 ton ,6.3 ton , 8 ton ,10 ton ,12 ton ,14 ton , 16 ton , 25 ton
Technical date :
Vehicle Parameters | |||
General | Vehicle Model | CLW5040JSQE | |
Vehicle Brand | XDR | ||
Chassis Brand | Dayun | ||
Overall Dimension(mm) | 5995×2150,2290×2980,3000 | ||
Box Dimension(mm) | 3300×2050×400 | ||
GVW/Curb/Rated loading Weight(kg) | 6495/4490/2050 | ||
Chassis Parameters | |||
Cab | Cab Seat | 2 | |
Air Conditioner | Optional | ||
Engine | Fuel Type | diesel | |
Engie Model | CY4100Q | ||
Engine Brand | Chaochai | ||
Power | 80hp | ||
Displacement(cc) | 3707 | ||
Emmission Standard | Euro3 | ||
Chassis | Drive Type | 4*2 | |
Transmission | 5 speed, Manual | ||
Wheelbase(mm) | 3300 | ||
Tyre Specification | 7.00-16 | ||
Tyre No.(pcs) | 6+1 | ||
Max Speed(km/h) | 90 | ||
Paint | Yellow | ||
Straight Crane structure parameters (changxing brand) | |||
working height(m) | 9 | Maximum working radius(m) | 7 |
Max Hoisting weight(ton) | 2 | Arm structure type | Three section |
Rotation | 360°continuous rotary | Outrigger | H type,front only |
Q1:Could your company manufacture products based on my requests?
A:Yes. With our R&D team, Chengli is specialized in engineering and making specialized vehicles. We can provide any products according to your demands, like the volume, painting, size, logo, the engine, and even the chassis.
Q2:What's your quality guanrantee?
A:We are a government-certified enterprise recognized by China's Ministry of Industry and Information Technology (MIIT), we have passed the ISO, CCC, SGS. We also hold export qualifications.
Q3. What are your main products?
A: Fire and emergency response vehicles, tanker trucks, refrigerated trucks, sanitation trucks, garbage truck, sprinkler truck, boom truck, wrecker trucks and so on. The annual production capacity is exceeding 8,000 units.
Q4. Are you a factory or trading company?
A: Chengli a the original factory, not a middleman or agent.
Q5. What are your terms of payment? What is your terms of delivery?
A: Generally speaking, 30% T/T deposit in advance. Terms are EXW, FOB, CFR, CIF.
Q6. How about your delivery time?
A: 10 to 25 days after receiving your advance payment. It also depends on the items and the quantity.
Q7. What is the price of your product?
A: We are the direct factory, so the price can be competitive. Visit our company and let us enjoy a tea to further talk about the price!
Q8. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.
Q9.What is the warranty period for your products?
A:The warranty period of export vehicles can be 12 months, based on the order.
Q10.Do your special vehicles comply with national/regional safety standards and emission regulations?
A:Yes.
Q11.What after-sales services do you provide?
A:We provide comprehensive after-sales services, including free parts, maintenance, repairs, technical support, and on-line tech support.
Q12:Can you make OEM or ODM?
A:Yes, we welcome the importer and wholesaler from worldwide for OEM and ODM business.
Q13:Where is your factory located? How can I visit there?
A:The address is at the intersection of Xingguang Road 1 and National Highway 316 in Zengdu Economic and Technological Development Zone, Suizhou City, Hubei Province, China. We will pick you up at Wuhan Airport.
