Product Name

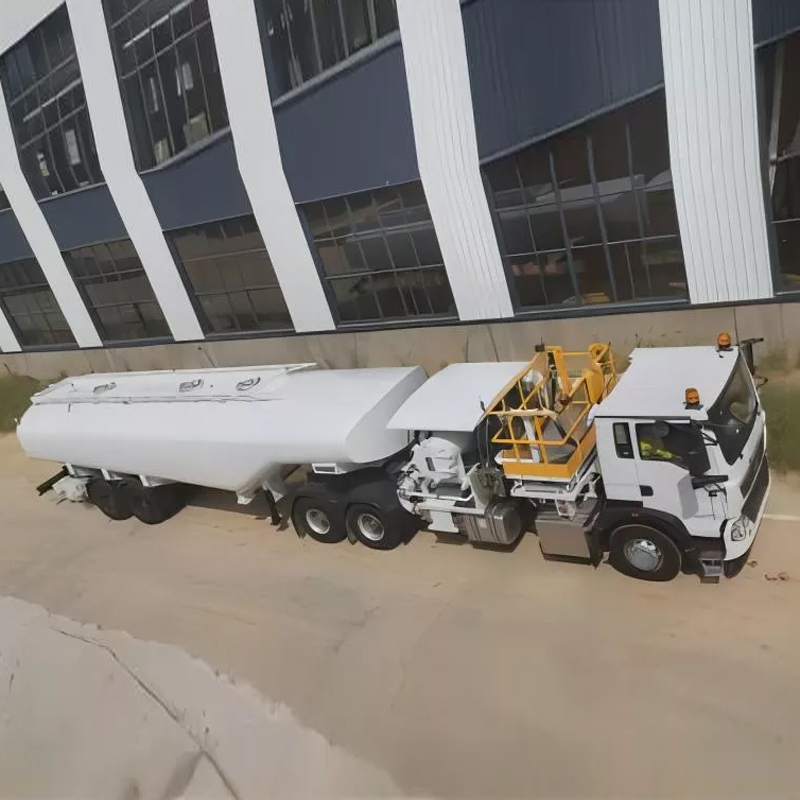

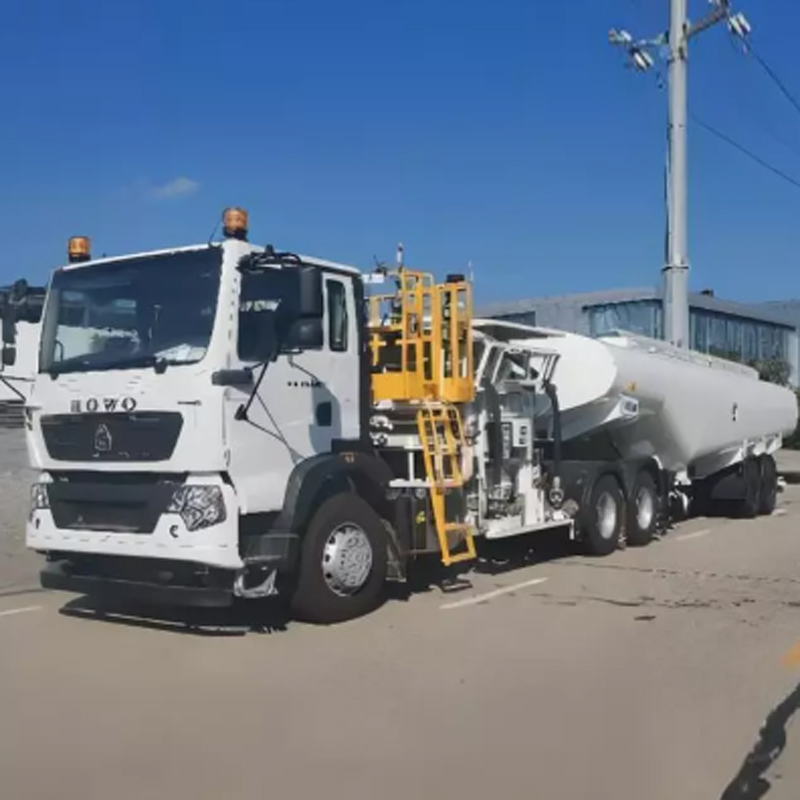

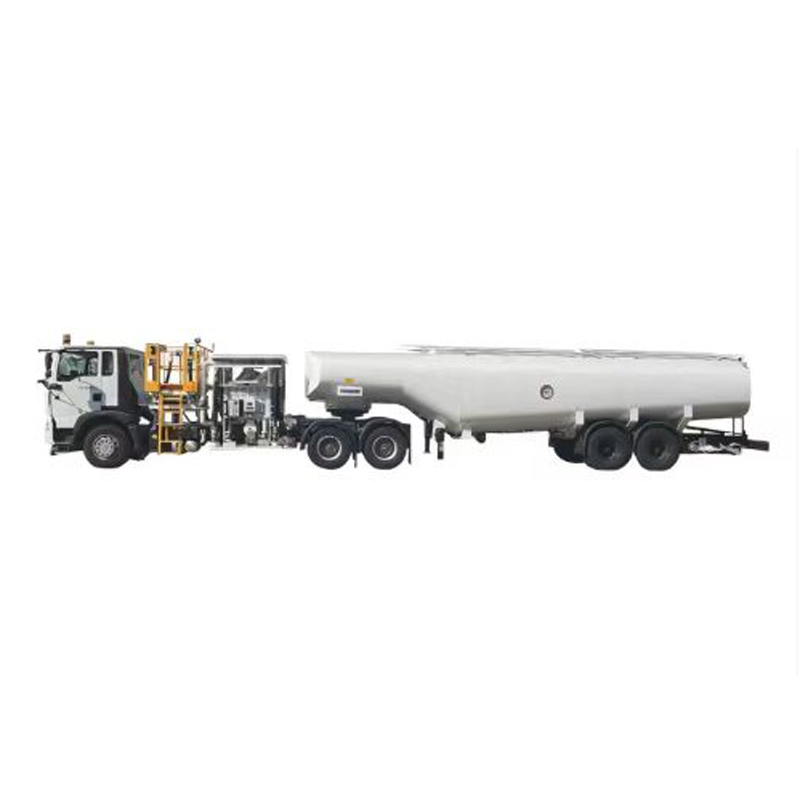

Aircraft Refueling Truck

Curb Weight(Kg)

49000

Boundary Dimension(mm)

16000/17500x2650x3480

Tank Volume(m³)

30

Tank Thickness（mm）

6

Tank Body Material

Carbon steel/Aluminum alloy/Stainless

Compartment

2-6 As Customer Need

Operating Ambient Temperature（°C）

-20~45

Manhole Cover

European Standard

Emergency Shut Off Valve

Include

Oil Gas Recovery Unit

Include

Anti-Overflow Alarm Device

Include

Fuel Loading method

Bottom Filling

Gear Oil Pump Flow(m³/h)

180

Toolbox

As Required

[Chassis Technical Parameters]

Chassis Brand

HOWO

Drive Form

6*4 LHD RHD Optional

Steering Device

Power steering ,hydraulic steering with power assistance

Wheelbase(mm)

4200+1400

Engine Brand

SINOTRUK WD615.47

Power(kw)

272

Horse Power(HP)

371

Fuel Type

Diesel

Emission standard

Euro II, Euro III, Euro IV, Euro V, Euro VI available

Gearbox

10 Speed Manual/12 Speed Manual

Front/Rear Axle(t)

7.5/16

Suspension

Multi Leaf Springs

Brake System

Front/Rear Drum Full Air Braking

Tires Spec

12.00R20

Cab Configuration

air conditioning, radio, MP3 and USB port,A

Others：

2 sets of 8kg extinguishers,1 set of static belt，Level gauge，Flow meter。

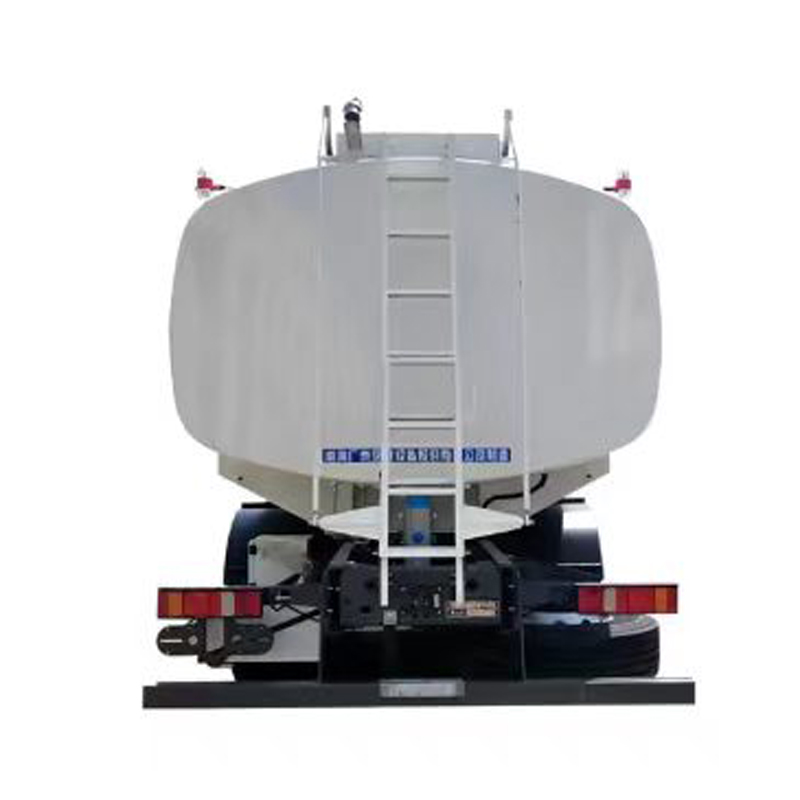

1、Colors and designs are customized toyour specifications. The tank is square or round, a singlecompartment, made of 5182 aluminumalloy, and a cylinder thickness of5.5mm. The head is 5.7mm thick, and there isan aluminum alloy European standard/manhole with a built-in breather valvein the center of the top of the tank. There are handrails on both sides ofthe top of the tank. Movable aluminum alloy guardrail, equipped with aluminum alloy rearladder (movable and detachable). The control cabinet (aluminum alloy)includes one set of explosion-prooflights inside and one set ofelectrostatic reel outside. (Forrefueling...)Pump: Stainless steel centrifugal pump(mechanical seal type); Flow meter: 0.2grade accuracy, 50mm diameter rotarylobe. Flow rate, filter separator: 5-cartridgefilter (including 2 separator cartridgesand 3 coalescing cartridges). HeavyRefueling method: 15-meter aviationkerosene hose reel with aviationkerosene nozzle; Level gauge: 4-inchaluminum. Alloy dial, operation control: integratedcontrol system. The unloading box on the left side ofthe tank is equipped with an oil andgas recovery system and a 5 km/hemergency cutter head has beenadded in accordance with the newregulations. Emergency shut-off valve system: Anemergency shut-off valve with a redbutton is installed at the rear of thetank. One standard aluminum alloy toolbox, two drain hoses, and two roundaluminum alloy barrels on both sidesof the container. Each container is equipped with a1-inch drain valve at the front end, andall containers are equipped withcontainer locking bars for userconvenience. The tank features a lock, a rubberstopper at the bottom of the outletbox, and 8kg plastic fire extinguishercartridges on both sides of the rear. The tank top surround is equippedwith an aluminum alloy anti-slip meshwalkway, and a rear protective I-beambumper of equal length with aremovable, rear-folding lower section. Safety notices are installed on the left, right, and rear of the tank(500x550mm). All vehicle accessoriesare made of aluminum alloy and bearspecial hazardous materials markings. Two anti-static drag strips areincluded, and the gaps in the rearbeams of the chassis are sealed withaluminum alloy anti-slip corrugatedplates. The tank comes with inspectionand flaw detection reports. Medium:aviation kerosene, aviation gasoline. The paint is the natural color of thealuminum alloy., fully complying with ICAO, JIG and EI international standards.
