Parameter Category | Detailed Data |
Basic Vehicle Information | |

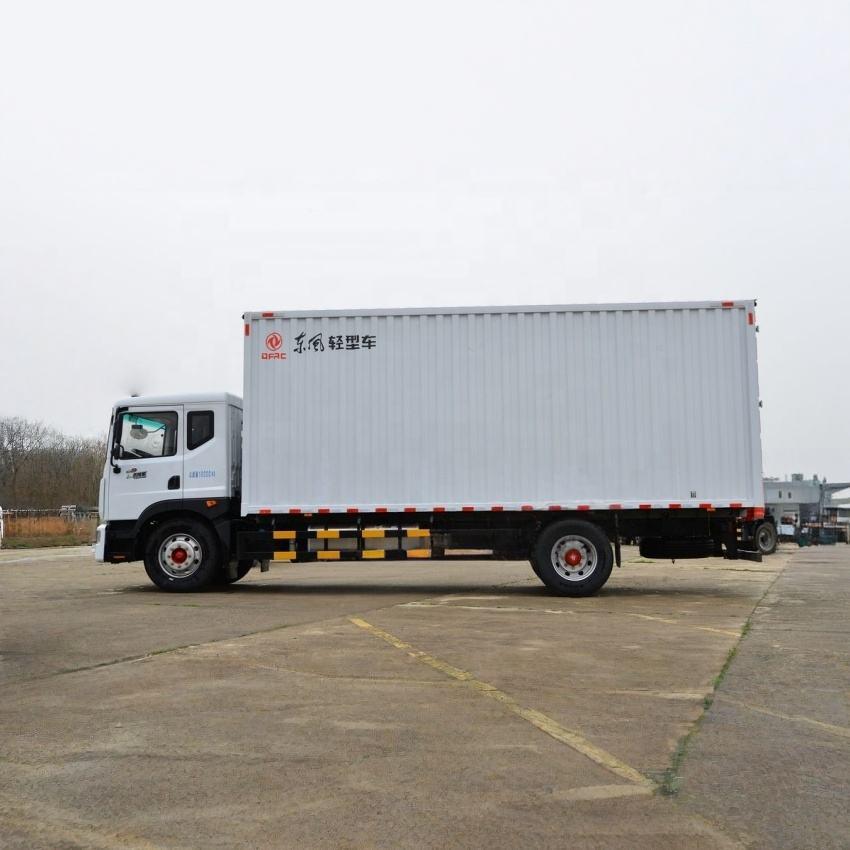

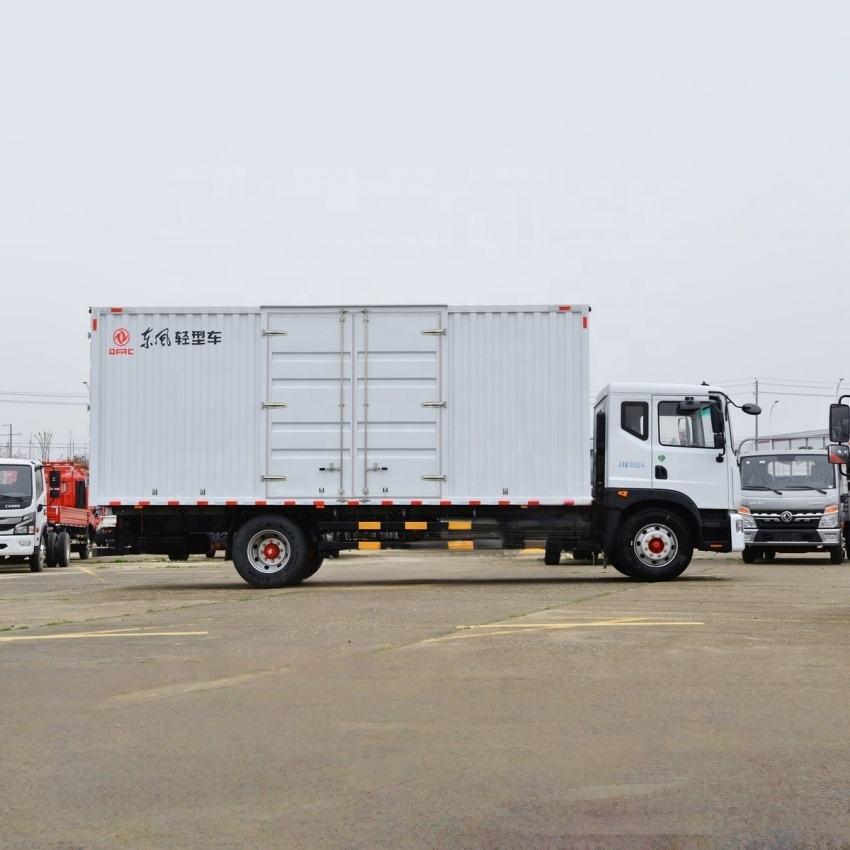

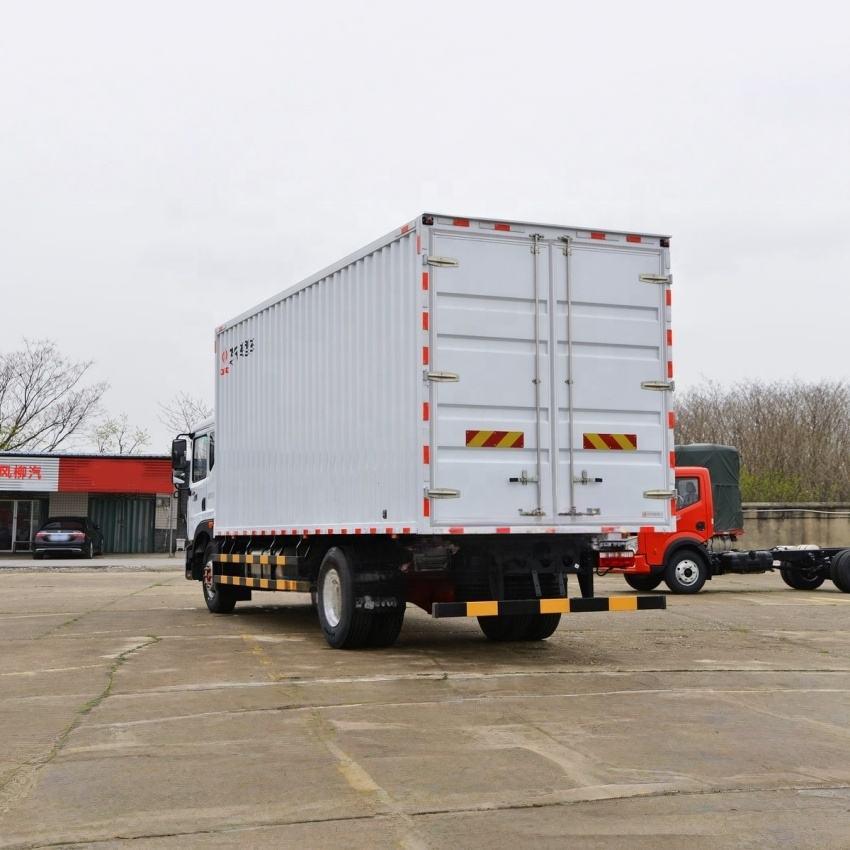

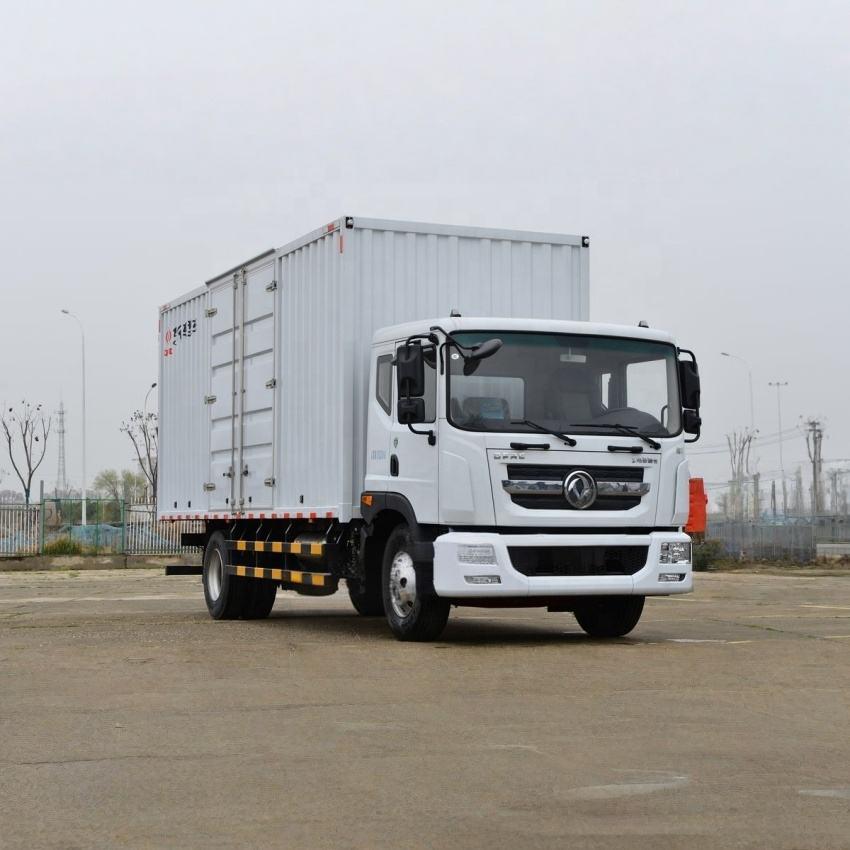

Vehicle Type | Box Van Truck |
Drive Configuration | 4×2 (2 front steering wheels + 2 rear driving wheels) |
Wheelbase | 5300 mm |
Cargo Box Length Class | 6.8 m |
Engine Model | Yuchai YCS04200-68 |
Transmission Model | Fast Gear 8JS75TC |
Rear Axle Ratio | 4.33 |
Overall Vehicle Length | 9.105 m |
Overall Vehicle Width | 2.55 m |
Overall Vehicle Height | 3.76 m |
Front Track Width | 1860 mm |
Rear Track Width | 1806 mm |
Curb Weight | 8.155 tons (8155 kg) |
Rated Payload Capacity | 9.715 tons (9715 kg) |
Gross Vehicle Weight (GVW) | 18 tons (18000 kg) |
Maximum Speed | 105 km/h |
Place of Origin | Xiangyang, Hubei (China) |
Tonnage Class | Medium Truck |
Approach Angle | 19° |
Departure Angle | 13° |
Target Market Segment | Not Specified |
Remarks | Equipped with self-adjusting arm, friction lining alarm, and air dryer |
Front Overhang/Rear Overhang | 1.26 m / 2.545 m |
Version | Not Specified |
License Plate Type | Yellow License Plate (Compliant with China’s medium-duty vehicle license standards) |
Energy Type | Diesel |
Engine Parameters | |
Engine Brand | Yuchai |
Engine Model | Yuchai YCS04200-68 |
Engine Series | Yuchai 4-Cylinder Series |
Number of Cylinders | 4 Cylinders |
Fuel Type | Diesel |
Cylinder Arrangement | In-line |
Displacement | 4.16 L |
Emission Standard | China National III Emission |
Maximum Output Power | 147 kW |
Maximum Horsepower | 200 HP |
Maximum Torque | 720 N·m |
Maximum Torque Speed Range | 1200 - 1600 rpm |
Rated Engine Speed | 2300 rpm |
Engine Form | High-Pressure Common Rail + EGR (Exhaust Gas Recirculation) + DOC (Diesel Oxidation Catalyst) + DPF (Diesel Particulate Filter) + SCR (Selective Catalytic Reduction) + ASC (Ammonia Slip Catalyst) |
Cargo Box Parameters | |
Cargo Box Type | Box-type (Enclosed van structure for cargo protection) |
Cargo Box Length | 6.8 m |
Cargo Box Width | 2.47 m |
Cargo Box Height | 2.65 m |
Internal Cargo Box Width | 2.4700000286102 m |
Q1:Could your company manufacture products based on my requests?
A:Yes. With our R&D team, Chengli is specialized in engineering and making specialized vehicles. We can provide any products according to your demands, like the volume, painting, size, logo, the engine, and even the chassis.
Q2:What's your quality guanrantee?
A:We are a government-certified enterprise recognized by China's Ministry of Industry and Information Technology (MIIT), we have passed the ISO, CCC, SGS. We also hold export qualifications.
Q3. What are your main products?
A: Fire and emergency response vehicles, tanker trucks, refrigerated trucks, sanitation trucks, garbage truck, sprinkler truck, boom truck, wrecker trucks and so on. The annual production capacity is exceeding 8,000 units.
Q4. Are you a factory or trading company?
A: Chengli a the original factory, not a middleman or agent.
Q5. What are your terms of payment? What is your terms of delivery?
A: Generally speaking, 30% T/T deposit in advance. Terms are EXW, FOB, CFR, CIF.
Q6. How about your delivery time?
A: 10 to 25 days after receiving your advance payment. It also depends on the items and the quantity.
Q7. What is the price of your product?
A: We are the direct factory, so the price can be competitive. Visit our company and let us enjoy a tea to further talk about the price!
Q8. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.
Q9.What is the warranty period for your products?
A:The warranty period of export vehicles can be 12 months, based on the order.
Q10.Do your special vehicles comply with national/regional safety standards and emission regulations?
A:Yes.
Q11.What after-sales services do you provide?
A:We provide comprehensive after-sales services, including free parts, maintenance, repairs, technical support, and on-line tech support.
Q12:Can you make OEM or ODM?
A:Yes, we welcome the importer and wholesaler from worldwide for OEM and ODM business.
Q13:Where is your factory located? How can I visit there?
A:The address is at the intersection of Xingguang Road 1 and National Highway 316 in Zengdu Economic and Technological Development Zone, Suizhou City, Hubei Province, China. We will pick you up at Wuhan Airport.
