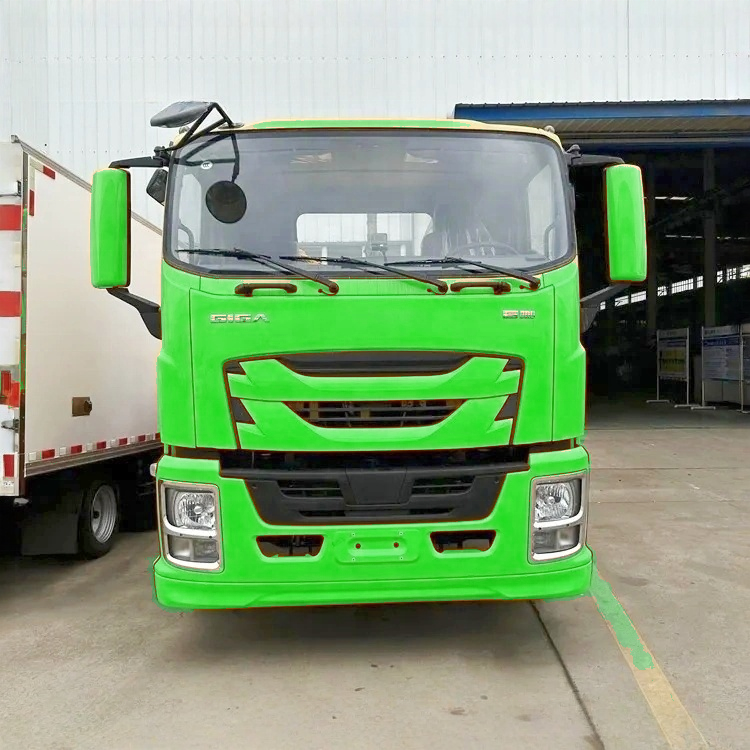

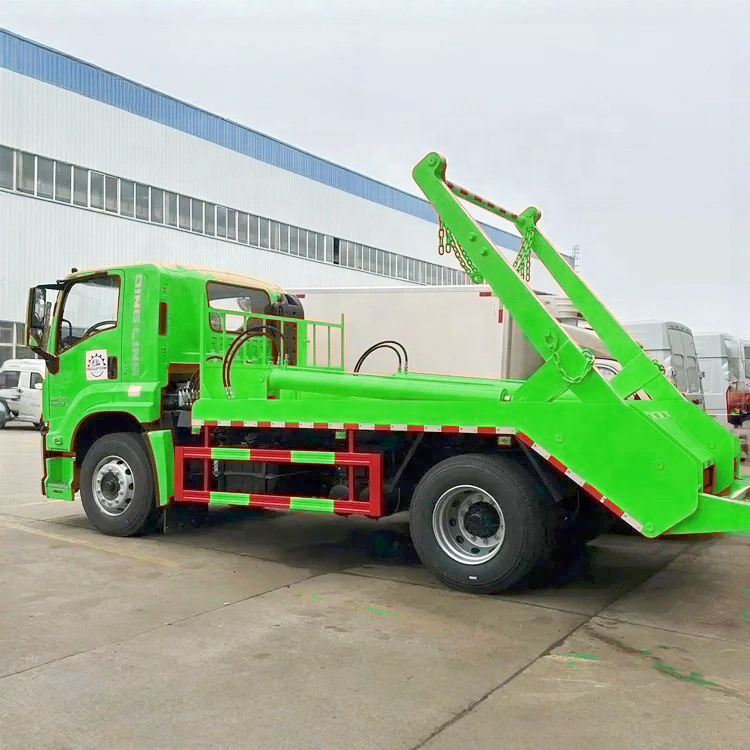

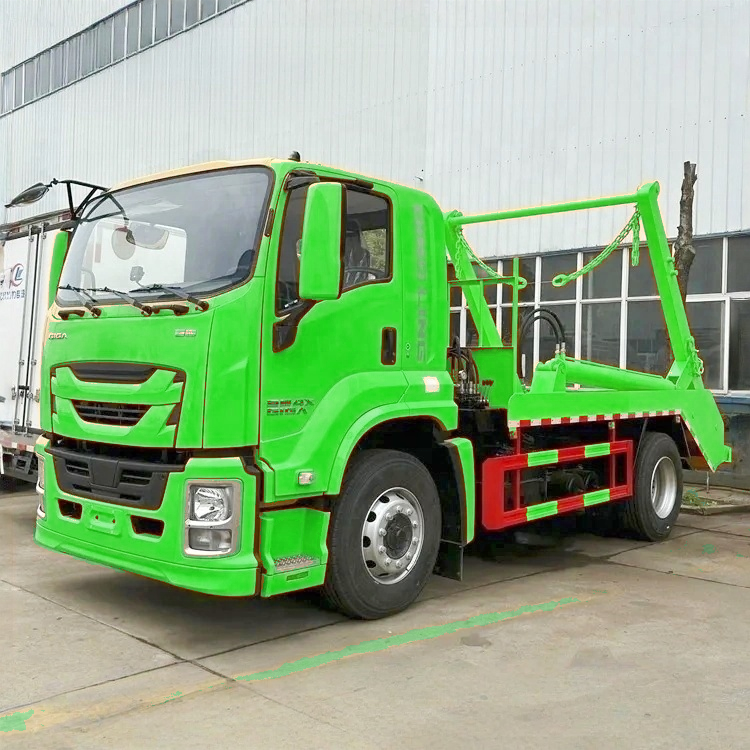

Isuzu GIGA 4X2 10CBM 12cbm Swing Arm Garbage Collection Truck Skip Loader Garbage Truck New

Inquiry now
Vehicle name
Isuzu skip loader/swing arm garbage truck


Cabin
Driving type 4x2
Single, with A/C. Left/Right Hand Drive


Vehicle Main Dimensions
Overall dimensions (L x W x H)mm
8600*2500*3500
Wheel base (mm)
5000
Wheel track (front/rear) (mm)
1965/1860
Approach/Departure angle(°)
18/20


Weight
Gross Weight
18000 kg
Curb Weight
8600kg
Loading Capacity
15000 kg
Front axles loading capacity
6 ton
Rear axles loading capacity
12ton
Max. driving speed(km/h)
90


Engine
Brand
Isuzu
Type
4/6-cylinder in-line with water cooling, turbo-charging and inter-cooling
Horse Power(HP)
205/240 HP
Emission standard
Euro 2/3/4//5
Gearbox
FAST, 5/6/8 forwards &1 reverse
Steering Gear
Hydraulic steering with power assistance
Fuel tank (L)
100 /200/300L
Tire
7.00R16/9.00 tires with one spare, totally 7 pcs.

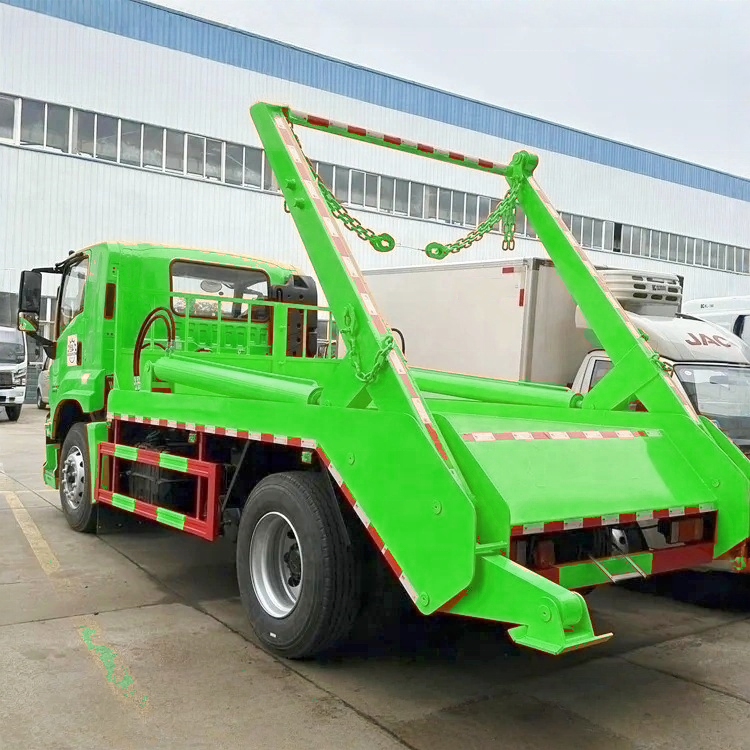

Swing arm system with cargo box
· Garbage cargo box :5-14CBM , Carbon steel material , underground type or aboveground type can be optional.
· PTO motivated hydraulic system, two hydraulic cylinders with lifting arm and two hydraulic cylinders with landing leg
· Swing arm maximum pivot angle 145; hoisting time 30s; Unloading time 50s.
