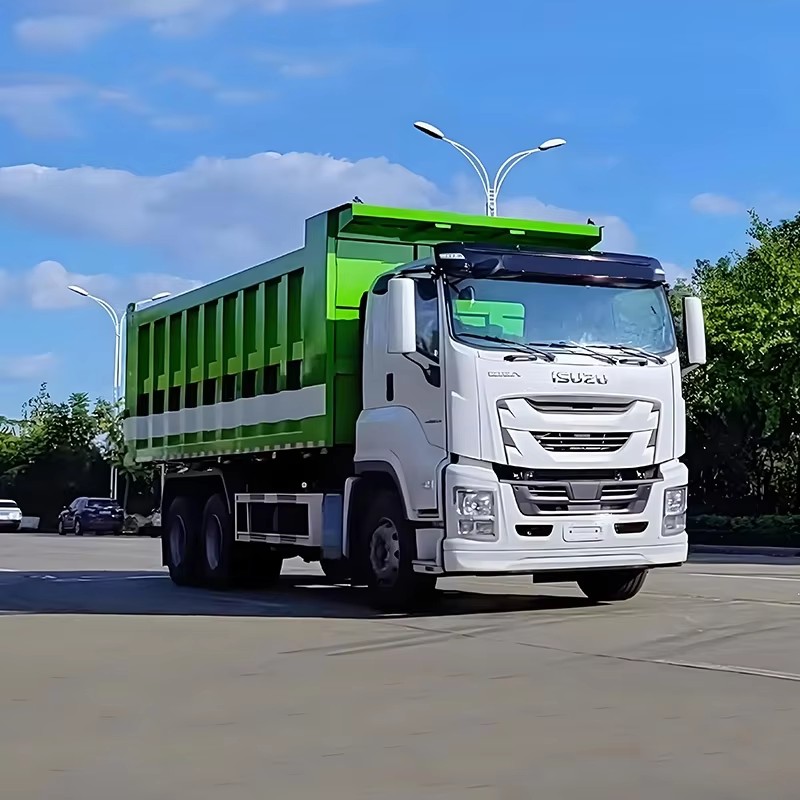

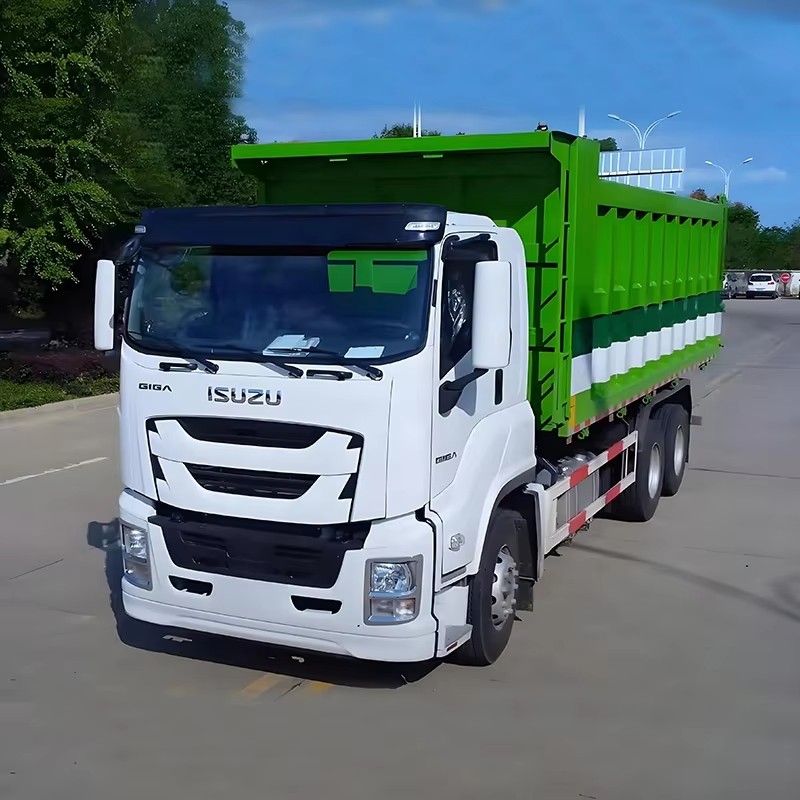

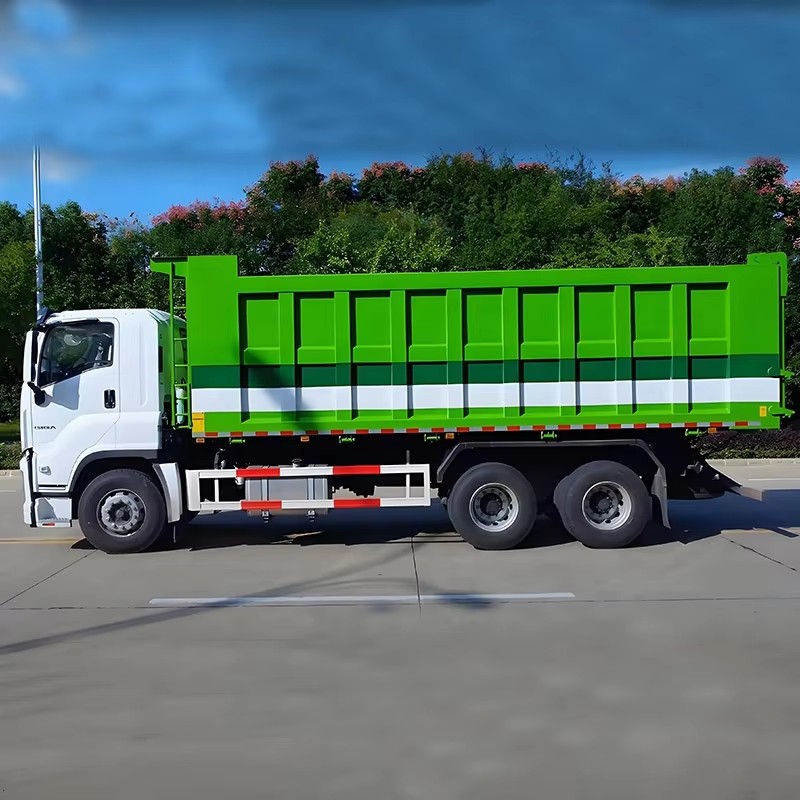

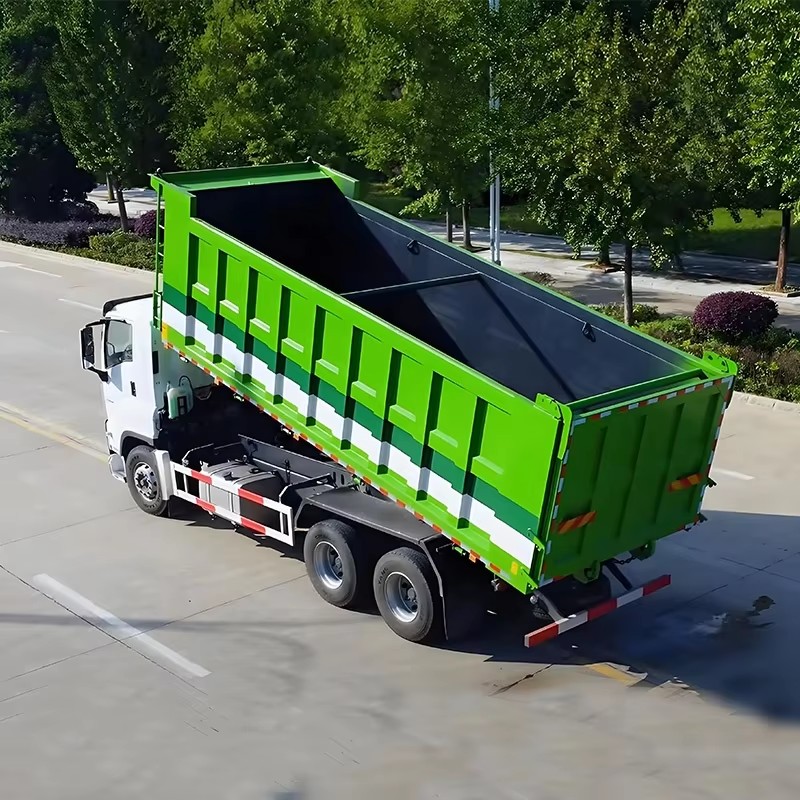

1SUZU GIGA 20Ton 30Ton Hydraulic Lifting Tipper Truck 6x4 Dumper Truck for Road Construction

Inquiry now
Vehicle Technical Parameters
Product Name
Dump Truck

Overall Dimensions(mm)
8585x2550x3650

Curb Weight(Kg)
12500

Loading Capacity(Kg)
12370

Total Mass(Kg)
25000

Cargo Tank Dimension（mm）
5600x2350x1500

Cargo Tank Volume(m³)
20

Tank Body Material
carbon Steel

Cargo Tank thickness（mm）
Side 6 Bottom 8

Cargo Tank Lifting Method
Hydraulic Cylinder Lifting

Number of Cylinders（pcs）
1

Cylinder Position
Girder Front/Middle

Cylinder Diameter（mm）
180

Door Position
Rear/Side/Top

Chassis Technical Parameters
Chassis Brand
1SUZU

Drive Form
6*4

Steering Wheel
Left Hand Drive

Steering Device
Power Assisted Steering

Wheelbase(mm)
4100+1350

Engine Brand and Model
Weichai Power/WP12.400E50

Max Engine Power(Kw)
294

Engine Displacement(ml)
11600

Engine Emission Standard
Euro 6

Number of Engine Cylinders
6

Fuel Type
Diesel

Gearbox
12 Speed Forward 1 Reverse

Front/Rear Axle(t)
7/7/18

Suspension
Multi Leaf Springs

Brake System
Front/Rear Drum Full Air Braking

Wheels and Tyre Size
12+1/( 12.00R20LT)

Cab Configuration
Single Row Cab, Air Conditioning, Radio, MP3 and USB Port

Rated Voltage
24V,DC

Cab Color
White,other color is optional
