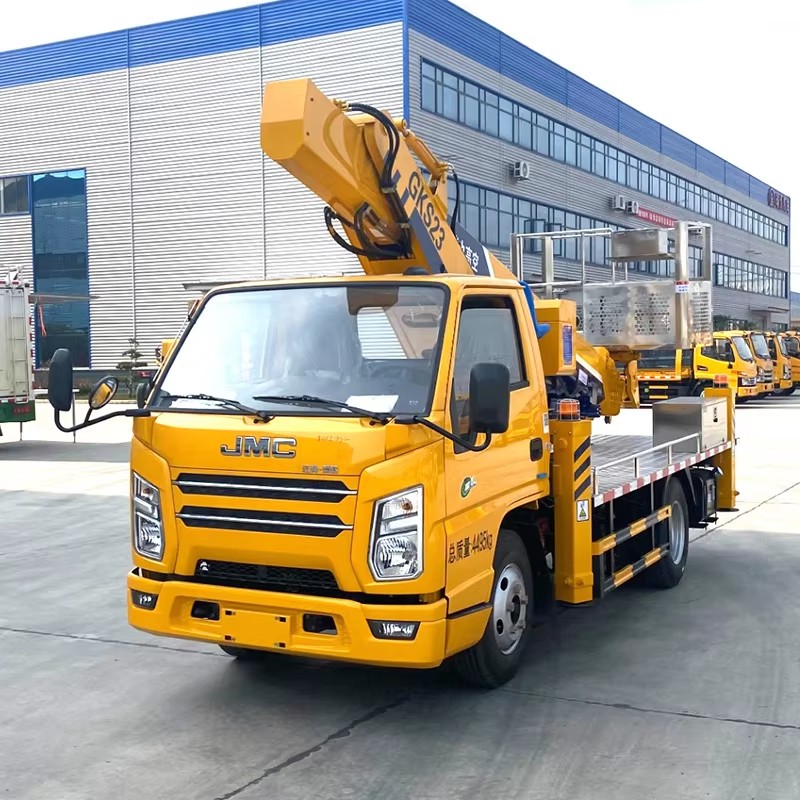

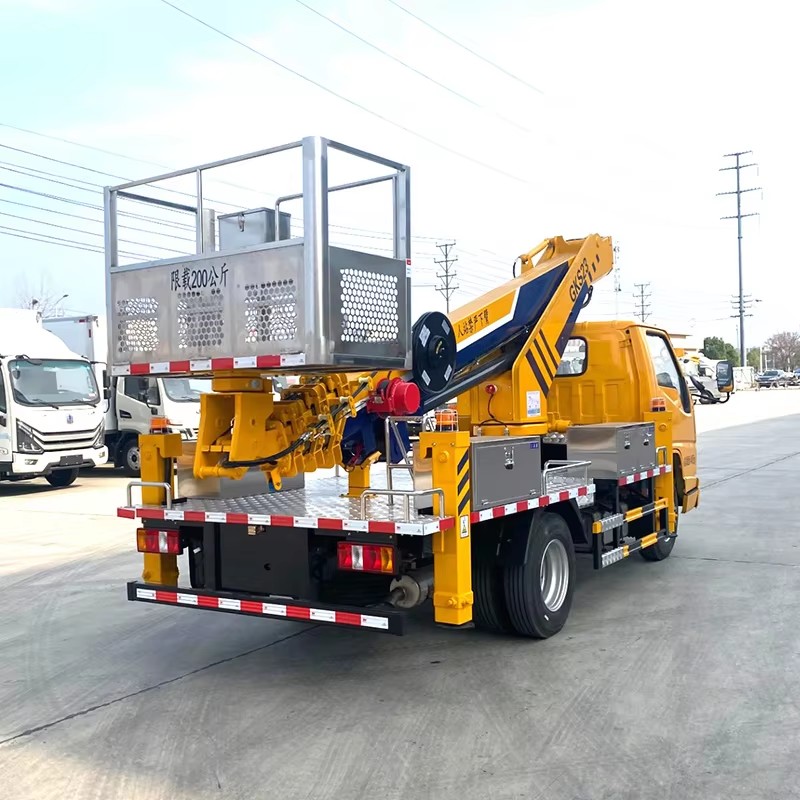

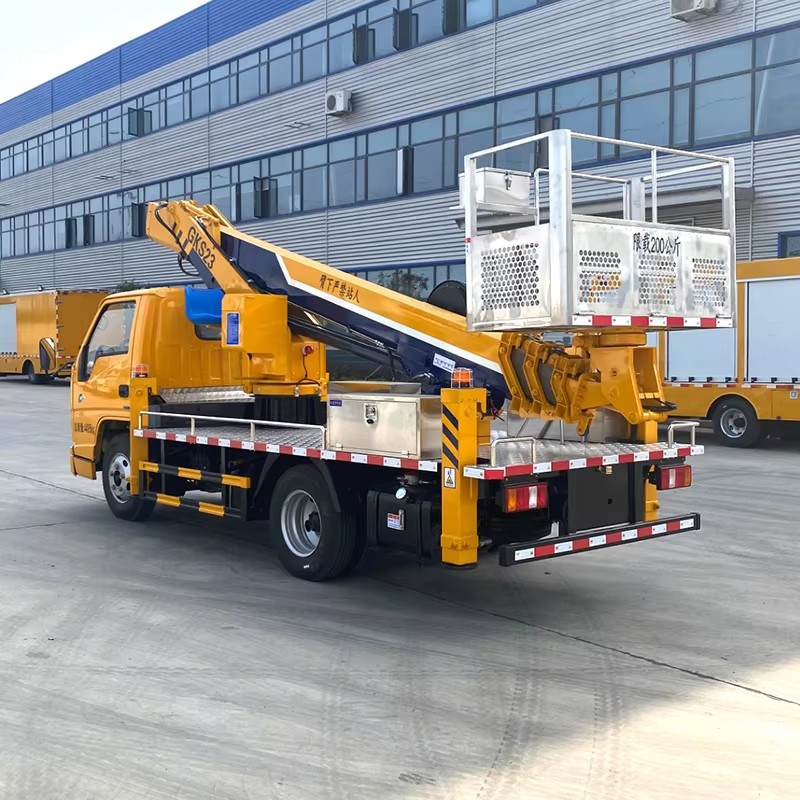

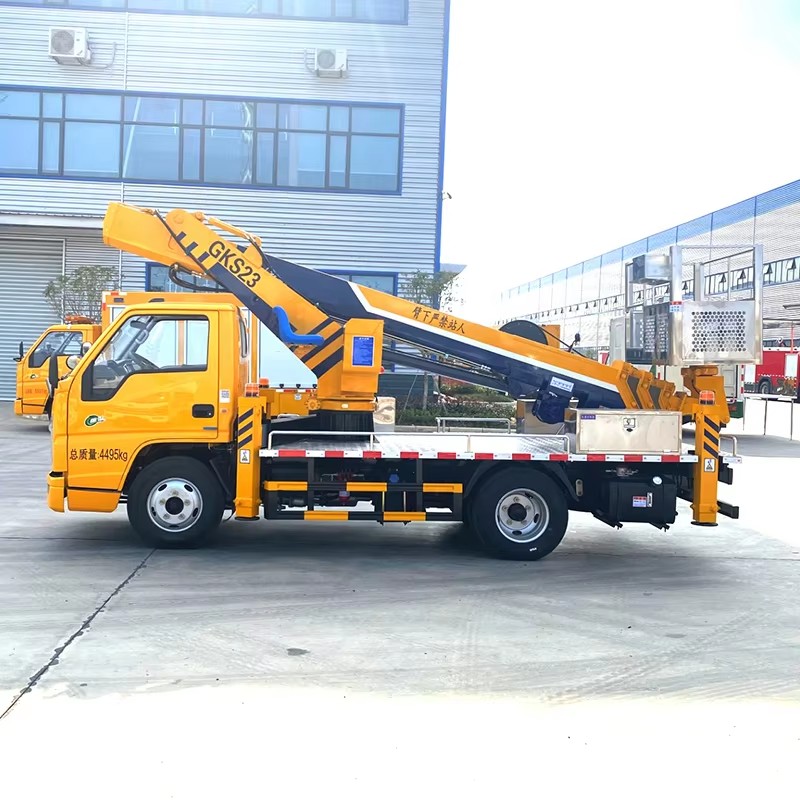

JMC Customized 23m 30m 35m Straight Arm Aerial Lift Truck High Altitude Operation Aerial Work Truck

Inquiry now
【Vehicle Technical Parameters 】
Product Name
Aerial Work Platform Truck

Total Mass (Kg)
4495

Maximum Operating Height（m）
23

Allowed Passengers
2

Maximum Operating Radius Amplitude（m）
13.5

Leg Span (transverse/longitudinal)
4000/4400(mm)

Outrigger
Front V rear H type

Slewing Gear
360 ° Rotation

Lifting Weight（kg）
1000

Overall Dimensions (mm)
5998×2050×2850

Platform Rated Load(kg)
200

Emergency Device
Emergency Pump

Maximum Speed (km/h)
100

Warning Device
Engineering Strobe Light

Operating Mode
Remote/Manual

Horizontal Detection
Level Detector

Jib Structure
Four section hexagonal shape

【Chassis Technical Parameters】
Brand Name
JMC

Fuel Type
Diesel Oil

Engine Power（KW）
1-suzu 85

Number of Axles
2

Number of Tires
6

Front Axle/Rear Axle（t）
1.8/3.5

Gearbox Model
5-Speed Manual

Wheelbase (mm)
3360

Tire Size
7.00R16LT
