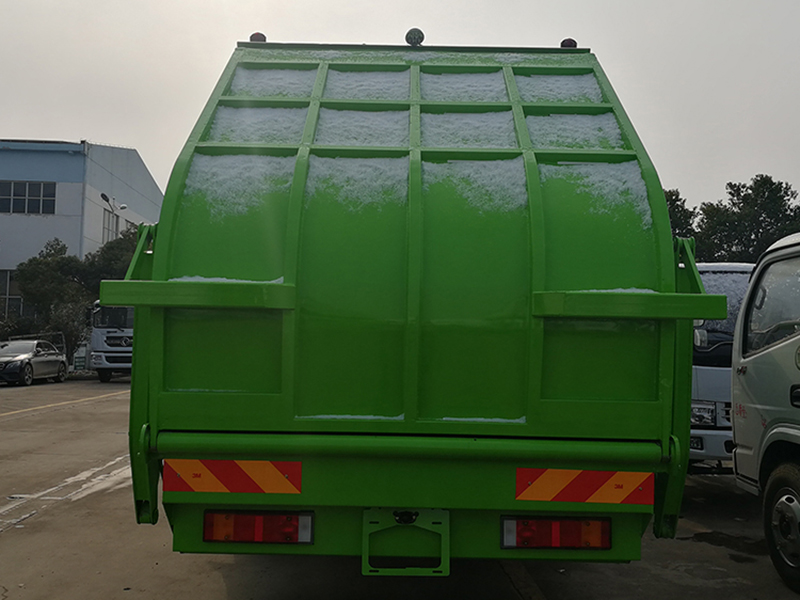

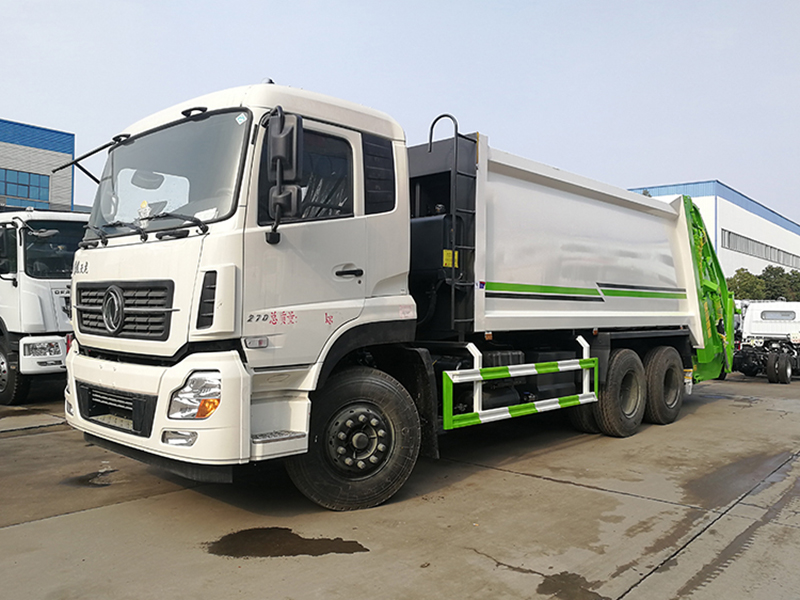

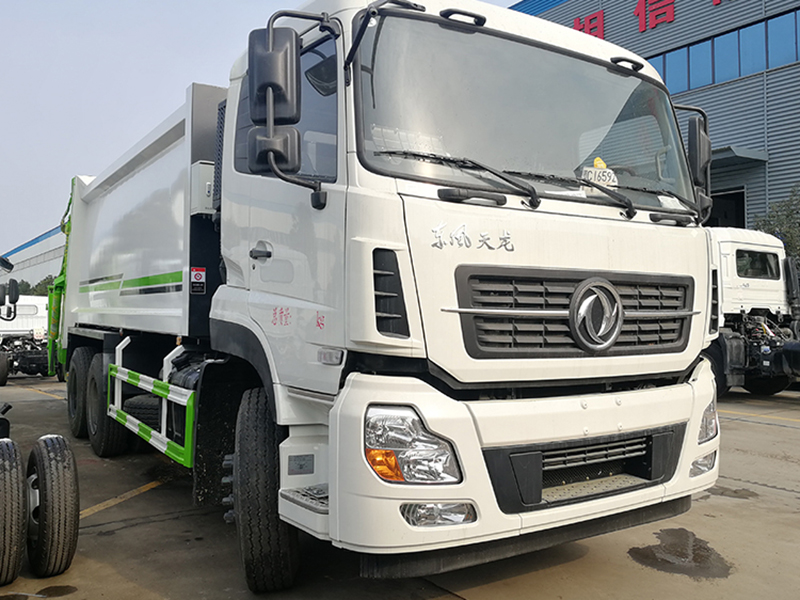

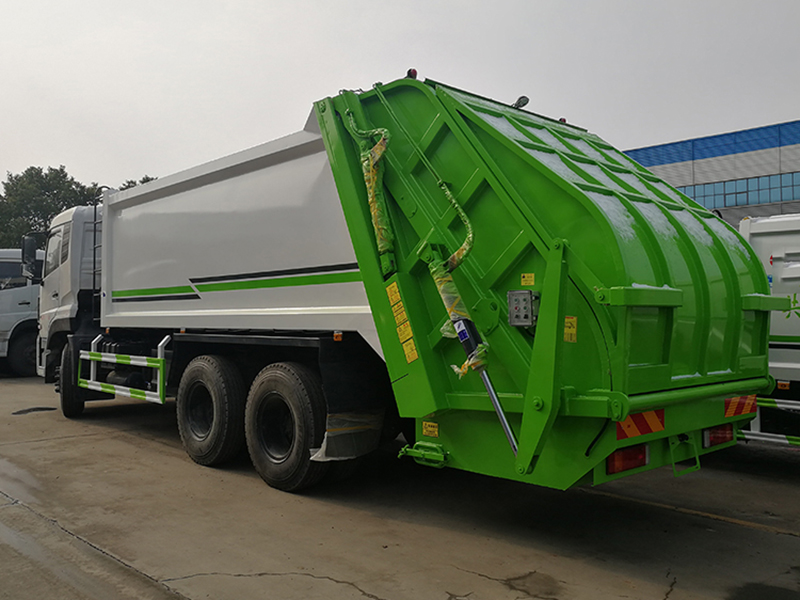

16-18CBM DONGFENG TIANLONG Garbage Compactor Truck

Inquiry now

Product Description

Compressed garbage truck is mainly used for the collection and transport of a one-time non-recyclable municipal solid waste, commercial waste, and also used for non-toxic, non-corrosive and non-radioactive industrial garbage.It is produced with Germany technology. It's with the features of high system pressure, large compression force, high volume rate and large loading capacity, which could make loading capacity increase 5-7 times.With the function of high automatic degrees, quick loading speed, convenient, safe and reliable operation, and preventing re-pollution.

   DONGFENG Tianlong 6*4 16-18cbm compactor waste truck
Vehicle Description
Overall dimensions10350*2500*3400mm
GVW25000kg
Curb weight14870kg
Loading weight/
Chassis brandDONGFENG
Traction type6*4; Left hand drive

Up-parts Specification
Dustbin volume16-18cbm
Material & thicknessSide4mm Q345
Bottom5mm Q235A
Type of Rear garbage filler
(Rear Turnover device)		1.Hanging trash bin
2.Swing arm
3.Dustpan
Control systemElectrically Controlled Hydraulic + Manual Hydraulic
Type of compactorFill, push and compression
Garbage compact density0.9±0.05 T/m³
Sewage water tankRearAbout 500L, on the bottom of rear filler
FrontAbout 230L, on the front of garbage van
Max compact≥141 KN
Max push≥189 KN
Tailgate ascending Angle~95°
Cycle of loading≤40s
Cycle of discharge≤45s
Hydraulic pressure system working pressure16 Mpa
PLCImportation PLC (Programmable controller)
Gear pumpMade in China
Multi-way valveAir controlled, Made in China
Hydraulic oil cylinderMade in China
Hydraulic rubber hoseMade in China
