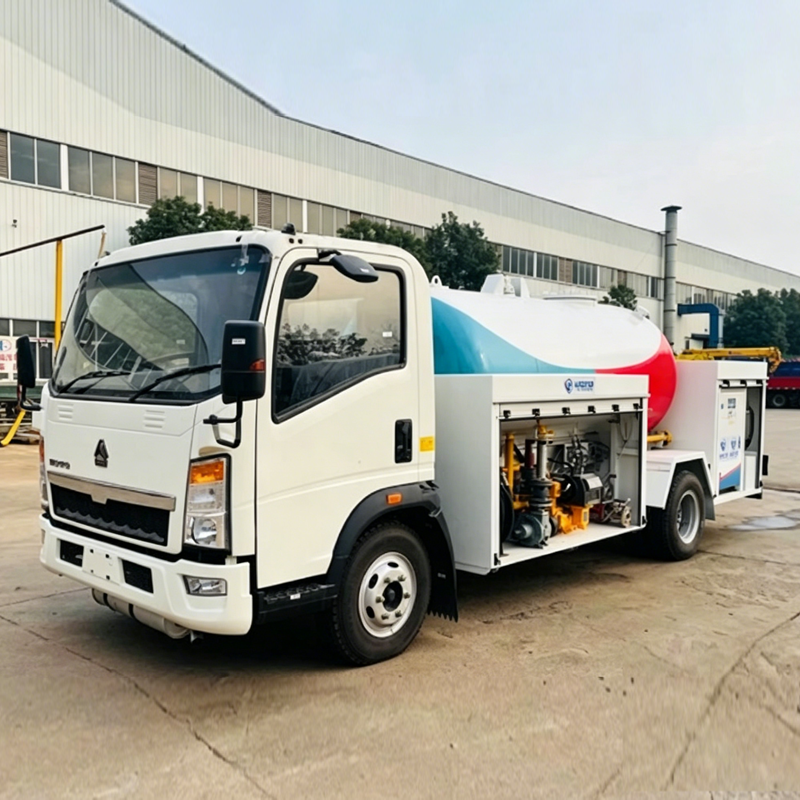

HOWO 5000 Liter LPG Bobtail Truck For Cooking Cylinder Refiiling

为什么选择我们的产品？

- 资质认证：ASME、ISO、BV、SGS、CCC等

- 拥有30余个独立车间，生产各类专用车辆

- 配备1000台生产设备、25条组装生产线

- 现有员工8000名，其中资深工程师与技术人员300名

- 拥有800款车型及半挂车，适配各行各业使用需求

- 20年专业外贸批发经验

- 产品远销90个国家和地区

我们是源头工厂，自产自销。
产品质量全面保障。
欢迎莅临工厂参观考察！

1.lpg truck: Liquid Petroleum Gas, Propane, Butane, Liquid Ammonia, etc.

2.Available tank sizes of LPG storage tank: 5m³~200m³, 2.5ton~100tons.

3.Tank Design Standard : GB-150, ASME VIII Division I U STAMP, CCC, ISO9001 : 2008.

4.Tank Testing: 100% Radiaographic Test, Magnetic Power Test, Water Pressure.

5. Optional for lpg gas plant equipments: LPG pump and motor, LPG compressor, volume flow meter, filling scales and lpg dispenser,ball valves,check valves,non-return valves,glass valve,strainer,by-pass valve and so on.

联系我们： WhatsApp caihu715@gmail.com

立即咨询

Specification of Truck Chassis
Chassis Model	ZZ1047D3815C145
Driving Model	4 X 2
Cab	HOWO, 2080 cabin.
	Left or Right Hand Drlving
	with air conditioner
Wheel Base	3800mm
Axle Loading (front/rear)	2700/7200 kg
External Dimensions (L × W × H)	5950X2350X2650mm
Max. driving speed	95 km/h
Engine - Model	Yuchai engine, YN4102QBZL
Engine - Type	4-cylinders in a line, turbo-charging and inter-cooling
Engine - Horse Power	116Hp
Engine - Max output power	85 kW
Engine - Emission standard	Euro 2
Engine - Displacement	3.76 L
Engine - Min. Fuel consumption at full load	≤217 g/kw.h
Gearbox	Manual type, WLY6TS55C, 6 forwards & 1 reverse
Clutch	Reinforced diaphragm clutch
Tire	7.50R16, 6 pieces with 1 spare tire.
Fuel box	120L /steel material
LPG tank
Filling Medium	Liquefied Petroleum Gas
Working temperature	-40~50 °C
Volume:	5,000Liters
Tank material:	Q345R
Tank diameter:	1600mm
Tank thickness:	10mm
End plate thickness:	10mm
Tank length:	As designed
Gas phase	Flange type,DN50/2" or according to customer request
Liquid Phase	Flange type,DN50/2" or according to customer request
Filling gas	Propane(LPG)
Working Pressure:	1.61Mpa
Design Pressure	1.71 Mpa
Testing pressure	2.21Mpa
Corrosion Allowance	1.0 mm
Refilling Accessory
Directly driven by PTO(easy for future maintenance)	-
LPG Pump	Chinese brand CLW 15-5
	Inlet 2" NPT and Outlet 2" NPT
	Flow rate :15.5 m3/h
	780 r/min for rotation speed
LPG Flow meter	TSC-50 model
	Showing filling volume
	Inlet/Outlet 2"/DN50
	Maximum Capacity:76~380lpm
	With Mechanical Register, strainer, air eliminator, Diff. Valve and Back Check Valve
	with Ticket Printer.
LPG dispenser	English remarks with printer for receipt
	Chinese top brand-JINGDA
	For measuring filling weight from truck to cylinders
	offer receipt to clients
	Designed at back of truck
	4 meters refilling hose
Filling hose	15M,retractable with REGO adapter for small tank refilling
Level Gauge	Rochester level gauge or Chinese brand
Safety Valve - Model No.	A412F-25-16
Safety Valve - Type	Built-in
Safety Valve - Nominal Pressure	2.5 Mpa
Safety return valve	1 PC
Pipeline safety valve	1 PC

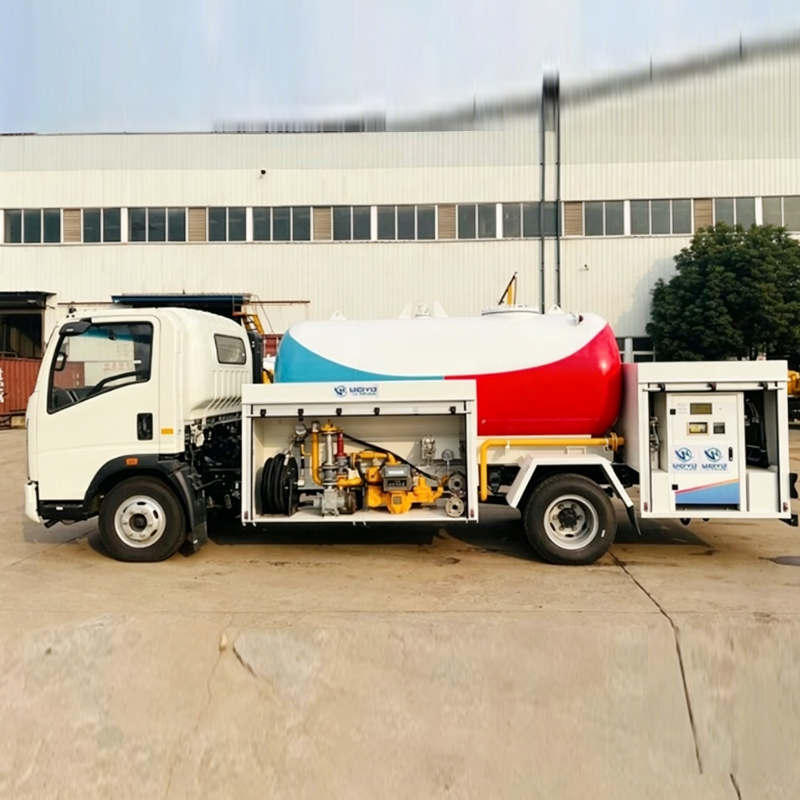

Equipment and Valve Box	Located at side of LPG bobtail (opposite driver's side)
Equipment and Valve Box	Strong design with rolling off cabinet
Manhole	DN450
Thermometer	1 pc, WTQ-280
Pressure Gauge	2 pc, YN-100T
Emergency shut off Valve	2 pcs with switch inside valve box and at rear of truck
Fender	Steel
